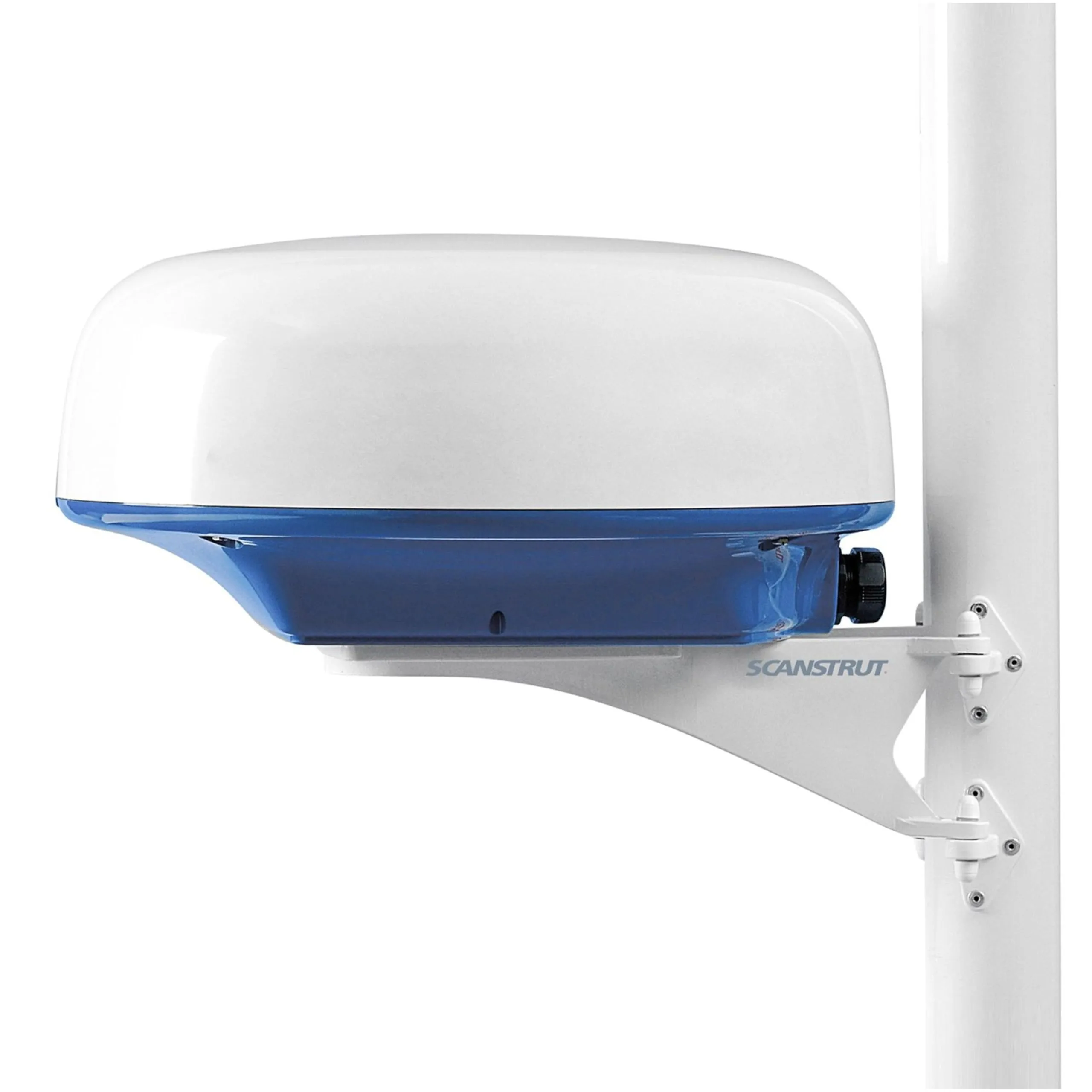

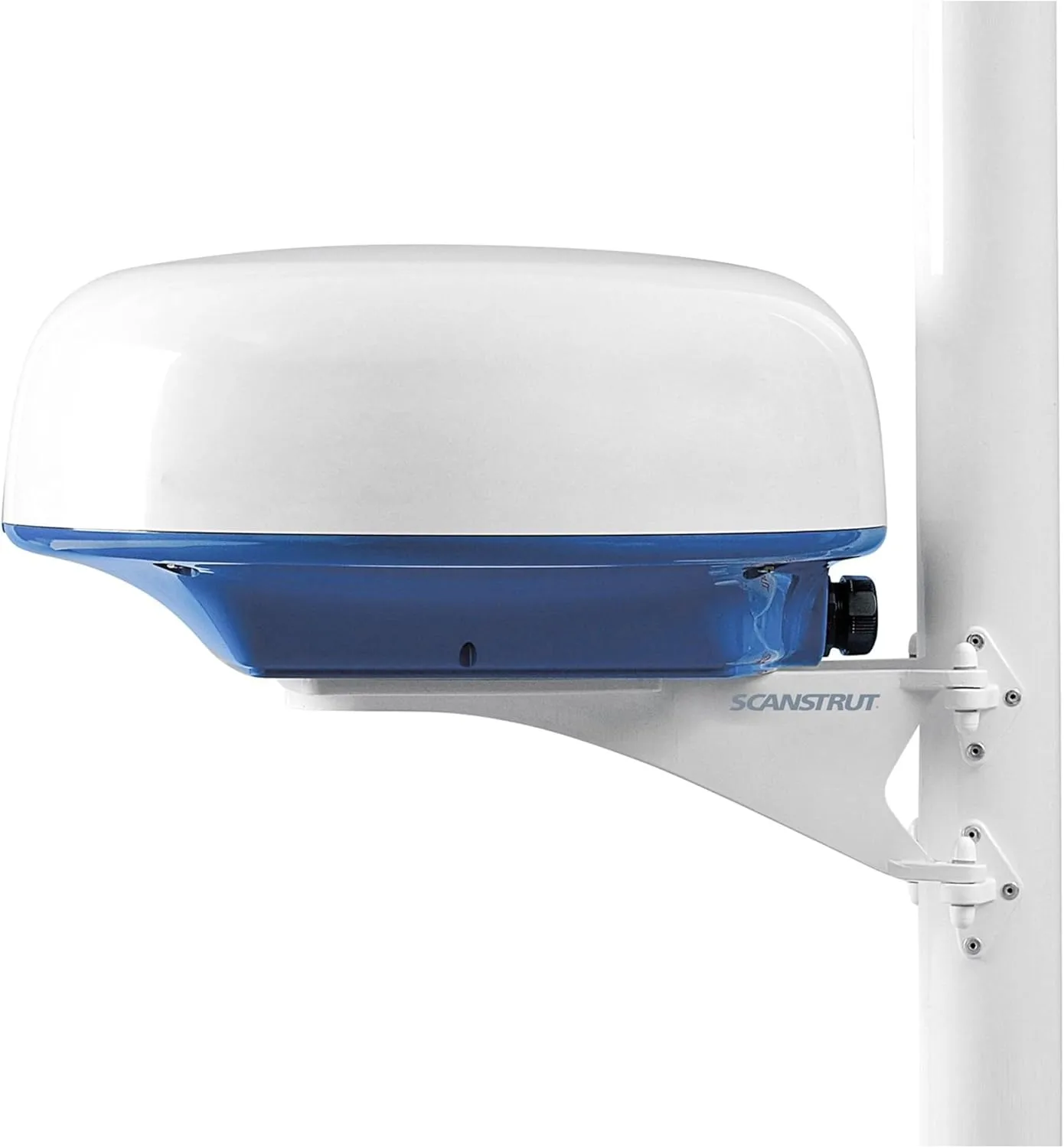

Scanstrut SC12 Mast Mount - Medium
Customize
Mast Mounts Still the first choice for boat owners the world over, Scanstrut Mast Mounts are the ultimate solution for mounting radars on yachts masts. Raising the antenna clear of any obstructions or interference, the mast mount is a classic and reliable installation. Features Easy and quick to install with all fastenings supplied Attached to mast by four swivel feet matching the profile of any mast 12 point fixing using highest quality Monel rivets for a secure installation Nylon washers for all fastenings to protect paint finish Waterproof cable grommet included to seal cable entry into mast Materials Marine grade 6082 aluminium Polyester powder coated for a durable and gloss white finish Kit includes 1 x Mast Mount 4 x Swivel mounting feet 1 x Complete fastening pack Fits: Furuno models: 1712,1715,1721,1722,1723,1724,1823,1824,DRS2D Lowrance model: LRA 1500, Construction: Powder Coated Aluminum , Type: Mast Mount Scanstrut SC12 Mast Mount for Radomes and Small Satcom/TV Antennas - Medium. Independently attaches scanner to mast; antenna extends minimum distance from mast; 12 point fixing using high quality Monel rivets; attaches to mast with four swivel feet matching a variety of mast profiles.
- Independently attaches scanner to mast in case an accident damages the installation
- Antenna extends only minimum distance from the front of the mast
- 12 point fixing using high quality monel rivets
- Attaches to mast with four swivel feet, matching a variety of mast profiles
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | Plastic |
| Outer Material | Polyester powder coated |
| Product Details | |
| Construction | Powder Coated Aluminum |
| Included Components | Scanstrut SC12 Mast Mount for Radomes and Small Satcom/TV Antennas - Medium |
| Number of Items | 1 |
| Proposition 65 Warning | True |
| Style | Scanstrut SC12 Mast Mount for Radomes and Small Satcom/TV Antennas - Medium |
| Type | Mast Mount |
| Warranty | Warranty |
| Sizing & Dimensions | |
| Height | 5.51 inches |
| Length | 16.93 inches |
| Product Dimensions | 16.93 x 7.87 x 5.51 inches |
| Size | No Size |
| Weight | 3.52 pounds |
| Width | 7.87 inches |
| Technical Specifications | |
| Item Dimensions Lx Wx H | 16.93 x 7.87 x 5.51 inches |
| Item Package Dimensions L x W x H | 16.93 x 7.87 x 5.51 inches |
