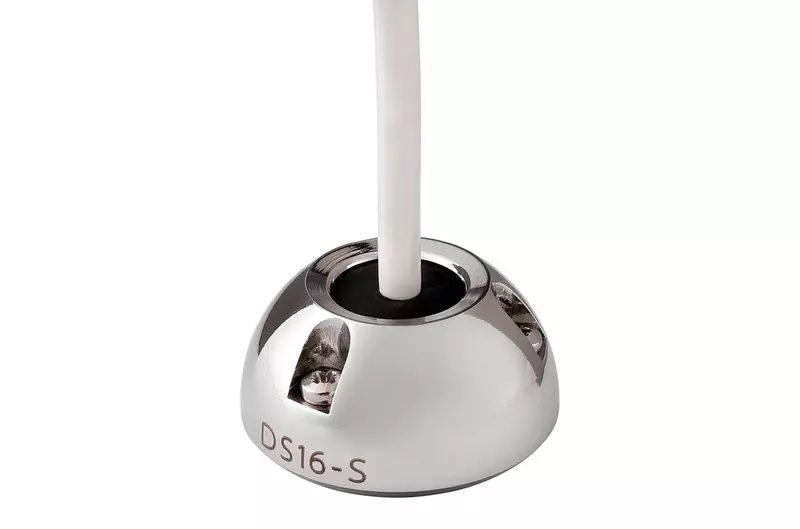

Scanstrut DS16-S Mini Cable Seal for Connectors to 0.63" and Cables 0.08"-0.35" - Stainless Steel
Customize
DS16-S Vertical Cable Seal - Stainless Steel. Scanstrut premium IP68 waterproof cable seal provides easy fit cable routing that cuts down your installation time and is the only guaranteed and proven watertight installation for your antenna and navlight cables. Features: Watertight installation - 100% waterproof with an IP68 rating. Easy and reliable installation - each unit supplied with both pre-drilled and blank inner seals to make your installation as easy as possible. No Need to Remove Cable Connectors - split-seal option does not require connector removal during install. Multi-Functional Dome Shape - the aesthetic dome-shaped profile provides a stronger, impact-resistant design and outer dome provides additional water shield. Technical Specifications: Fits cable size (diameter) - .08" to .31" (2 - 8 mm). Fits connector size up to .63" (16 mm) in diameter. Height - .75" (19 mm). Color - Stainless. Orientation - Vertical. Material - Stainless Steel. In the Box: Cable seal. Mounting hardware. Installation manual. *Sold as an Individual, Type: Deck Seal.
- 316 Stainless Steel
- Aesthetic dome-shaped profile provides a stronger, impact-resistant design
- Split-seal option does not require connector removal during install
- Captive nuts make for easy assembly and also allow reliable repeat installations
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | Stainless Steel |
| Outer Material | Stainless Steel |
| Product Details | |
| Included Components | Scanstrut DS16-S Mini Cable Seal for Connectors to 0.63" and Cables 0.08"-0.35" - Stainless Steel |
| Installation Type | Screw-In |
| Model Name | Scanstrut DS16-S Mini Cable Seal for Connectors to 0.63" and Cables 0.08"-0.35" - Stainless Steel |
| Number of Pieces | 1 |
| Type | Deck Seal |
| Sizing & Dimensions | |
| Height | 1 inches |
| Item Package Dimensions L x W x H | 7.87 x 3.78 x 1.18 inches |
| Length | 6 inches |
| Product Dimensions | 6 x 4 x 1 inches |
| Size | No Size |
| Weight | 4 ounces |
| Width | 4 inches |
| Technical Specifications | |
| Warranty | Warranty |
