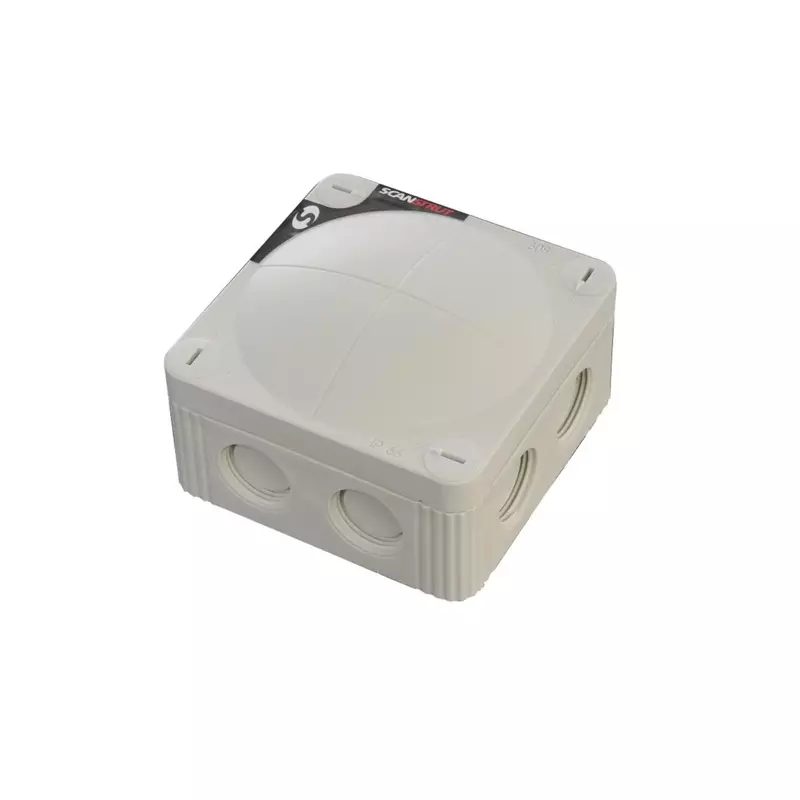

Scanstrut SB-8-5 Waterproof Electrical Junction Box - 5-Way
Customize
SB-8-5 Junction Box Scanstrut's SB-8-5 Junction Box is perfect for installations if you need to create a waterproof connection for multiple electrical cables. Heavy-duty junction box manufactured from marine grade polypropylene and with features 5 screw-down terminals. Depending on the number of terminations required the terminal blocks can be individually fitted or blocked together. Supplied with 5 modular terminal blocks. Offering 5 terminations. Cables push fit into the terminals and are secured with a sprung leaf retention system that does not damage the wire. The terminal can be removed for easy fitting of cables. Features: Provides 5 screw-down terminals. Capacity for up to eight (8) cables to enter the box. Watertight Installation - Cables are quickly routed into the box through an IP66 elastomeric membrane, guaranteeing protection against water ingress. Upgradable to IP68 with use of SB-2G Cable Seals (sold separately) Technical Specifications: Maximum cable size (diameter) - .50" (12 mm) Maximum wire size - 16/1.5 to 11/4 Dimensions (L x W x H) - 3.35" x 3.35" x 2" (85 x 85 x 50 mm) Five (5) terminal block w/400 V rating and 32 A Color - Grey Material - Marine grade polypropylene In the Box: Junction box w/five (5) screw-down terminal block Mounting hardware Installation manual *Sold as an Individual, Type: Junction Box PRODUCT DESCRIPTION The heavy-duty junction box is crafted from marine-grade polypropylene and features five screw-down terminals. For IP67 installation, additional SB-2G cable seals are required. The box is supplied with five modular terminal blocks, offering five terminations. Depending on the number of terminations needed, the terminal blocks can be individually fitted or connected together. Unlike other boxes that leave terminal blocks floating, which can risk loose connections, our design ensures a secure fit. The cables are easily pushed into the terminals and are secured using a sprung leaf retention system that does not damage the wire. The terminal can be removed for easy cable fitting, and it clips securely into the base of the box. It is supplied with self-tapping screws for installation and includes an installation bracket for quick and easy fitting and removal for inspection. SET CONTAINS: Junction Box
- Dimensions are 85 x 85 x 50mm (3.35 x 3.35 x 2 inches)
- Additional SB-2G Cable seals required for IP67 installation
- Features 5 screw-down terminals, offering 5 terminations
- Manufactured from marine grade polypropylene
Specifications:
| Materials & Construction | |
| Color | White |
| Material | Glass,Plastic |
| Outer Material | Glass,Plastic |
| Product Details | |
| Exterior | Plastic |
| Finish Type | Glass |
| Installation Type | Screw-In |
| Style | Scanstrut SB-8-5 Waterproof Electrical Junction Box - 5-Way |
| Type | Junction Box |
| Sizing & Dimensions | |
| Height | 1.97 inches |
| Length | 6.69 inches |
| Product Dimensions | 6.69 x 4.72 x 1.97 inches |
| Weight | 4.5 ounces |
| Width | 4.72 inches |
| Technical Specifications | |
| Maximum cable size (diameter) | .50" (12 mm) |
| Maximum wire size | 16/1.5 to 11/4 |
| Specification Met | Ip67 |
| Terminal Rating | 400 V rating and 32 A |
