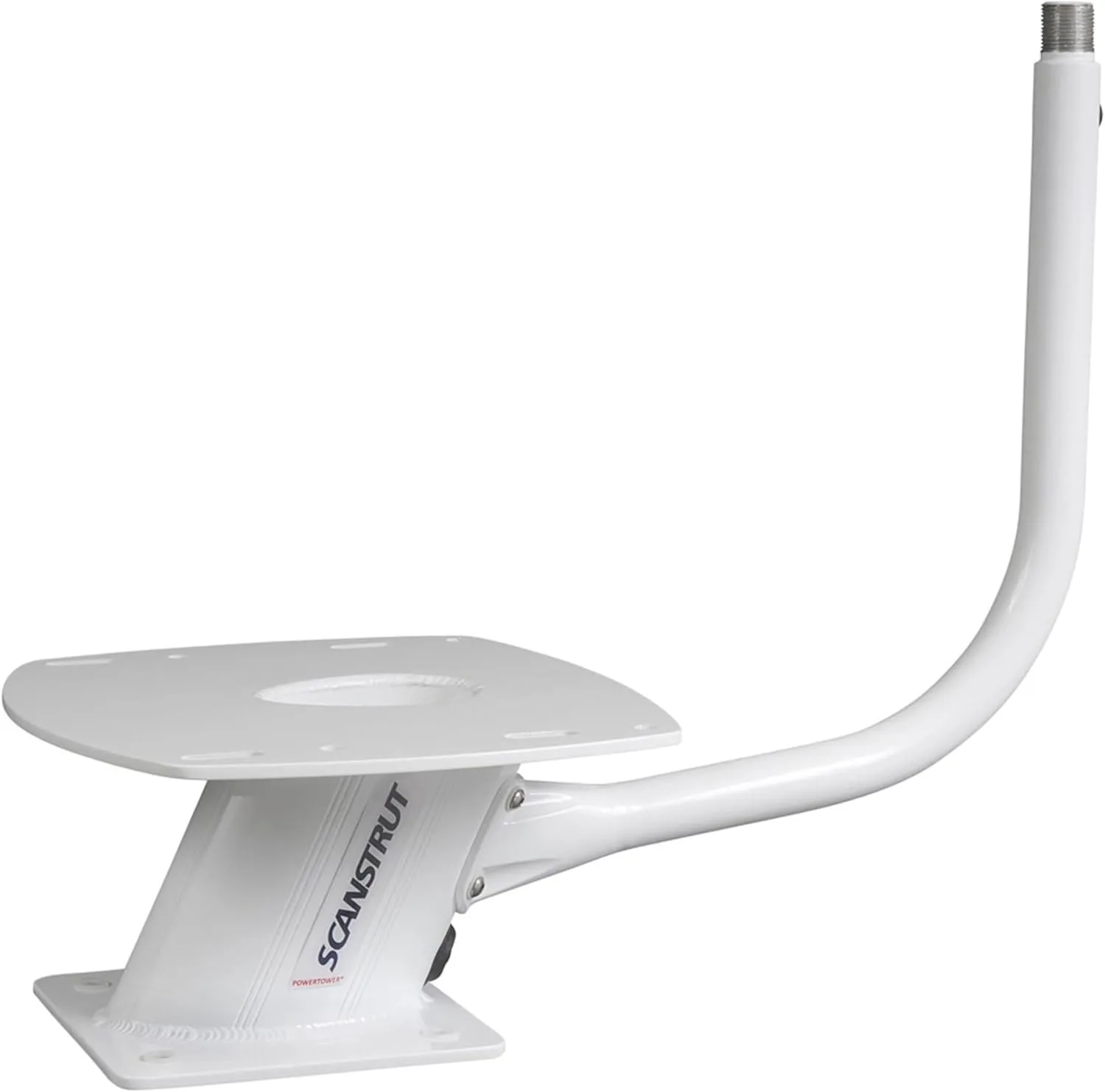

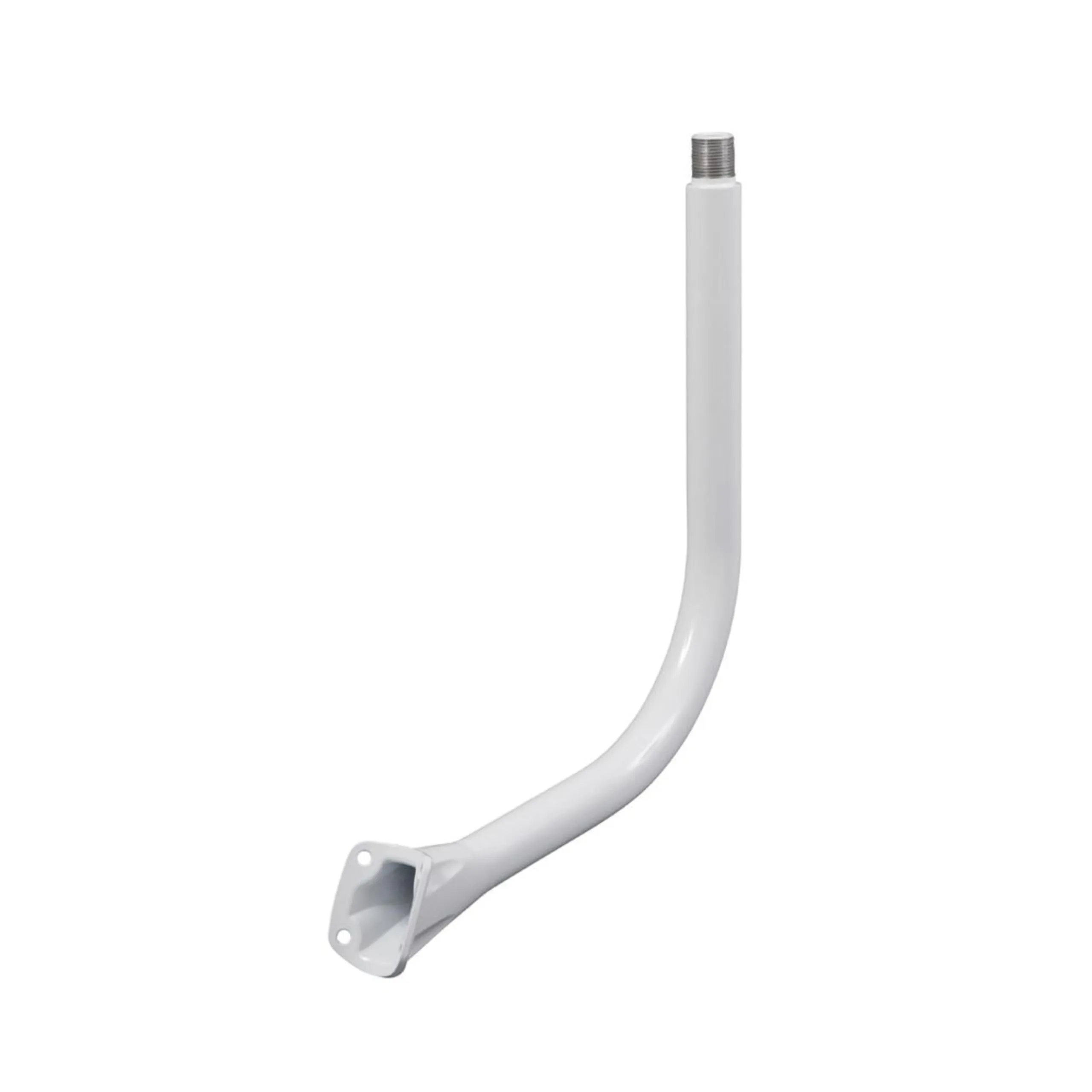

Scanstrut APT-GPS-01 PowerTower Center Mounted Bar f/GPS/VHF/Navtex Antenna
Customize
APT-GPS-01 PowerTower Center Mounted Bar for GPS/VHF/Navtex Antenna. Mounts GPS, VHF and Navtex antennas above the radar for maximum visibility and performance. Works with standard 1" x 14 TPI thread. Compatible with Scanstrut aft leaning PowerTower radar mounts. Designed for installation of GPS and 'whip' type VHF, HF/SSB, AM/FM, and cellular antenna of up to 1m in height. All mounting holes predrilled for easy retrofit installation; attach using mounting bolts (no extra fastenings required). Cables run internally via a watertight seal. Construction: 6082 aluminum with polyester powder coat for a durable gloss white finish. In the box: Antenna bar, Instruction manual. Sold as an individual. Features include predrilled holes, internal cable routing and compatibility with PowerTower mounts.
- Polyester powder coat for a durable and gloss white finish
- 6082 Aluminum construction
- Designed for use with APT-150-01 and APT-250-01 only
- New Central GPS/ VHF Antenna Bar
Specifications:
| Materials & Construction | |
| Color | White |
| Material | 6082 Aluminum |
| Outer Material | Polyester powder coat |
| Product Details | |
| Antenna | GPS, VHF, Navtex, Cellular |
| Construction | Aluminum |
| Global Trade Identification Number | 05060114795433 |
| Included Components | Scanstrut APT-GPS01 Central GPS/VHF Antenna Bar |
| Number of Channels | 2 |
| Number of Items | 1 |
| Style | Scanstrut APT-GPS-01 Central GPS Thread for Aft-Leaning PowerTowers |
| Type | Mounting Brackets |
| Sizing & Dimensions | |
| Height | 4.65 inches |
| Length | 21.61 inches |
| Product Dimensions | 21.61 x 15.43 x 4.65 inches |
| Size | No Size |
| Weight | 1.76 pounds |
| Width | 15.43 inches |
| Technical Specifications | |
| Warranty | Warranty |
