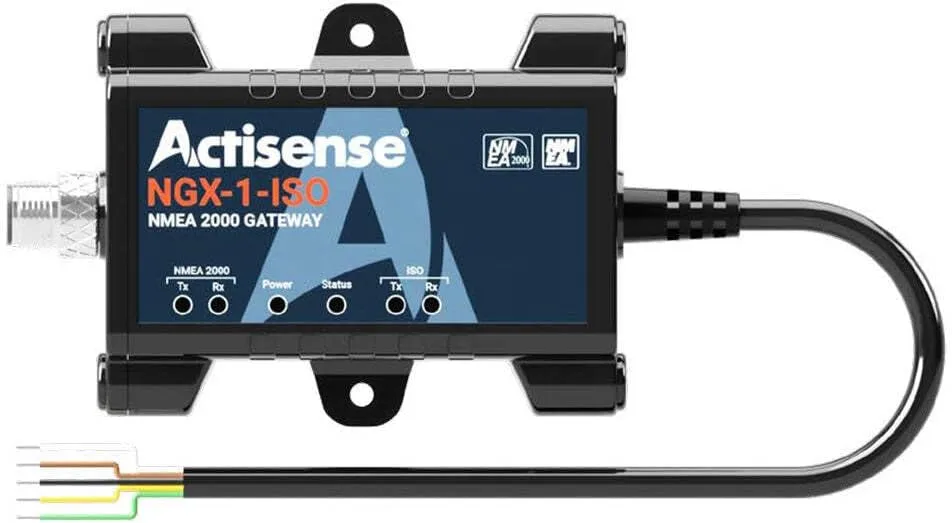

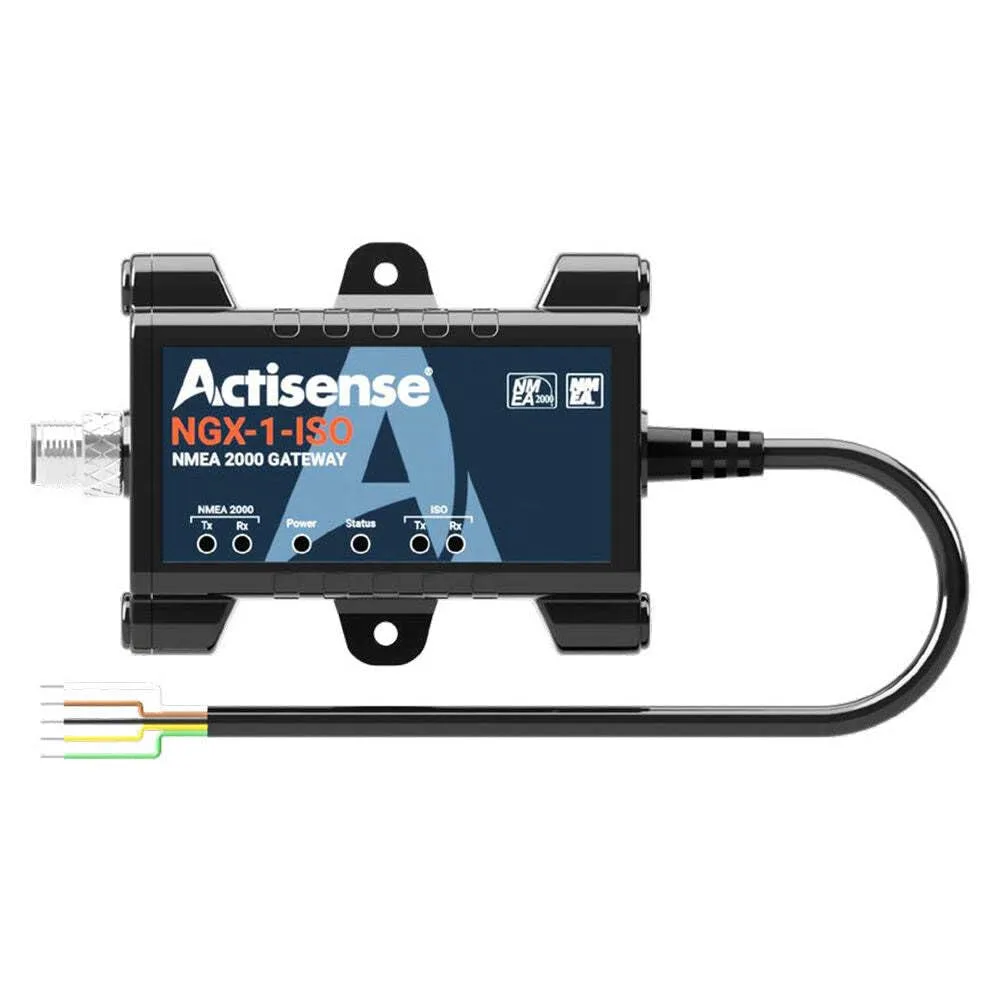

Actisense 0183 to N2K Gateway w/PC Interface, ISO Connection
Customize
The Actisense NGX-1-ISO is an intelligent NMEA gateway combining PC interfacing and NMEA data conversion in a single unit. Configure the NGX-1 to operate as an NMEA 2000 PC interface or as a bi-directional NMEA 0183/NMEA 2000 conversion gateway. It supports every available PGN in the NMEA 2000 standard and has the largest conversion library available. Features include OPTO-isolated input and ISO-Drive output, support for baud rates up to 230,400, advanced configuration via Actisense Toolkit, diagnostic LEDs, galvanic isolation to USB, IsoDrive tested to 1000V, IP67 protection, and extensive certifications (NMEA 2000 Certified, IEC 61162-1/2 compliance, RoHS/REACH). Supplied with a 0.75 m cable (approx. 2.4'), supports Fast Heading at 10Hz, firmware upgradeable on-bus, and includes powerful network diagnostic tools (Actisense NMEA Reader and Toolkit). 3 year guarantee, extendable to 5 years upon registration.
- Great Product
Specifications:
| Materials & Construction | |
| Color | Black |
| Housing Material Body | Flame retardant Polycarbonate |
| Housing Material End Caps | Flame retardant PBT |
| Material | Plastic |
| Product Details | |
| Included Components | Great Product |
| Model Name | NGX-1-ISO |
| Number of Items | 1 |
| Special Feature | Waterproof, Shakeproof. |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 0.04 inches |
| Item Dimensions Lx Wx H | 6 x 6 x 0.04 inches |
| Item Package Dimensions L x W x H | 6 x 6 x 2 inches |
| Length | 6 inches |
| Product Dimensions | 6 x 6 x 0.04 inches |
| Product Weight | 0.35 pounds |
| Weight | 5.60 ounces |
| Width | 6 inches |
| Technical Specifications | |
| Approvals and Certifications | NMEA 2000 Certified; Meets IEC 61162-1 & 61162-2; RoHS and REACH compliant; Module Certification - KCC / BQB / IC / Wi-Fi / NCC / MIC / FCC DSS / FCC DTS / SRRC / CE; EN 60945:2002, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4; EN 300 328 V2.2.2; FCC Part 15b; ICES-003 Iss 7 |
| Cable Length (Feet) | 2.4' |
| Data Interface | Nmea 0183 |
| ISO Port | Compatibility - Full NMEA 0183, RS232 & RS422 compatibility. RS485 Listener compatible; Speed/Baud Rate - 4800 to 230400 Baud; Output Voltage Drive - >= 2.1V (differential) into 100Ω; Output Current Drive - 20mA max. |
| Isolation | NMEA 2000 Port to ISO Port - Uses IsoDriveTM, Hi-Pot tested to 1000V; NMEA 2000 Port to USB Port - Galvanic Isolation, Hi-Pot tested to 1000V |
| NMEA 2000 Port | Speed / Baud Rate - 250kbps; Connectivity - M12 Male (A coded) |
| Power Supply | Supply Voltage (NMEA 2000 Port) - 9 to 30V DC; Supply Current (NMEA 2000 Port) - 62mA @ 9V DC; Load Equivalent Number (LEN) - 2 |
