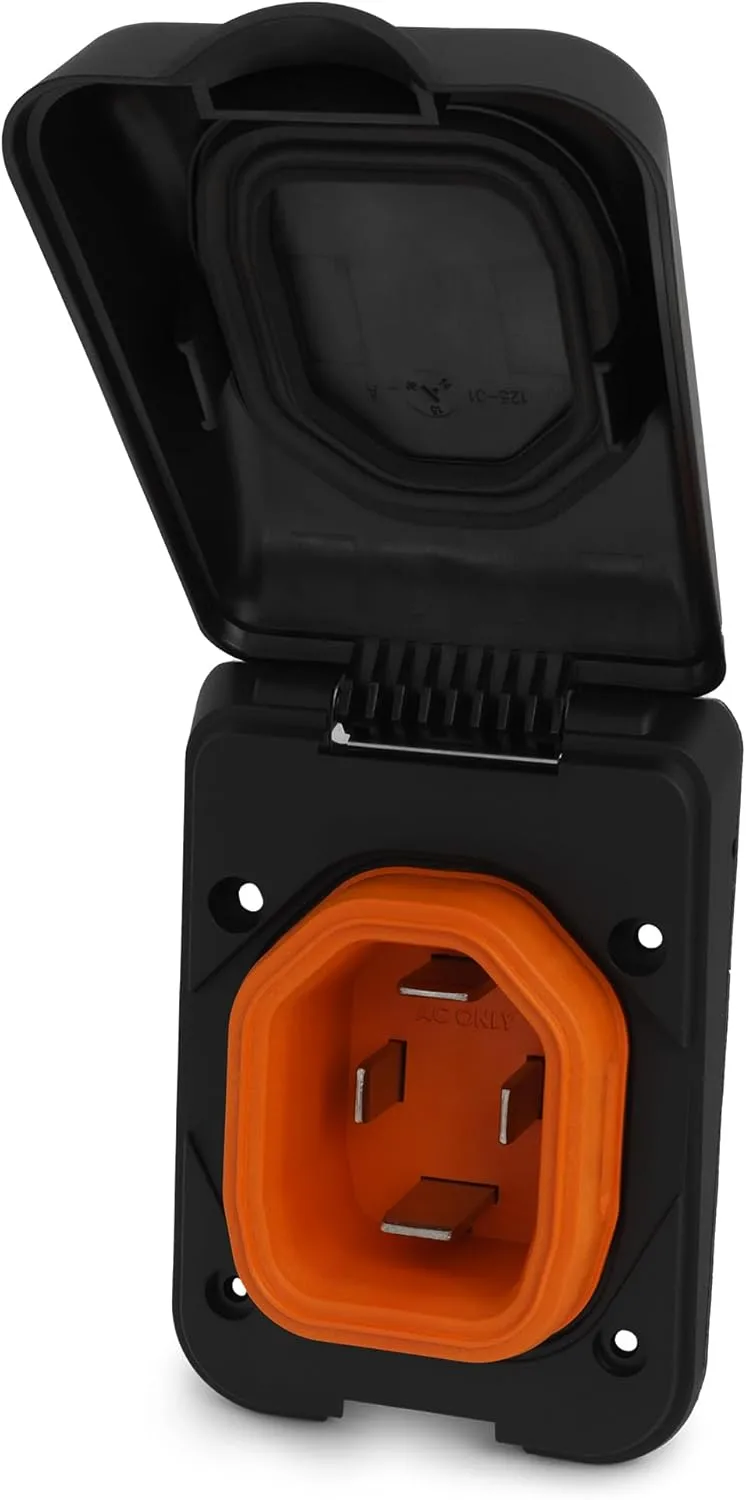

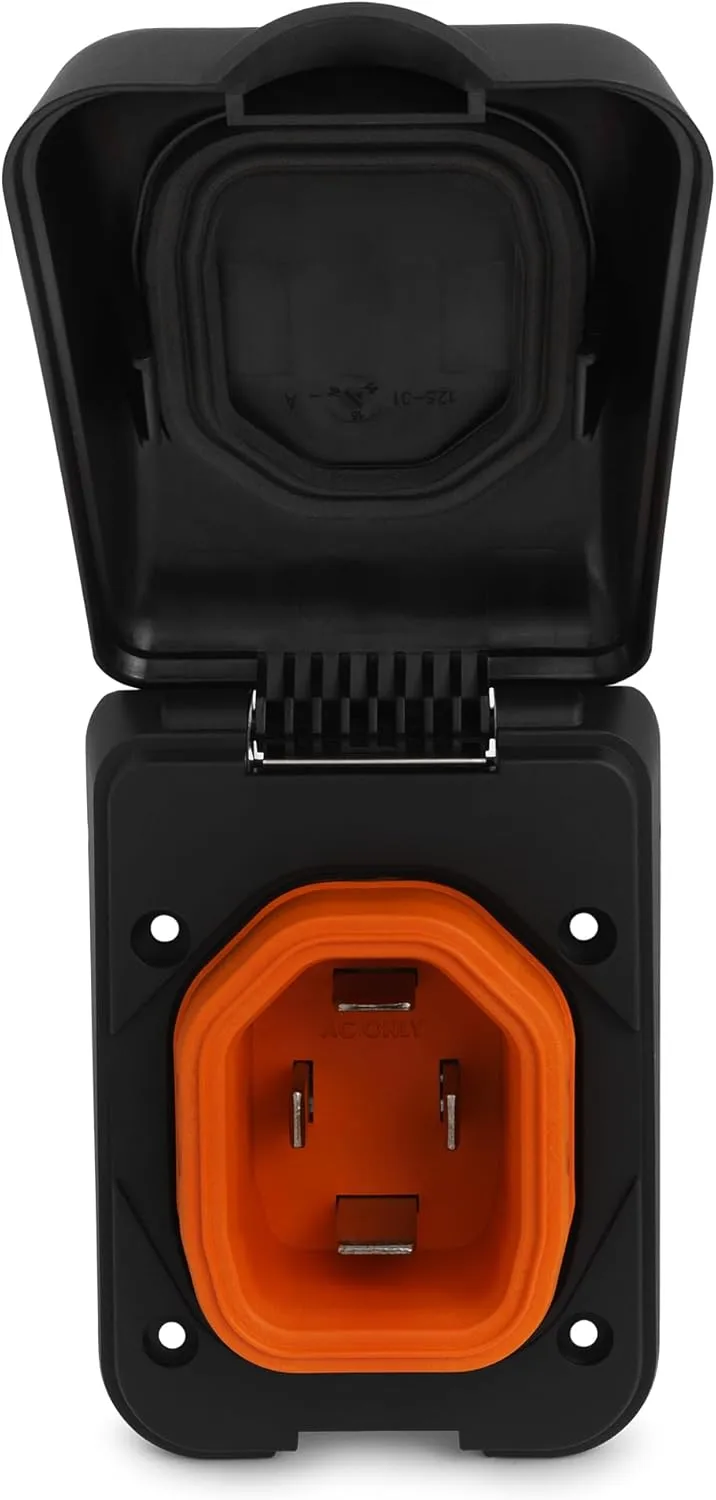

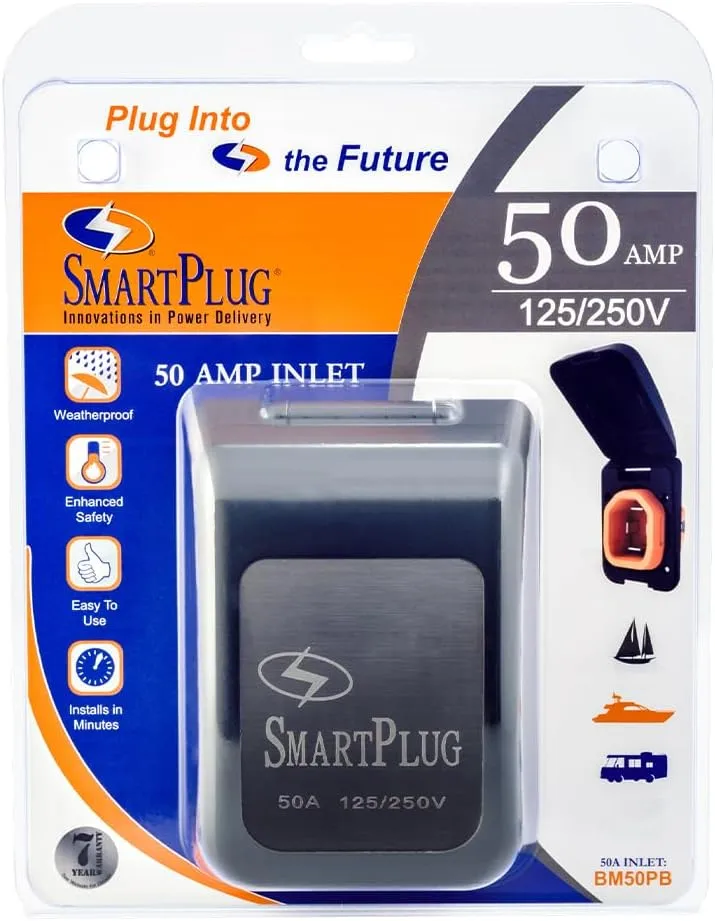

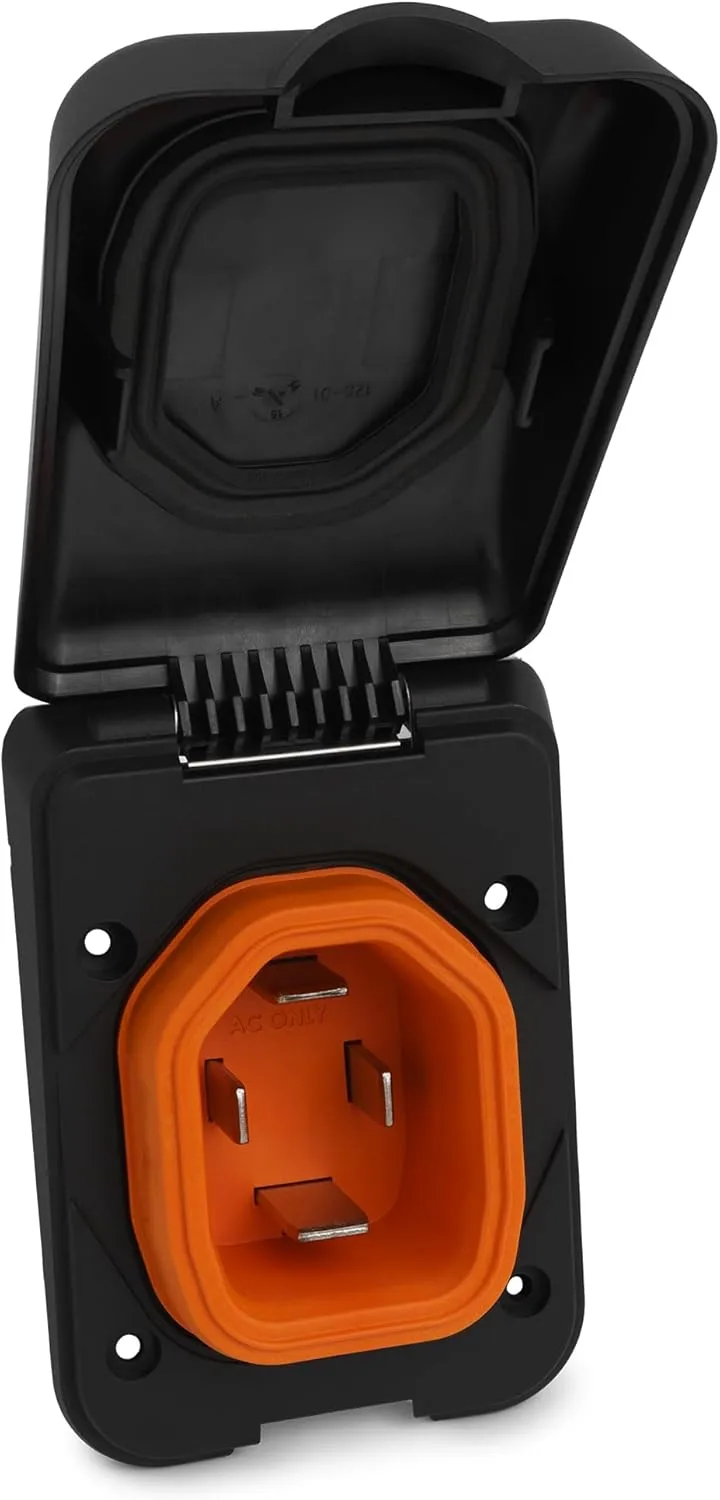

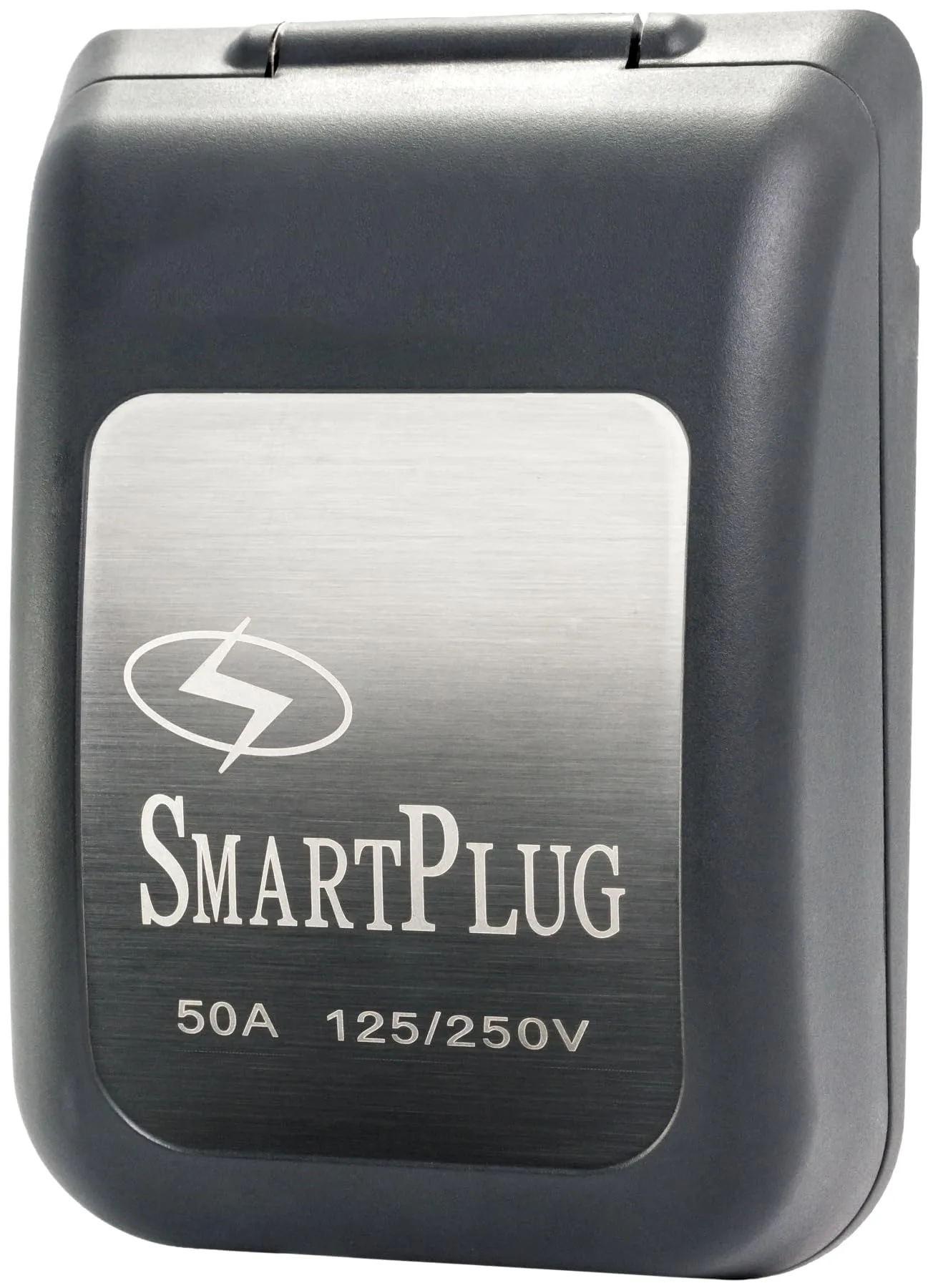

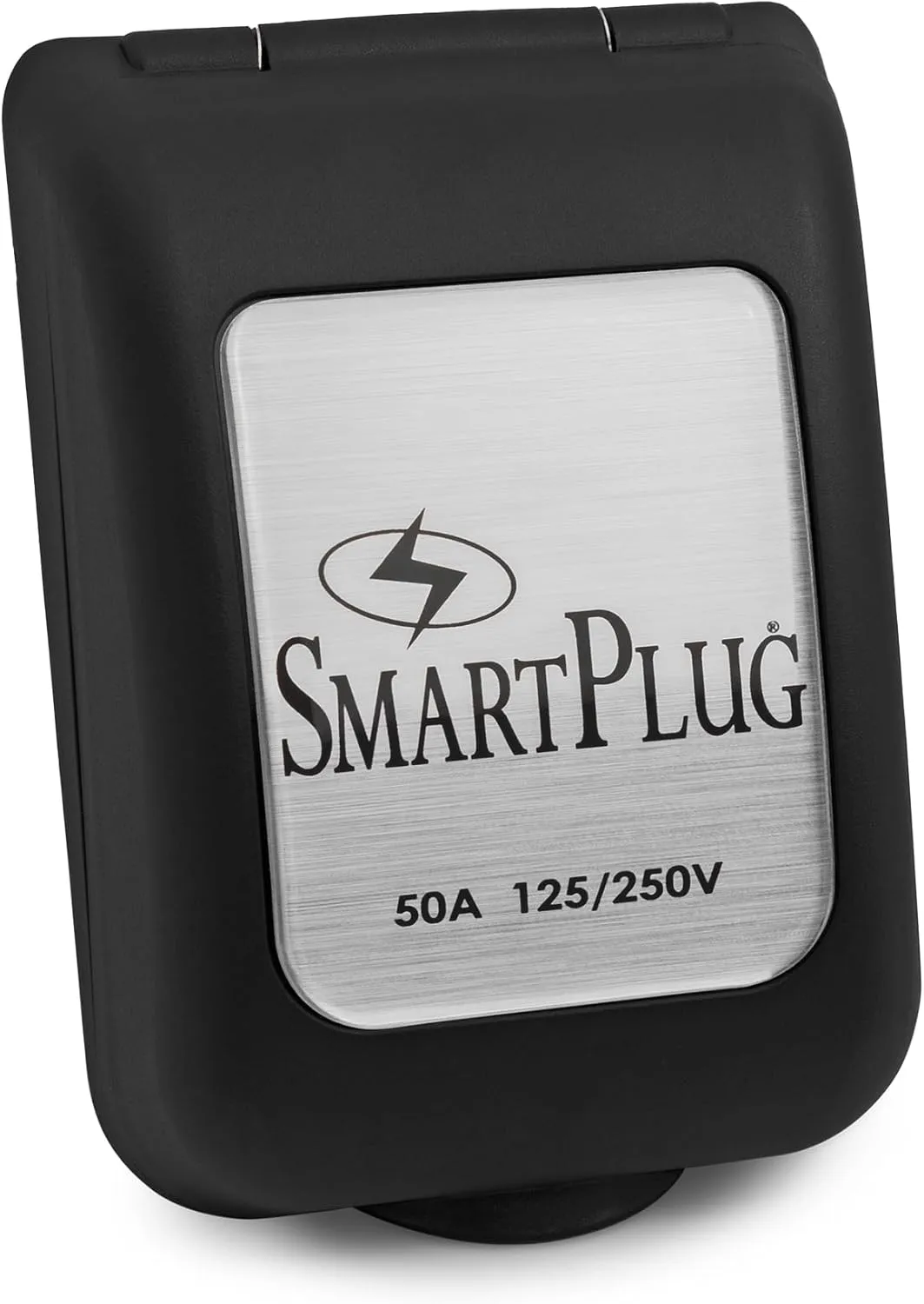

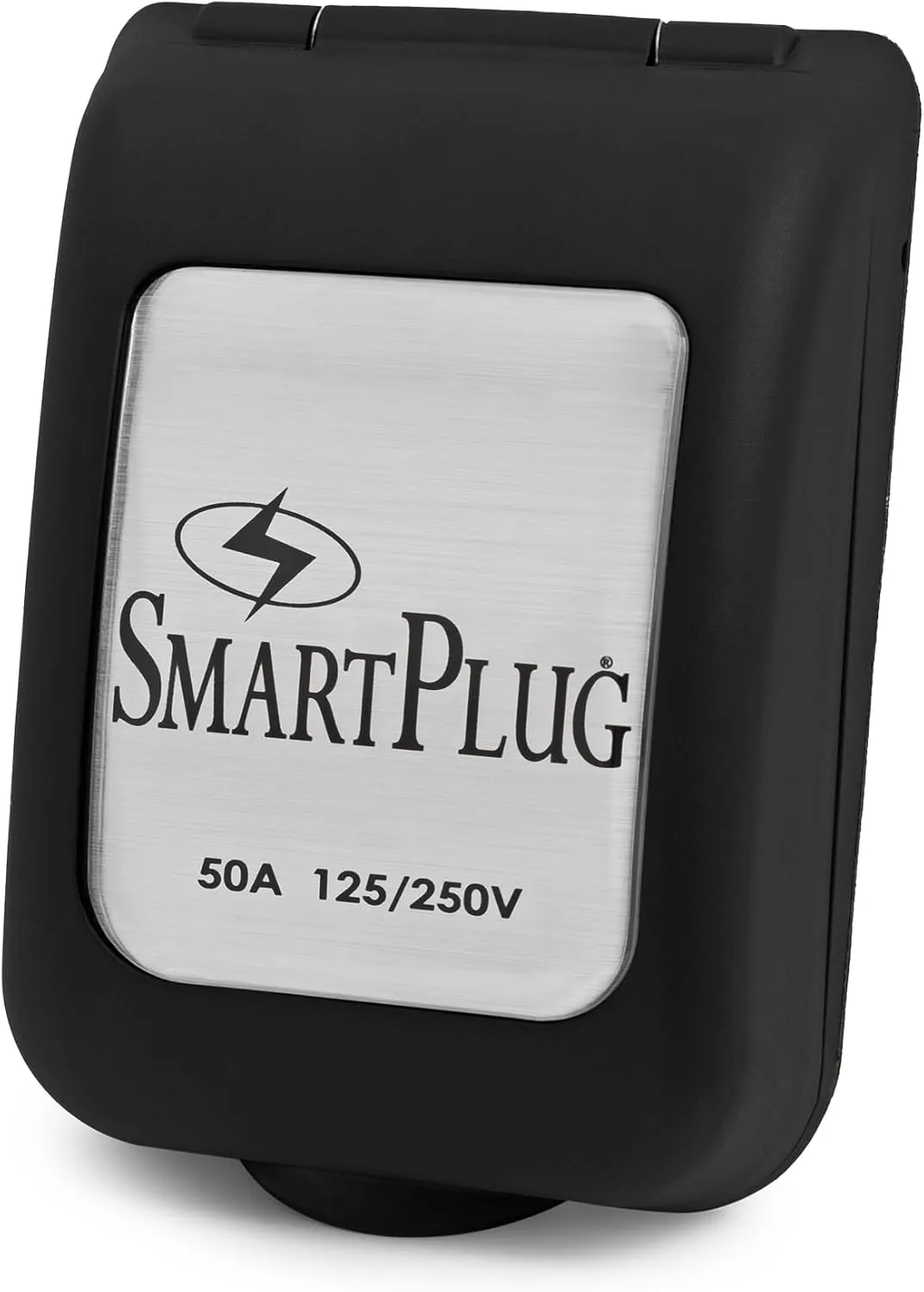

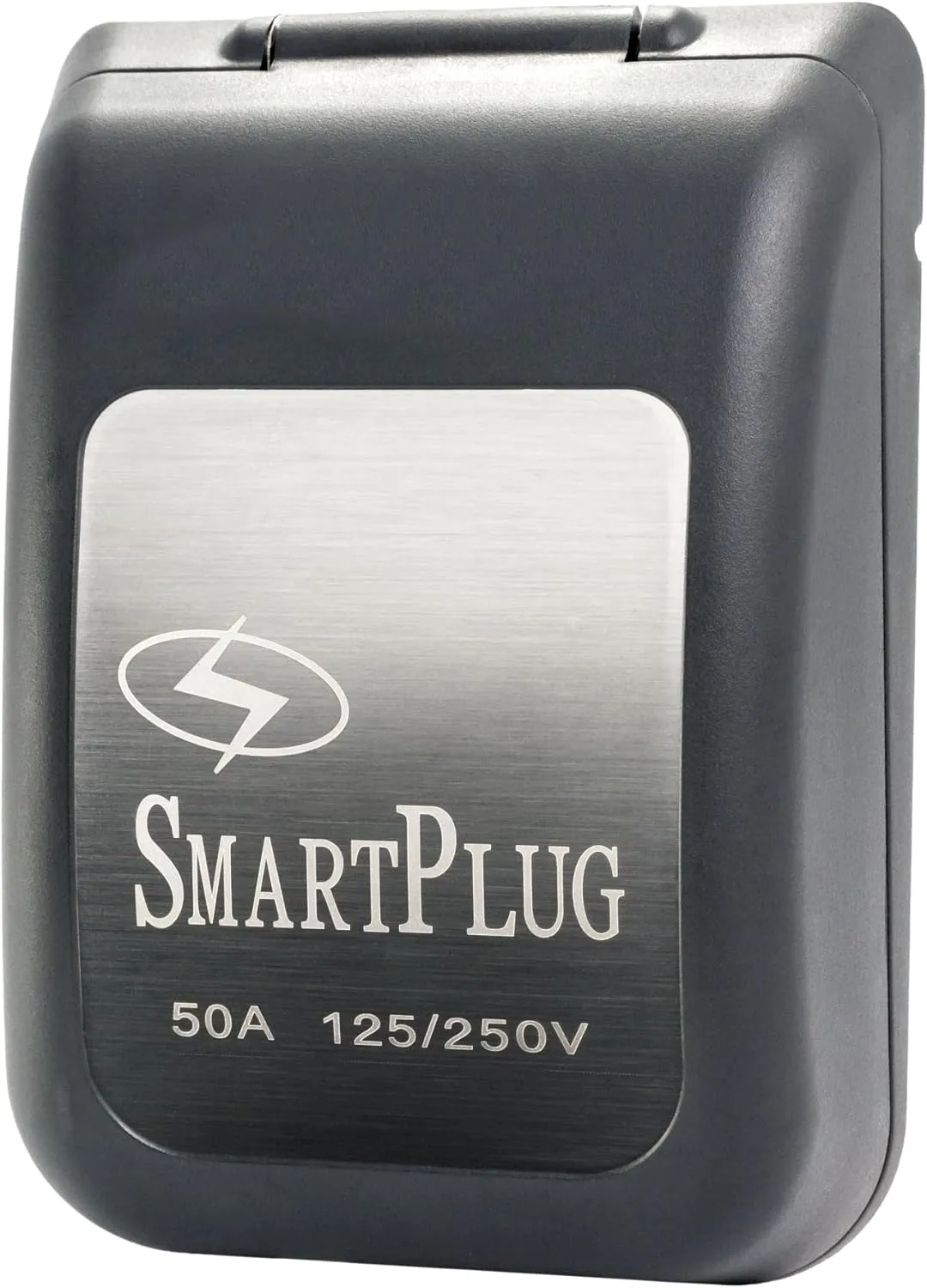

SmartPlug BM50PB Non-Metallic Inlet and Cover Assembly - 50 Amp, Black
Customize
50 AMP Male Non-Metallic Inlet Cover - Black. SmartPlug’s 50 AMP 125/250 V inlets provide significantly more electrical contact area to reduce overheating versus twist-type connectors. The solid sleeve connection and weatherproof seals deliver superior moisture protection. Side clips and a multi-point locking system secure the plug in the inlet, minimizing stress on contacts from cord movement. Mounting flange holes match existing inlets for quick replacement; typical installation completes in minutes. Features include improved conductivity for high-amperage demand, push-in design for correct orientation even in the dark, weatherproof gaskets, and multi-point locking. Sold as an individual unit. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Quick and Easy Installation - Inlet mounting flange holes match twist-type holes for an installation that is typically finished in 30 minutes
- Weather Resistant Seals - Multi-fin silicone gaskets installed in the inlet cover and the plug body eliminates moisture penetration
- Multi-Point Locking System - Side clips and inlet cover lock the plug body securely into the inlet which eliminates any stress on the electrical components by movement of the power cord
- Ease of Use - No twist required, the unique plug body shape and push-in design means it only goes in the right way every time - even in the dark
- Eliminates Overheating - Increased pin and clip surface area greatly improves electrical conductivity during high amperage demand
Materials & Construction
- Color:Black Cover
- Material:Plastic
- Outer Material:Plastic
Product Details
- Amperage:50 Amps
- Connector Type:Plug-in
- Model Name:SmartPlug 50 Amp Inlet, White
- Number of Items:1
- Part Number:BM50PB
- Plug Format:Type B
- Style:50 Amp
- UPC:614458746085
- Voltage:125 Volts
Sizing & Dimensions
- Height:3.5 inches
- Length:9 inches
- Product Dimensions:9 x 7 x 3.5 inches
- Size:No Size
- Weight:0.75 pounds
- Width:7 inches
