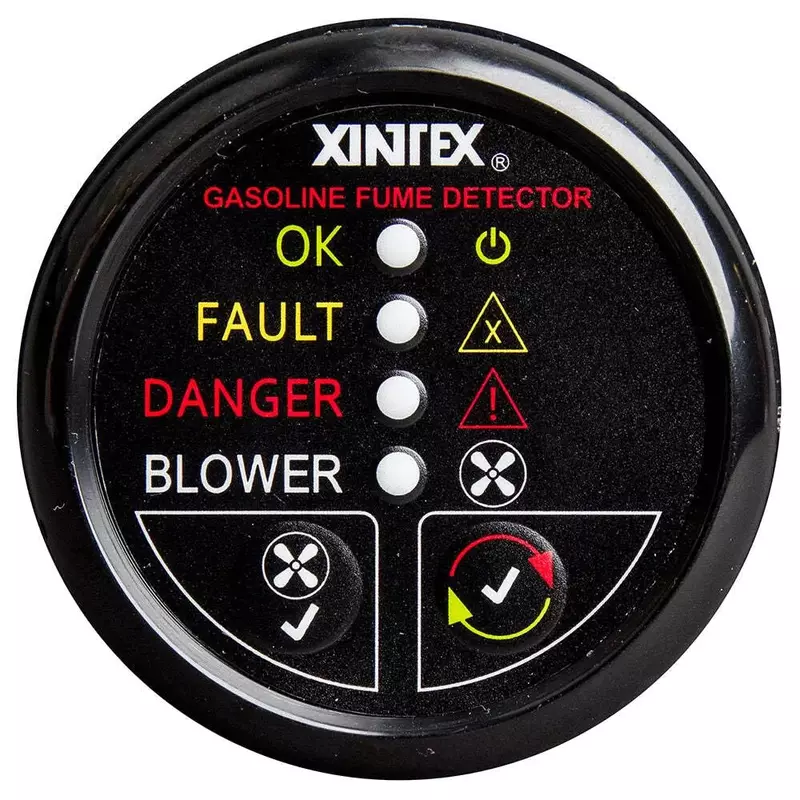

Fireboy-Xintex Gasoline Fume Detector w/Blower Control - Black Bezel - 12V
Customize
Gasoline Fume Detector w/Blower Control - Black Bezel - 12V. The single-channel gasoline fume detector effectively monitors gasoline fumes in engine compartments, fuel tank storage areas, or other locations where gasoline fumes might accumulate. The complete system includes a blower control relay, a sensor, a 20' extension cable, and an instruction manual. Features include simple installation, audible and visual alarm to indicate LEL (Lower Explosive Level) presence, monitoring of one single area, and automatic activation of an onboard bilge blower. Technical notes from manufacturer: Operating Temperature: -40° to 185°F (-40° to 85°C); Current Draw Nominal - 55mA; Current Draw Maximum - 95mA; Operating Voltage - 9 to 30V DC; Alarm Horn - 68 dB; Display Style - Round with Chrome Bezel; Display Dimensions - 2-3/16" (5.6 cm) round; Cutout Dimension - 2-1/16" (5.2 cm) round hole. In the box: Fume detector, fuel sensor x1, 20' extension cable x1, blower relay x1, instruction manual. Sold as an individual. Blower Relay: Yes. Fume Type: Gasoline. Generator Shutdown: No. Sensors Included: 1. Voltage - Input Range (Volts): 9 to 30.
- AFFORDABLE PARTS
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Alarm | Audible |
| Blower Relay | Yes |
| Fume Type | Gasoline |
| Generator Shutdown | No |
| Global Trade Identification Number | 00027131004936 |
| Model | GAS FUME DETECTOR W/SENSOR |
| Model Number | G-1BB-R |
| Number of Items | 1 |
| Sensors Included | 1 |
| Voltage - Input Range (Volts) | 9 To 30 |
| Sizing & Dimensions | |
| Height | 6 inches |
| Length | 18 inches |
| Product Dimensions | 18 x 10 x 6 inches |
| Weight | 1.29 pounds |
| Width | 10 inches |
| Technical Specifications | |
| Alarm Type | Audible |
| Is Discontinued By Manufacturer | No |
