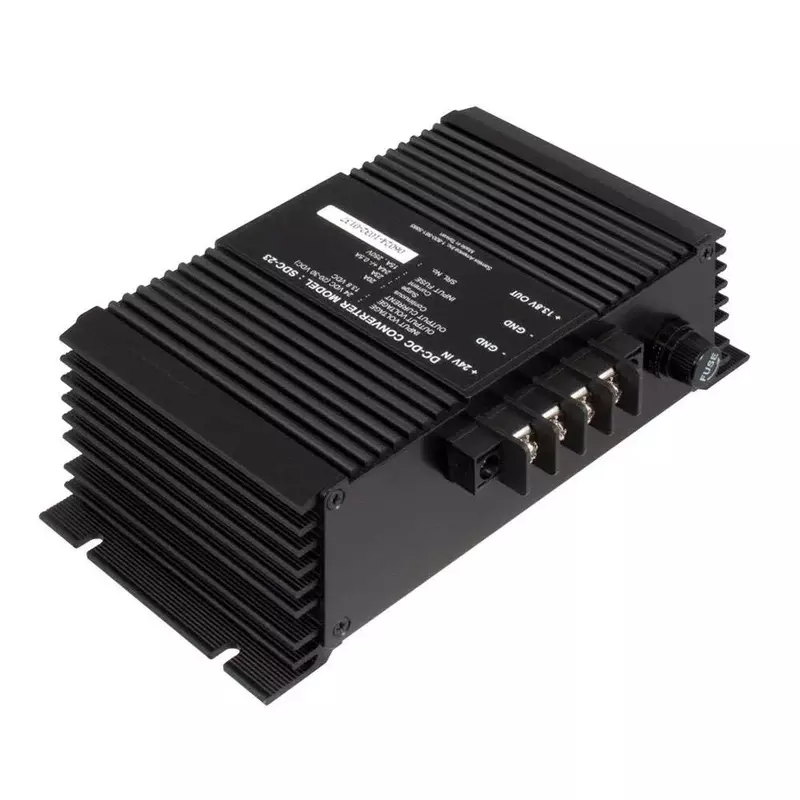

Samlex 20A Non-Isolated Step-Down 24VDC-12VDC Converter

20A Non-Isolated Step-Down 24VDC-12VDC Converter This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 35 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 20 Amps. The SDC-23 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overvoltage/short-circuit protection, temperature compensated current limit, output-side overvoltage protection, input-side overvoltage/ transient protection and input-side reverse polarity protection. The SDC-23 DC-DC converter is designed for heavy duty applications. Features: Advanced switchmode design Mount in almost any location Compact and light weight Reverse polarity protection High efficiency Current limiting circuit Overvoltage crowbar circuit Non-Isolated for negative ground system Specifications: Input: 20-30 VDC Output: 13.8 VDC Amps: 20 Amps Weight: 2.2 (lbs) Weight: 1 (kg) Dimensions: 7.75 x 4.75 x 2.4 (in) Dimensions: 19.7 x 12.1 x 6.1 (cm) Warranty: 2 Year Limited Applications: Earth moving equipment Heavy trucks Buses Marine vehicles CB radios 12 Volt lighting systems AM/FM sound systems WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .
