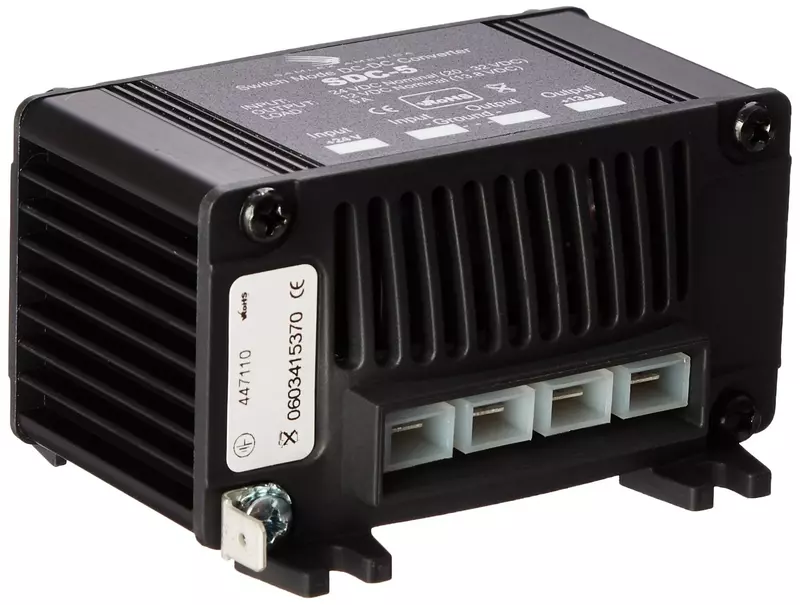

5A Non-Isolated Step-Down 24VDC-12VDC Converter. This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 35 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 5 Amps. The SDC-5 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overvoltage/short-circuit protection, temperature compensated current limit, output-side overvoltage protection, input-side overvoltage/transient protection and input-side reverse polarity protection. Designed for heavy duty applications. Applications include earth moving equipment, heavy trucks, buses, marine vehicles, CB radios, 12 Volt lighting systems and AM/FM sound systems. Great Product.
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Included Components | Great Product. |
| Model Name | SDC-5 |
| Model Year | 2018 |
| Number of Items | 1 |
| Power Source | Battery Powered |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 2.72 inches |
| Length | 3.5 inches |
| Product Dimensions | 3.5 x 1.89 x 2.72 inches |
| Size | One Size |
| Weight | 0.01 ounces |
| Width | 1.89 inches |
| Technical Specifications | |
| Power Source | Battery Powered |
| Warranty Description | Warranty |
