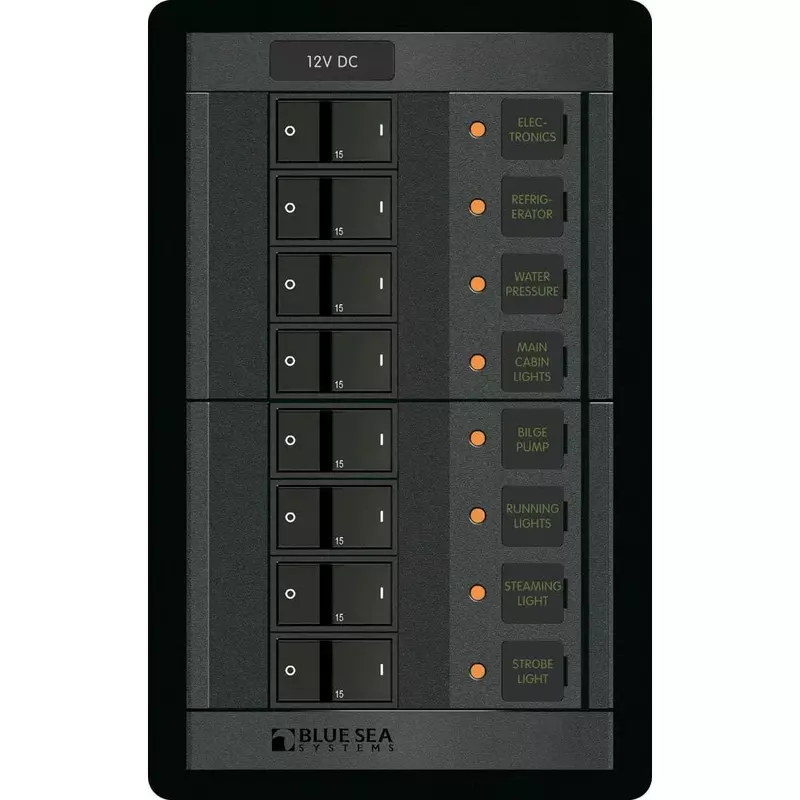

12 Volt DC 8 Position - Vertical. 360 Panel System. 4 to 32 branch circuits with installed 15 Ampere circuit breakers. Available with voltmeters, ammeters, and digital multimeters. Includes 4205-Square Format Label Set and 4205 basic DC label kit (30 black square labels). Features ON indicating LEDs installed in all circuit positions; all circuit label positions are backlit. Positions: 8. Nominal Voltage: 12V DC. Maximum Amperage*: 100A. Height: 7.75" (196.85mm). Width: 4.88" (123.95mm). Depth: 3.00" (76.2mm). Weight: 2.60 lb (1.18 kg). *Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
| Materials & Construction | |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| AC/DC | DC |
| Manufacturer Part No | 1200 |
| Model | PANEL 360 DC 8 POS RR |
| Sizing & Dimensions | |
| Height | 7.75 inches |
| Length | 3 inches |
| Product Dimensions | 3 x 4.88 x 7.75 inches |
| Size | 3"L x 4.88"W x 7.75"H |
| Weight | 2.3 pounds |
| Width | 4.88 inches |
| Technical Specifications | |
| Number Of Circuits | 8 |
| Phase Type | Single Phase |
| Voltage | 12 Volts |
