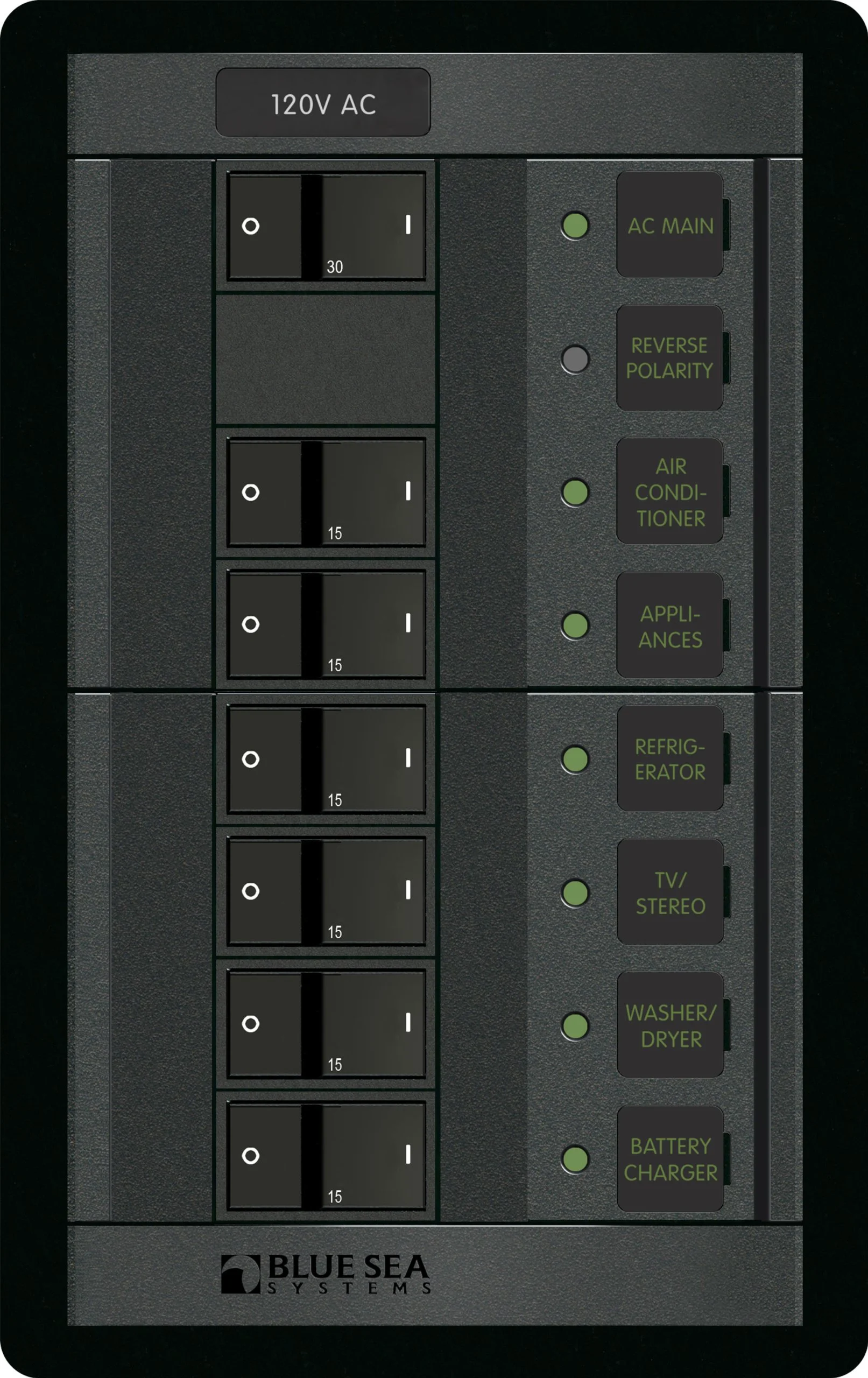

Blue Sea Systems 1202 120V AC Main + 6 Positions - Vertical
Customize
120 Volt AC Main + 6 Position - Vertical. Features: All circuit label positions are backlit "ON" indicating LEDs installed in all circuit positions. Includes 4206-Square Format Label Set. Specifications: Positions: 6 Nominal Voltage: 120V AC Maximum Amperage*: 100A Height: 7.75" (196.85mm) Width: 4.88" (123.95mm) Depth: 3.00" (76.2mm) Weight: 2.70lb (1.22kg) Includes: (6) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A (1) - 4206 - Basic AC Label Kit - 30 Black Square Labels [LABEL] (1) - 7414 - A-Series Flat Rocker Circuit Breaker - Double Pole 30A (Main). WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. AC/DC: AC. Additional marketing and feature content: Includes 4206-Square Format Label Set. "ON" indicating LEDs installed in all circuit positions. One 30A 120VAC Main with 6 installed 15 Ampere circuit breakers. 360 Panel System.
- Includes 4206-Square Format Label Set
- "ON" indicating LEDs installed in all circuit positions
- All circuit label positions are backlit
- One 30A 120VAC Main with 6 installed 15 Ampere circuit breakers
- 360 Panel System
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | Plastic |
| Product Details | |
| Ac/dc | Ac |
| Included Components | Great Product |
| Model Name | 1202 |
| Number of Items | 1 |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 3 inches |
| Item Dimensions Lx Wx H | 12 x 6 x 3 inches |
| Length | 12 inches |
| Package Dimensions | 11.54 x 7.8 x 5.35 inches |
| Package Weight | 2.56 pounds |
| Product Dimensions | 12 x 6 x 3 inches |
| Width | 6 inches |
| Technical Specifications | |
| Features | All circuit label positions are backlit; "ON" indicating LEDs installed in all circuit positions; Includes 4206-Square Format Label Set |
| Maximum Amperage | 100A |
| Nominal Voltage | 120V AC |
| Positions | 6 |
