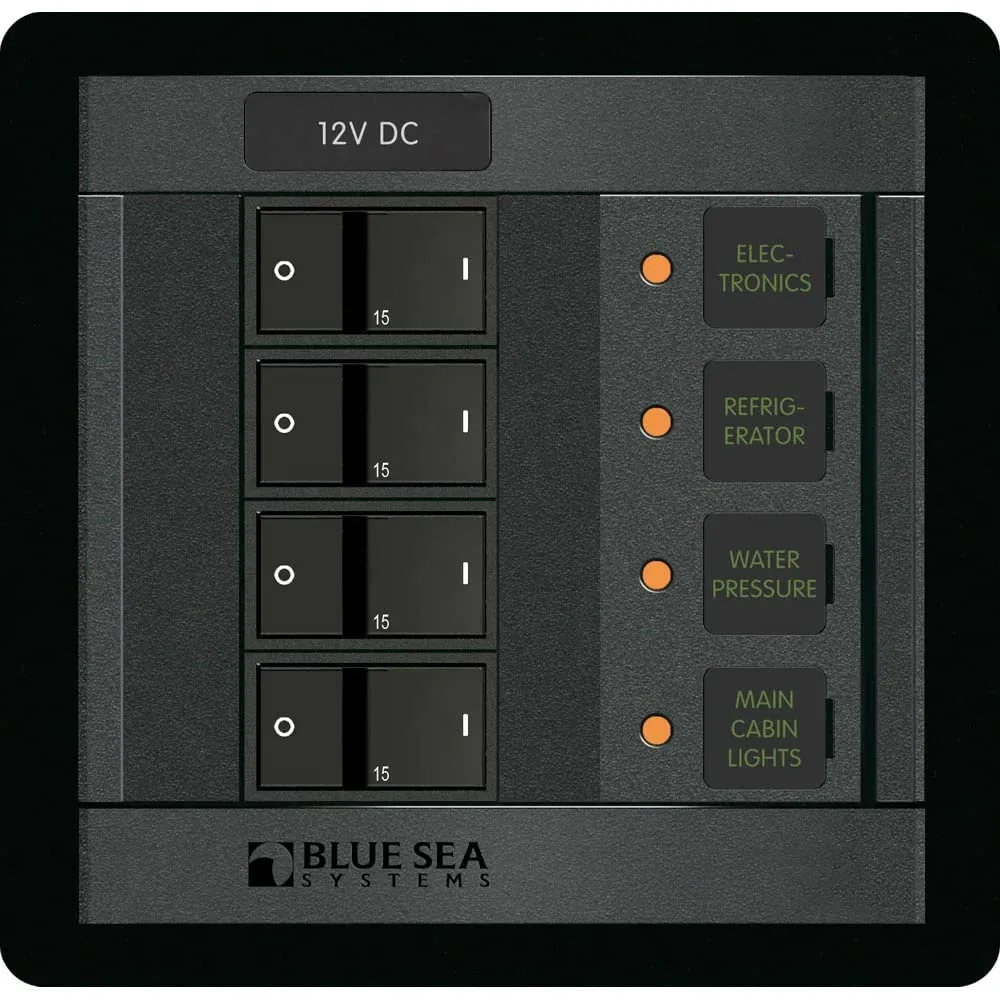

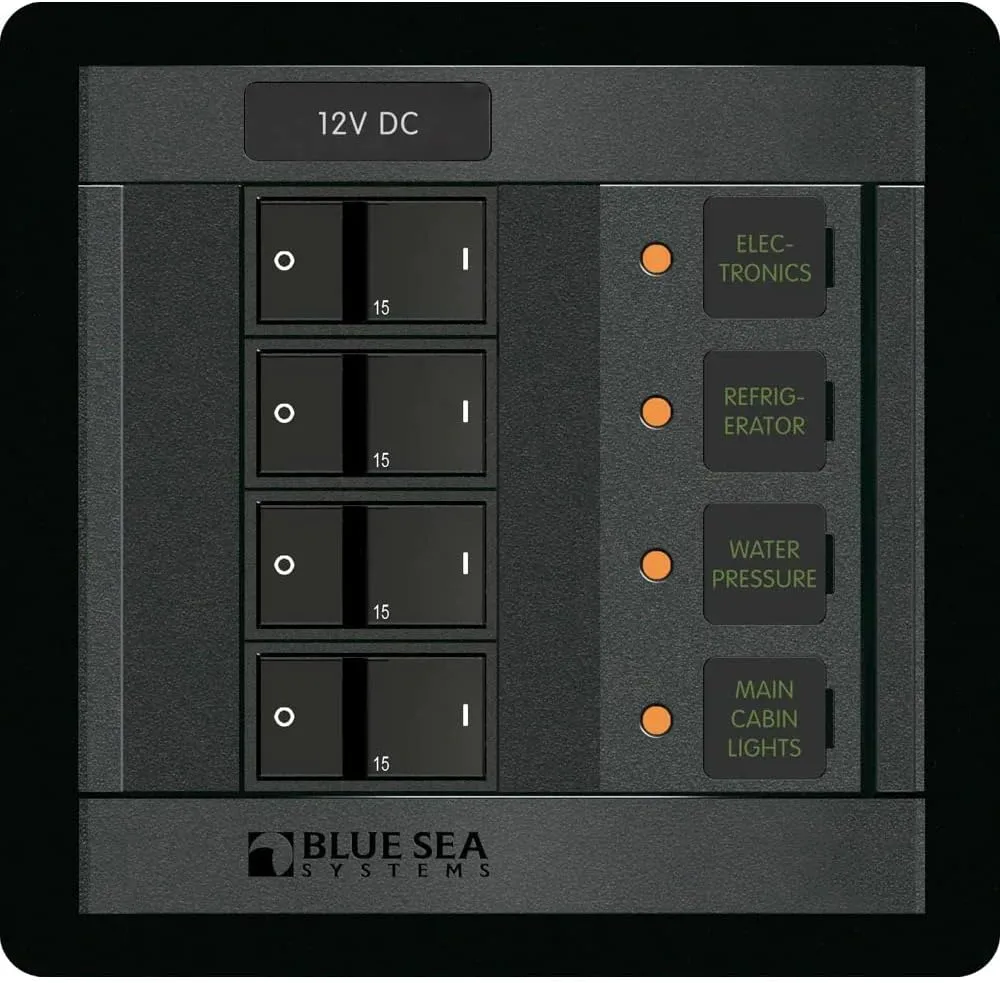

Blue Sea Systems 1216 12 Volt DC 4 Position,Black
Customize
Blue Sea Systems 1216 12V DC 4 Position panel. 12V DC 4 Position Features: 4 to 32 branch circuits with installed 15 Ampere circuit breakers. Available with voltmeters, ammeters, and digital multimeters. Includes 4205-Square Format Label Set and (4) 7403 A-Series Flat Rocker Circuit Breakers (Single Pole 15A). All circuit label positions are backlit with "ON" indicating LEDs installed in all circuit positions. Nominal Voltage: 12V DC. Maximum Amperage: 100A (dependent on use of appropriately sized fuses and wire). Product Dimensions (manufacturer): 4.25 x 6.6 x 8.62 inches. Weight: 1.3 pounds. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- 360 Panel System
- 4 branch circuits with 15 Ampere circuit breakers
- All circuit label positions are backlit
- "ON" indicating LEDs installed in all circuit positions
- Includes 4205-Square Format Label Set
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| AC Adapter Current | 15 Amps |
| Ac/dc | Dc |
| Country of Origin | USA |
| Material | Plastic |
| Model | PANEL 360 DC 4 POS RR |
| Number Of Circuits | 4 |
| Phase Type | Single Phase |
| UPC | 632085012168 |
| Voltage | 12 Volts (DC) |
| Wattage | 5 watts |
| Sizing & Dimensions | |
| Height | 8.62 inches |
| Length | 4.25 inches |
| Product Dimensions | 4.25 x 6.6 x 8.62 inches |
| Weight | 1.3 pounds |
| Width | 6.6 inches |
| Technical Specifications | |
| Wattage | 5 watts |
