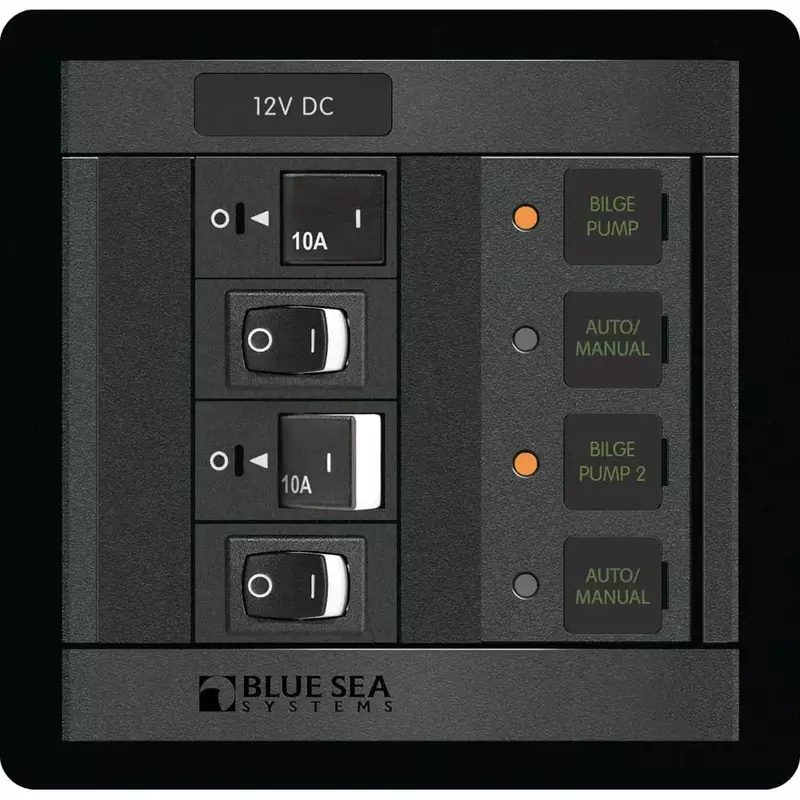

Blue Sea Systems 1522 360 Panel Dual Bilge Pump Control
Customize
360 Panel Dual Bilge Pump Control Controls two bilge pumps Restricted-off circuit breakers and manual override switches On-indicating LED indicates power is available at the bilge pump float switch Restricted-off circuit breakers provide 24-hour circuit protection to the bilge pump float switch Manual Override switch with On-indicating LED provides visual indication pump is running; also illuminates when pump is running as a result of float switch operation Specifications: Nominal Voltage: 12V DC Height: 4.75" (120.65mm) Width: 4.88" (123.95mm) Includes: (2) - 7427 - A-Series Restricted Off Flat Rocker Circuit Breaker - Single Pole 10A (2) - 7480 - Rocker Switch SPST - ON-OFF WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov ., AC/DC: DC
- 360 Panel System
- Controls two bilge pumps with restricted-off circuit breakers and manual override switches
- On-indicating LED indicates power is available at the bilge pump float switch
- Manual Override switch with On-indicating LED provides visual indication pump is running
- Illuminates when pump is running as a result of float switch operation
Materials & Construction
- Outer Material:Plastic
Product Details
- Ac/dc:Dc
- Color:Beige
- Global Trade Identification Number:00632085015220
- Material:Plastic
- Number of Items:1
- Power Source:DC power supply
- Size:One Size
- Specific Uses For Product:Fleet and plant maintenance.
- Style:Bilge
- Voltage:12 Volts (DC)
Sizing & Dimensions
- Height:4.75 inches
- Length:4.88 inches
- Product Dimensions:4.88"L x 4.88"W x 4.75"H
- Weight:0.67 pounds
- Width:4.88 inches
Technical Specifications
- Item Dimensions L x W x H:9 x 7 x 5 inches
- Item Package Dimensions L x W x H:8.66 x 6.46 x 5.39 inches
