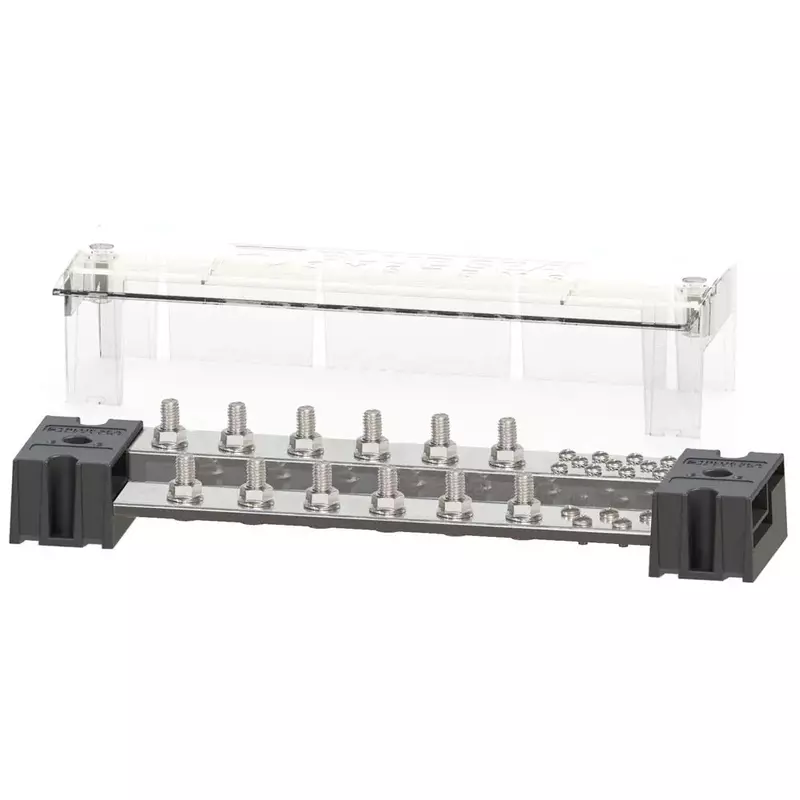

Blue Sea Systems 1991 PowerBar 1000 Stud with Cover, 12 x 3/8"

PowerBar 1000 - 12 3/8" Terminal Studs w/Cover. Complex wiring systems require a single point to consolidate large and small conductors. The PowerBar 1000 offers a 1,000 Amp busbar with various size studs and screws to connect conductors and fuse blocks. Tin plated pure electrical copper for maximum conductivity. Stepped bus design offers two elevations for conductors which doubles the density of the wire loom compared to traditional bus bars. Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables. One-piece serrated flange nuts ensure correct and secure connections. Stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires. Busbar may be cut to a shorter length to accommodate constricted spaces. Bi-directional busbar end caps allow the ganging of additional busbars. Snap on insulating cover meets ABYC and USCG requirements and includes label recess. Specs: Number of Terminal Studs: 12. Continuous Rating: 1000A. Bus Material: Tin-Plated Copper C11000. Mounting Holes: Accepts #10 (M5) Screws. Terminal Stud Size: 3/8". WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

• Max voltage: 150V, Continuous Rating: 1000A
• Snap on insulating cover meets ABYC and USCG requirements and includes label recess
• Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables
• Stepped bus design offers two elevations for conductors which doublesthe density of the wire loom compared to traditional bus bars
• 1000A PowerBar with twelve 3/8" terminal studs. 2 mounting holes accept #10 (M5) screws
