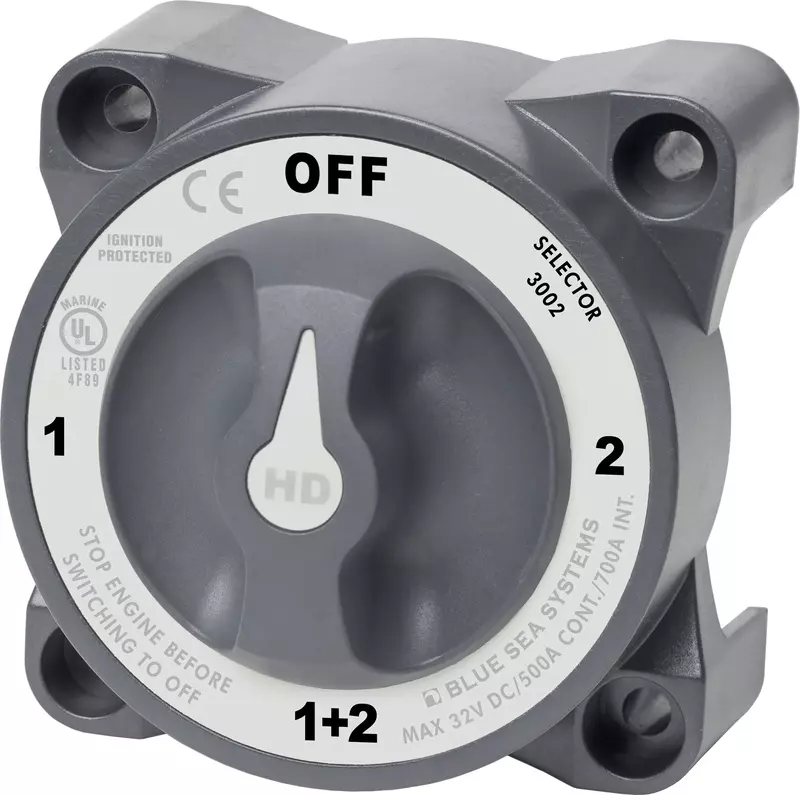

Blue Sea 3002 HD Battery Selector 4-Position
Customize
3002 HD-Series Battery Switch Selector Features: 500 Ampere Continuous Rating Accepts 4/0 battery cables Ignition protected - safe for installation aboard gasoline powered boats .870" (22.01mm) stud length to accept 4 or more cable terminals 1/2" (M12) Tin-plated copper studs for maximum conductivity and corrosion resistance Meets American Boat and Yacht Council (ABYC) requirements for battery switches Tactile textures indicate knob position by feel only Case design allows surface or rear panel mounting Fits all Perko and Guest low amperage battery switch hole patterns WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov . GREAT PRODUCT
- Switches isolated battery banks to all loads or combines battery banks to all loads
- Ignition protected—safe for installation aboard gasoline powered boats.
- IP66 waterproof, ISO 8846 and meets ABYC requirements
- Accepts two 4/0 AWG (95mm²) battery cables. Terminal Stud Size: 1/2"
- Continuous Rating: 500A, Max Voltage: 32VDC
Specifications:
| Materials & Construction | |
| Color | Beige |
| Contact Material | Tin-plated Copper |
| Material | Tin-plated Copper |
| Product Details | |
| Actuator Type | Rotary |
| Circuit Type | 4-way |
| Connectivity Protocol | X-10 |
| Control Method | Touch |
| Included Components | HD BATTERY SELECTOR 4POS |
| Model Name | HD BATTERY SELECTOR 4POS |
| Number of Positions | 4 |
| Style | Selector 4 Pos. |
| Warranty | LIMITED WARRANTY |
| Wattage | 9.6E+3 |
| Sizing & Dimensions | |
| Height | 3 inches |
| Length | 9 inches |
| Package Dimensions | 8.54 x 6.3 x 3.31 inches |
| Product Dimensions | 9 x 6 x 3 inches |
| Size | One Size |
| Weight | 1.25 pounds |
| Width | 6 inches |
| Technical Specifications | |
| Current Rating | 500 Amps |
| International Protection Rating | IP66 |
| Operating Voltage | 32 Volts |
