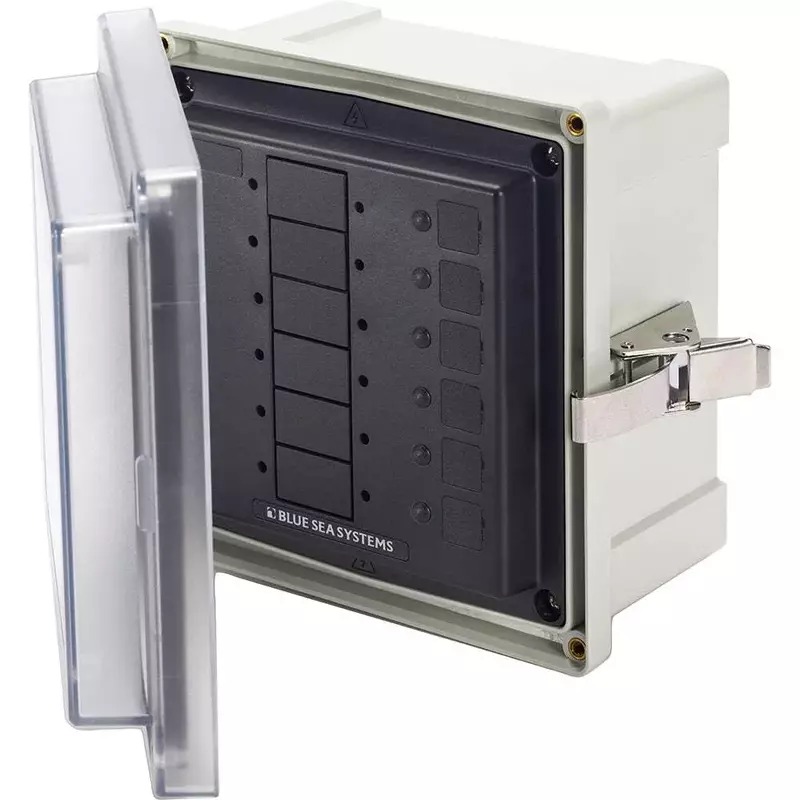

Blue Sea Systems 3113 6 Circuit Blank Surface Mount System Enclosure, Beige

3113 - SMS Panel Enclosure with 6 Blank Circuits. The 3113 panel enclosure is built for main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet. Features: Blank apertures for custom breaker loading; Glass filled polycarbonate mounting box; Clear cover allows easy view of circuit breaker status; Overlapping cover for strength and increased gasket protection; Oversized, formed in place seamless PUR gasket; Easily removable stainless steel hinge pin for unobstructed installation; Stainless steel latch secures cover without penetrating the enclosure; Blank circuit positions accommodate Carling Technologies A- and C- Series Flat Rocker and ELCI Main circuit breakers. Technical Specifications: Dimensions (Overall) (H x W x D) - 7.6" x 7.4" x 4.7" (192 x 188 x 120mm). Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm). LEDs Installed - 1 x Red (Reverse Polarity - 230V AC) and 3 x Green ON (230V AC). In the Box: 3123 Enclosure, Mounting hardware, Instruction manual. Sold as an Individual. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

• Accommodate Carling Technologies and C- Series Flat Rocker and ELCI Main circuit breakers
• Overlapping cover for strength and increased gasket protection
• Clear cover allows easy view of circuit breaker status
• Glass filled polycarbonate mounting box
• Blank apertures for custom breaker loading
