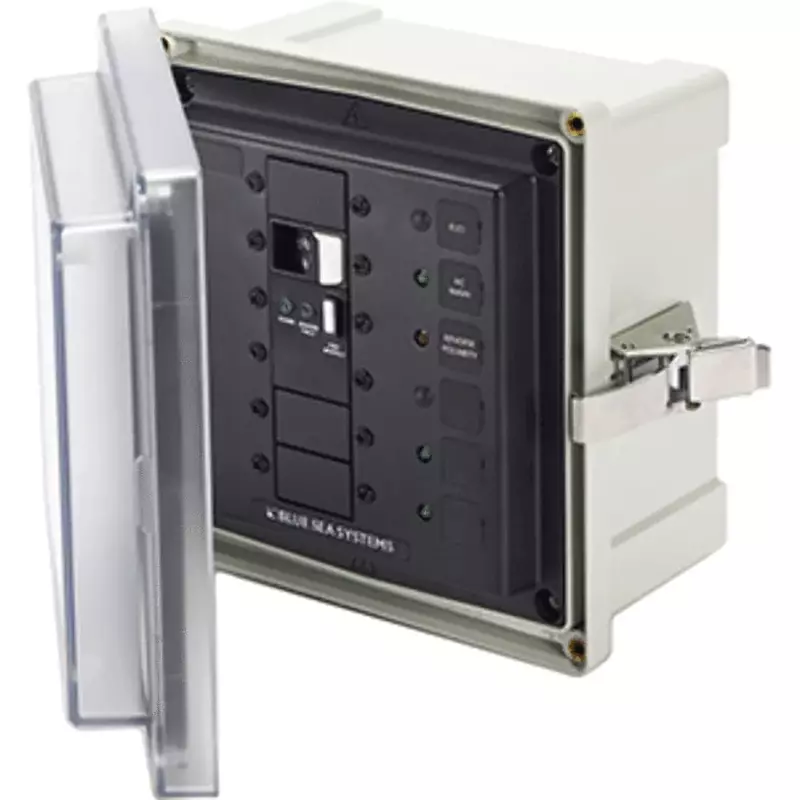

Blue Sea Systems 3118 120VAC ELCI 50A Surface Mount Panel Enclosure

3118 - SMS Panel Enclosure with ELCI (50A) and 2 Blanks - 120V AC. The 3118 panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet. Features include blank apertures for custom breaker loading, glass-filled polycarbonate base, clear cover for easy view of circuit breaker status, overlapping cover for strength and increased gasket protection, oversized formed-in-place seamless PUR gasket, easily removable stainless steel hinge pin for unobstructed installation, stainless steel latch securing cover without penetrating the enclosure, blank circuit positions to accommodate Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers, waterproof glands, and LED lights for back lighting and ON indication. In the box: 3118 Enclosure, 5 glands, labels, mounting hardware, and instruction manual. Technical specs include 1 x ELCI Main (50A) 120V and 2 x blanks. Dimensions (Overall) (H x W x D): 7.6" x 7.4" x 4.7" (192 x 188 x 120 mm). Enclosure dimensions (H x W x D): 6" x 6" x 4" (152 x 152 x 102 mm). LEDs: 1 x Red (Reverse Polarity - 120V AC) and 3 x Green ON (120V AC). WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP). See P65Warnings.ca.gov.

• Accommodate Carling Technologies and C- Series Flat Rocker and ELCI Main circuit breakers
• Clear cover allows easy view of circuit breaker status
• Glass filled polycarbonate mounting box
• Blank apertures for custom breaker loading
• Includes one 120V AC 50A ELCI Main and two blank positions
