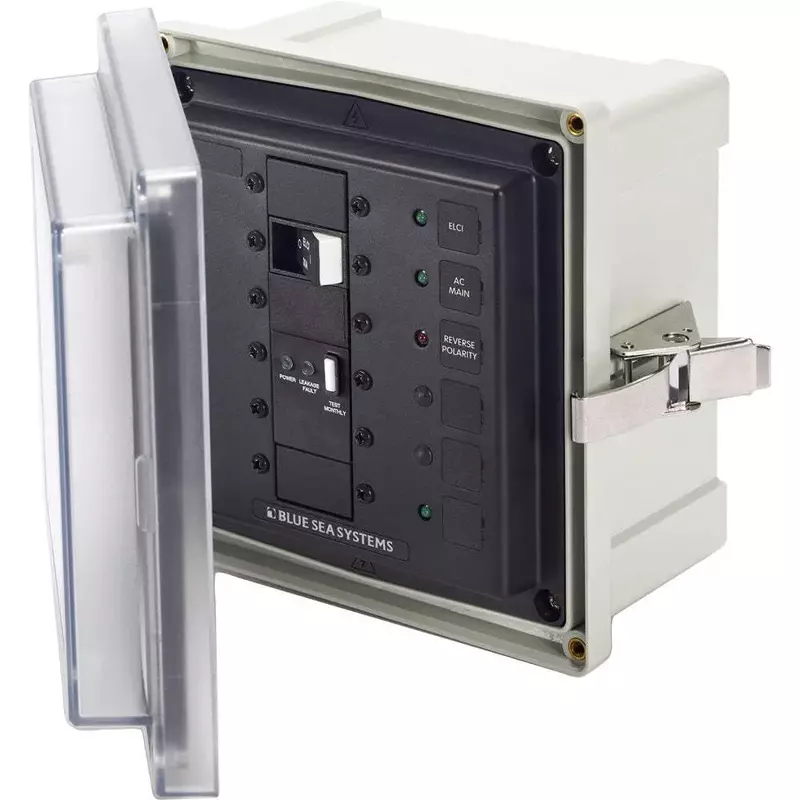

Blue Sea 3119 SMS Surface Mount System Panel Enclosure - 120/240V AC / 50A ELCI Main - 1 Blank Circuit Position

3119 SMS Surface Mount System Panel Enclosure - 120/240V AC / 50A ELCI Main - 1 Blank Circuit Position. The 3119 panel enclosure is for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet. Features include: one 120/240V AC / 50A ELCI Main and one blank position; blank apertures for custom breaker loading; glass-filled polycarbonate mounting box; clear cover for easy view of circuit breaker status; overlapping cover for strength and increased gasket protection; oversized, formed in place seamless PUR gasket; easily removable stainless steel hinge pin for unobstructed installation; stainless steel latch secures cover without penetrating the enclosure; blank circuit positions accommodate Carling Technologies A- and C-Series Flat Rocker and ELCI Main circuit breakers; stainless steel mounting hardware included; waterproof glands; LED lights for back lighting and ON indication. Technical specifications include minimum operating temperature -35° C, maximum operating temperature 66° C, cover screws and hardware 10-32 stainless steel, enclosure size 6.0" x 6.0" x 4.0" (152mm x 152mm x 102mm), exterior overall dimensions 7.6" x 7.4" x 4.7" (192mm x 188mm x 120mm), mounting hardware 1/4" diameter, #12 (6 mm), weight 7.00 lb (3.18 kg). In the box: 3119 enclosure, glands x 5, labels, mounting hardware, instruction manual. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm.

• Includes one 120/240V AC 50A ELCI Main and one blank position
• Blank apertures for custom breaker loading
• Glass filled polycarbonate mounting box
• Clear cover allows easy view of circuit breaker status
• Accommodate Carling Technologies and C- Series Flat Rocker and ELCI Main circuit breakers
