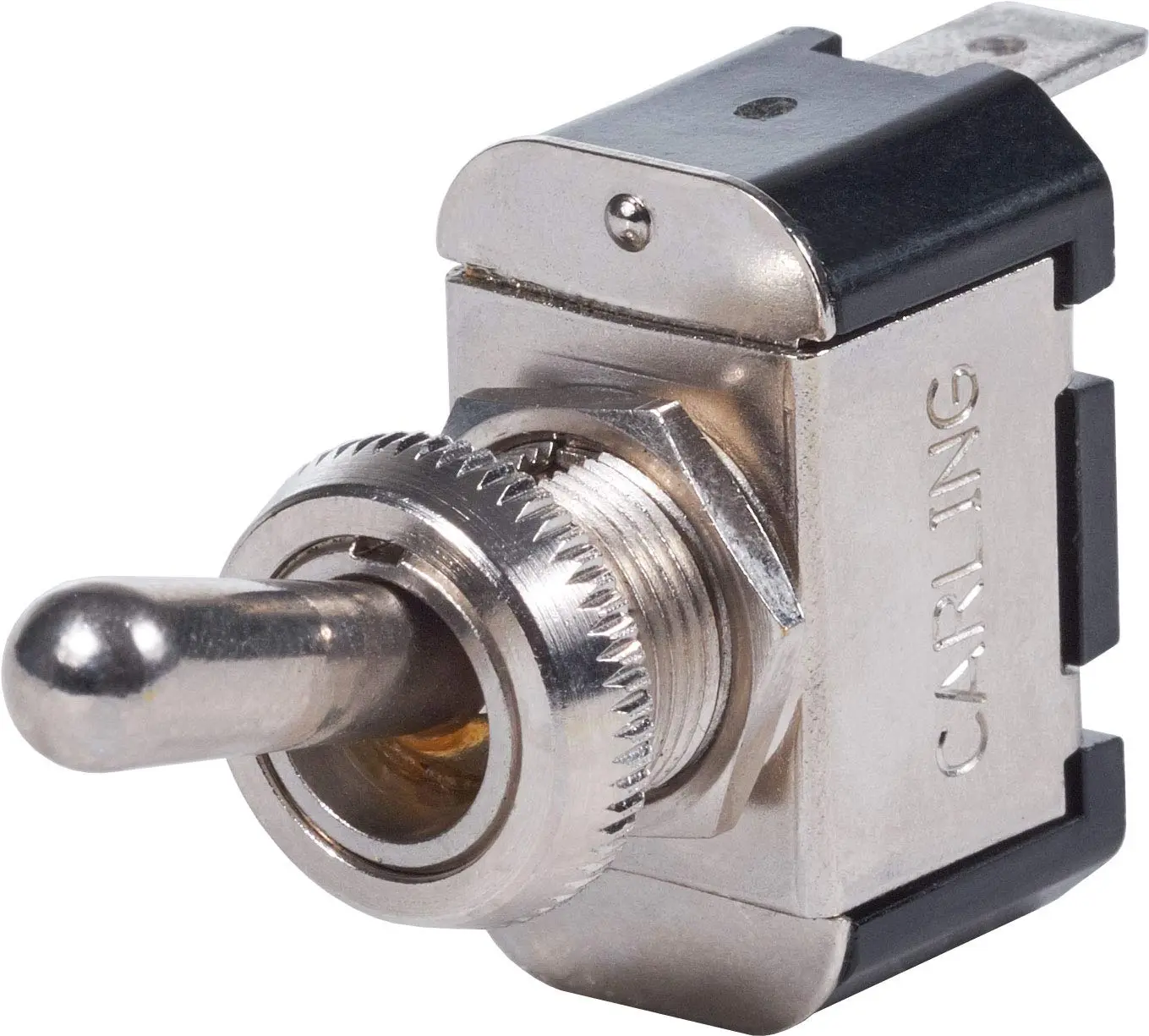

Blue Sea Systems 4151 WeatherDeck Toggle Switch SPST - (ON)-OFF
Customize
4151 WeatherDeck Toggle Switch Pole/Throw SPST Action OFF-(ON) Momentary Specially manufactured by Carling Technologies for use in Blue Sea Systems' WeatherDeck™ Panels When mounted with a WeatherDeck Toggle Switch Boot Rated IP67-temporay immersion for 30 minutes Nickel-plated brass and phenolic non-corrosive construction WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov . Specially manufactured by Carling Technologies for use in Blue Sea Systems" WeatherDeck Panels When mounted with a WeatherDeck Toggle Switch Boot Rated IP67-temporay immersion for 30 min Nickel-plated brass and phenolic non-corrosive construction.
- Package Weight: 0.1 pounds
- Nickel-plated brass and phenolic non-corrosive construction
- Country of Origin : United States
- Package Dimensions: 2.794 H x 8.89 L x 6.35 W (centimetres)
Specifications:
| Materials & Construction | |
| Contact Material | Brass |
| Material | Nickel-plated brass, phenolic |
| Outer Material | Phenolic |
| Product Details | |
| Connector Type | Quick Connect |
| Contact Material | Brass |
| Current Rating | 15 Amps |
| Global Trade Identification Number | 00828619104403, 00632085041519 |
| Insulation Resistance | 100 Megaohms |
| Is Discontinued By Manufacturer | No |
| Item model number | 4151 |
| Manufacturer Part No | 4151 |
| Mounting Type | Panel Mount |
| Operation Mode | ON-OFF |
| Specification Met | IEC 60529 |
| Terminal | Spst |
| Throw/Pole | Spst |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 5 inches |
| Product Dimensions | 5 x 3 x 1 inches |
| Weight | 1.13 ounces |
| Width | 3 inches |
| Technical Specifications | |
| Insulation Resistance | 100 Megaohms |
| Specification Met | IEC 60529 |
