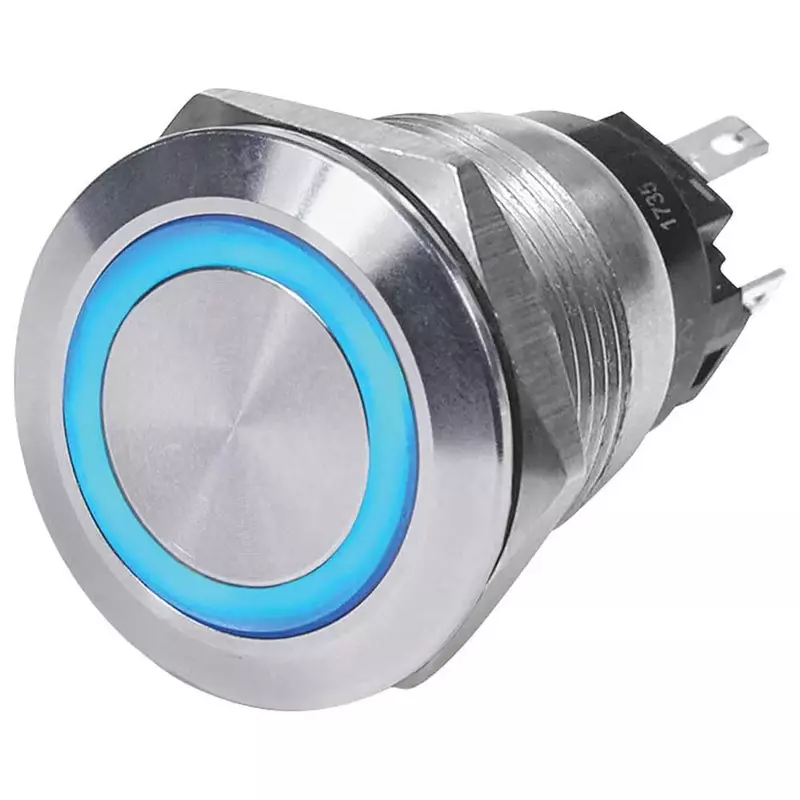

Blue Sea 4161 SS Push Button Switch - Off-(On) - Blue - 10A
Customize
10A push button LED ring switch can be wired for normally open or normally closed. Installs with . 110 in. quick connects which are included. Single pole double throw or single pole single throw. Momentary On/Off. 4161 SS Push Button Switch - Off-(On) - Blue - 10A 10A continuous Single Pole Double Throw or Single Pole Single Throw Can be wired for normally open or normally closed Installs with .110inch quick connects (included in retail package) Specifications Action: OFF-(ON) Amperage: 10A @ 12V DC Nominal Voltage: 12V DC Maximum LED Operating Current: 20mA Minimum Operating Temperature: -10° C Maximum Operating Temperature: 70° C Minimum Storage Temperature: -55° C Maximum Storage Temperature: 85° C Illumination: Independent – Separate contacts for LED power Mounting Hole: 19mm Switching Cycles: 18,000 Termination: 5 – 0.110inch Quick Connect terminals WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- 10A Continuous
- Can be wired for normally open or normally closed
- LED Ring Switch
- Momentary On/Off, Blue Light
Specifications:
| Materials & Construction | |
| Color | Blue |
| Material | Stainless Steel |
| Outer Material | Stainless Steel |
| Product Details | |
| Actuator Type | Push Button |
| Batteries | 1 Unknown batteries required. |
| Circuit Type | 2-way |
| Connectivity Protocol | X-10 |
| Connector Type | Quick Connect |
| Contact Material | Stainless Steel |
| Contact Type | Normally Open, Normally Closed |
| Control Method | Touch |
| Controller Type | Ring, Push Button |
| Country of Origin | China |
| Current Rating | 10 Amps |
| International Protection Rating | IP54 |
| Item model number | 4161-BSS |
| Manufacturer Part No | 4161-BSS |
| Mirror Lighting Type | led |
| Mounting Type | Surface Mount |
| Number of Items | 1 |
| Number of Positions | 2 |
| Operating Voltage | 12 Volts |
| Operation Mode | ON-OFF |
| Product Dimensions | 4.44 x 2.69 x 1.25 inches |
| Terminal | Button |
| Unit Count | 1 Count |
| Wattage | 1.2E+2 |
| Sizing & Dimensions | |
| Height | 1.25 inches |
| Length | 4.44 inches |
| Product Dimensions | 4.44 x 2.69 x 1.25 inches |
| Weight | 1.13 ounces |
| Width | 2.69 inches |
| Technical Specifications | |
| Illumination | Independent – Separate contacts for LED power |
| Maximum LED Operating Current | 20mA |
| Maximum Operating Temperature | 70° C |
| Maximum Storage Temperature | 85° C |
| Minimum Operating Temperature | -10° C |
| Minimum Storage Temperature | -55° C |
| Mounting Hole | 19mm |
| Switching Cycles | 18,000 |
| Termination | 5 – 0.110inch Quick Connect terminals |
