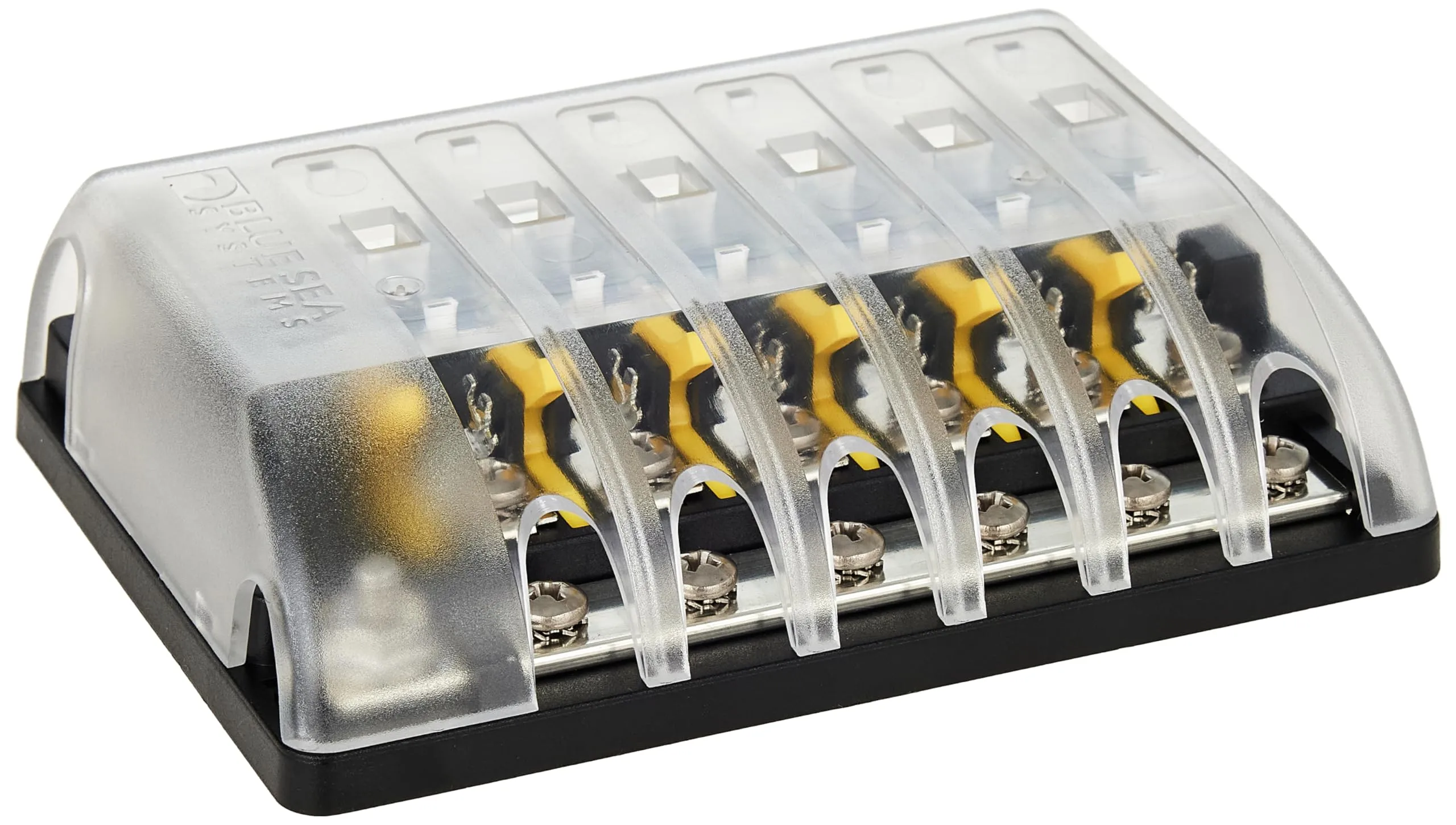

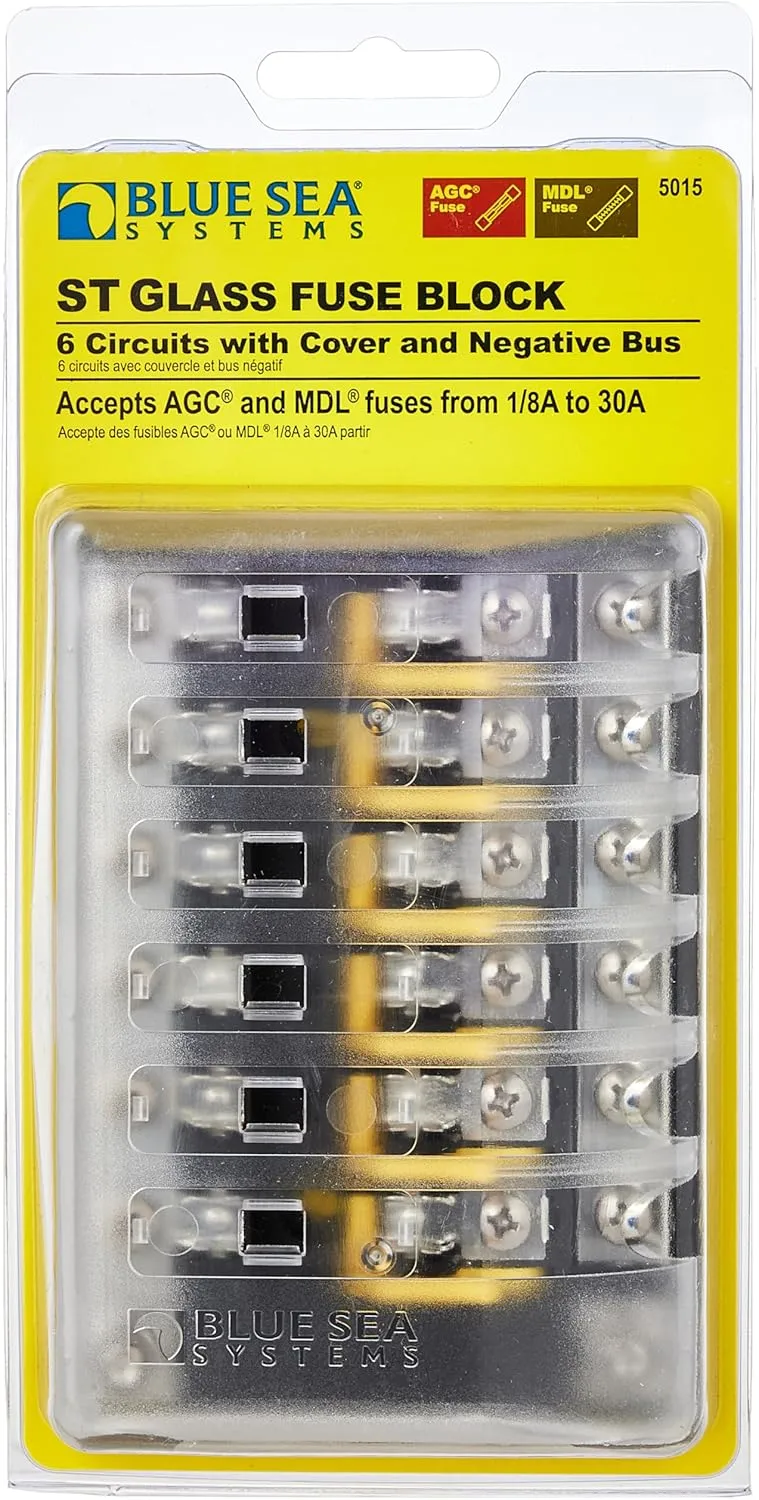

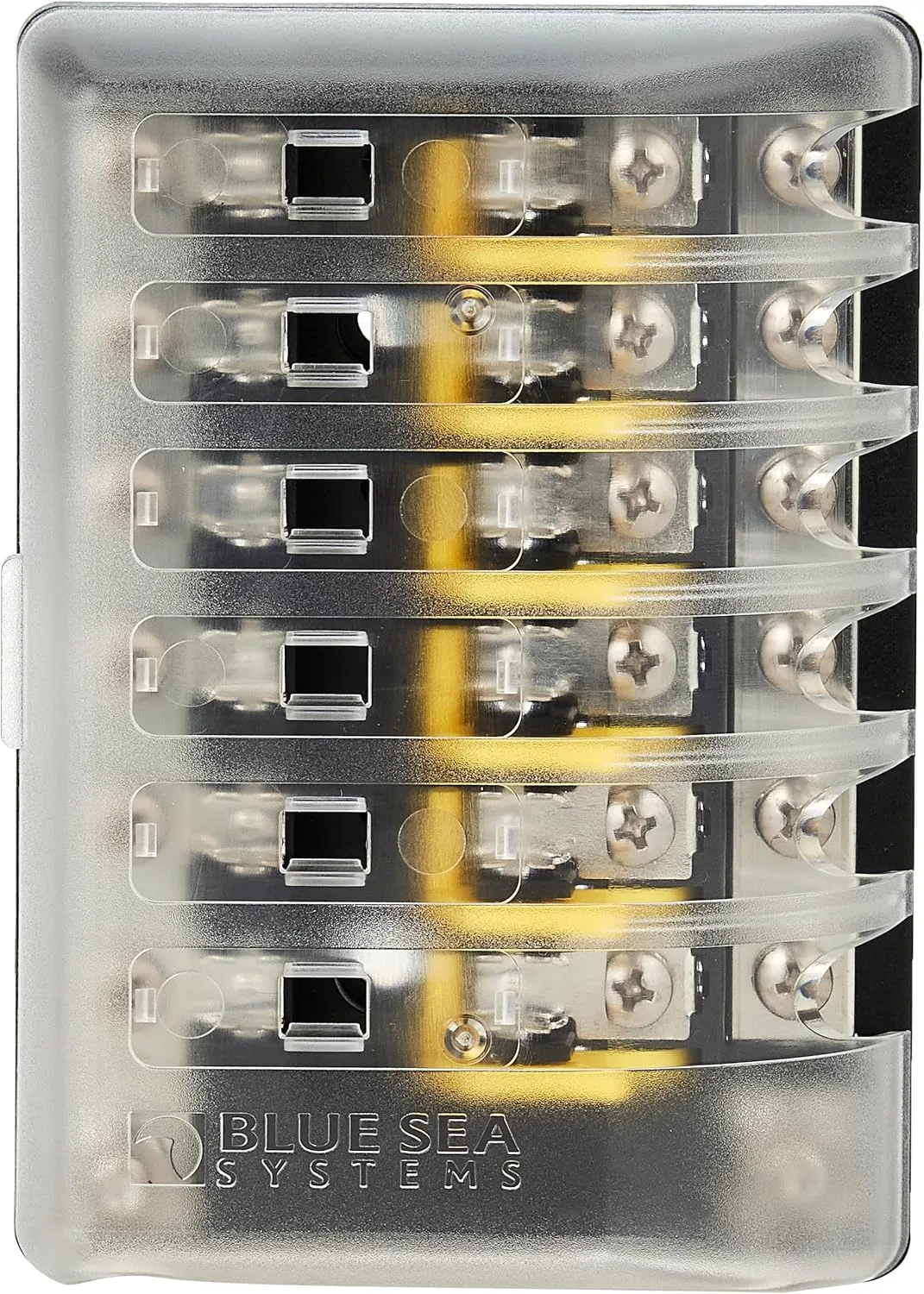

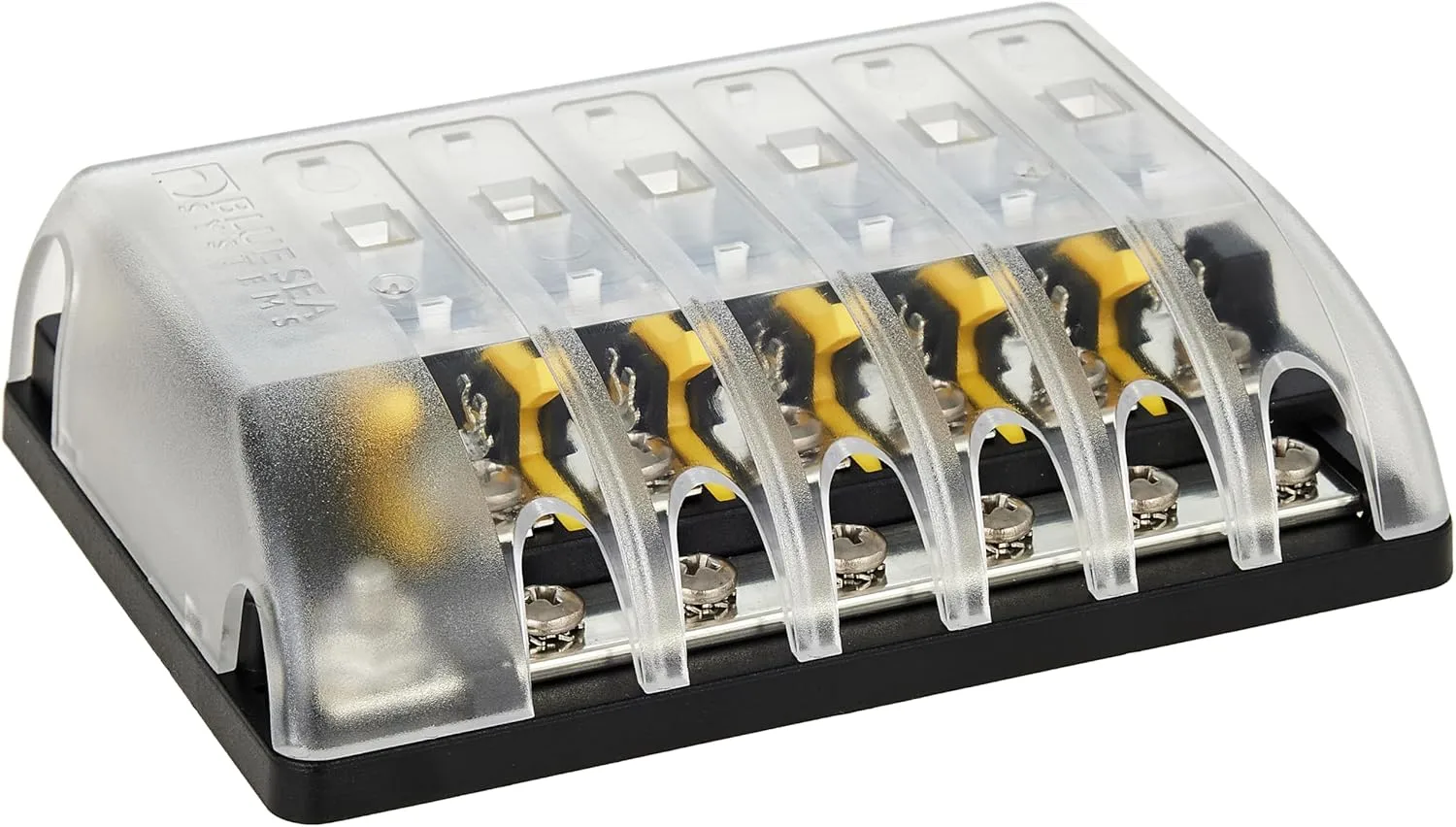

Blue Sea Systems 5015 Fuse Block AGC 6-CIR W/Ground , 3.5'' x 5.0''
Customize
5015 ST Glass Fuse Block with Negative Bus. Clear insulating cover with label recesses to accept large format labels; cover insulates all conductive parts, satisfying ABYC/USCG requirements and storing spare fuses. Tin-plated copper buses and phosphor bronze fuse clips give 30 Ampere rating per circuit. Accepts AGC (Fast Acting), MDL (Time-Delay) and all other 3AG glass fuses. Innovative design allows for labeling, spare fuse storage, and easy fuse removal. Clear insulating cover with label recesses for accept large format labels. Specification met: ABYC/USCG requirements. Package Weight (Rainforest): 0.55 pounds. Package Dimensions (Rainforest): 4.064 H x 18.034 L x 9.398 W (centimeters). WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Innovative design allows for labeling, spare fuse storage, and easy fuse removal
- Clear insulating cover with label recesses for accept large Format labels
- Package Weight: 0.55 pounds
- Package Dimensions: 4.064 H x 18.034 L x 9.398 W (centimeters)
Materials & Construction
- Color:Black
- Material:Plastic
- Outer Material:Plastic
Product Details
- Connector Type:Screw
- Fuse Type:Agc/Mdl
- Model Number:5015
- Mounting Type:Ground Mount
- Number Of Contacts:6
- Specification Met:Abyc/Uscg Requirements
- Type:Fuse Blocks
Sizing & Dimensions
- Height:5 inches
- Size:3.5"W x 5"H
- Weight:4.3 ounces
- Width:3.5 inches
Technical Specifications
- Current Rating:30 Amps
- Number Of Poles:6
- Voltage:32 Volts (DC)
