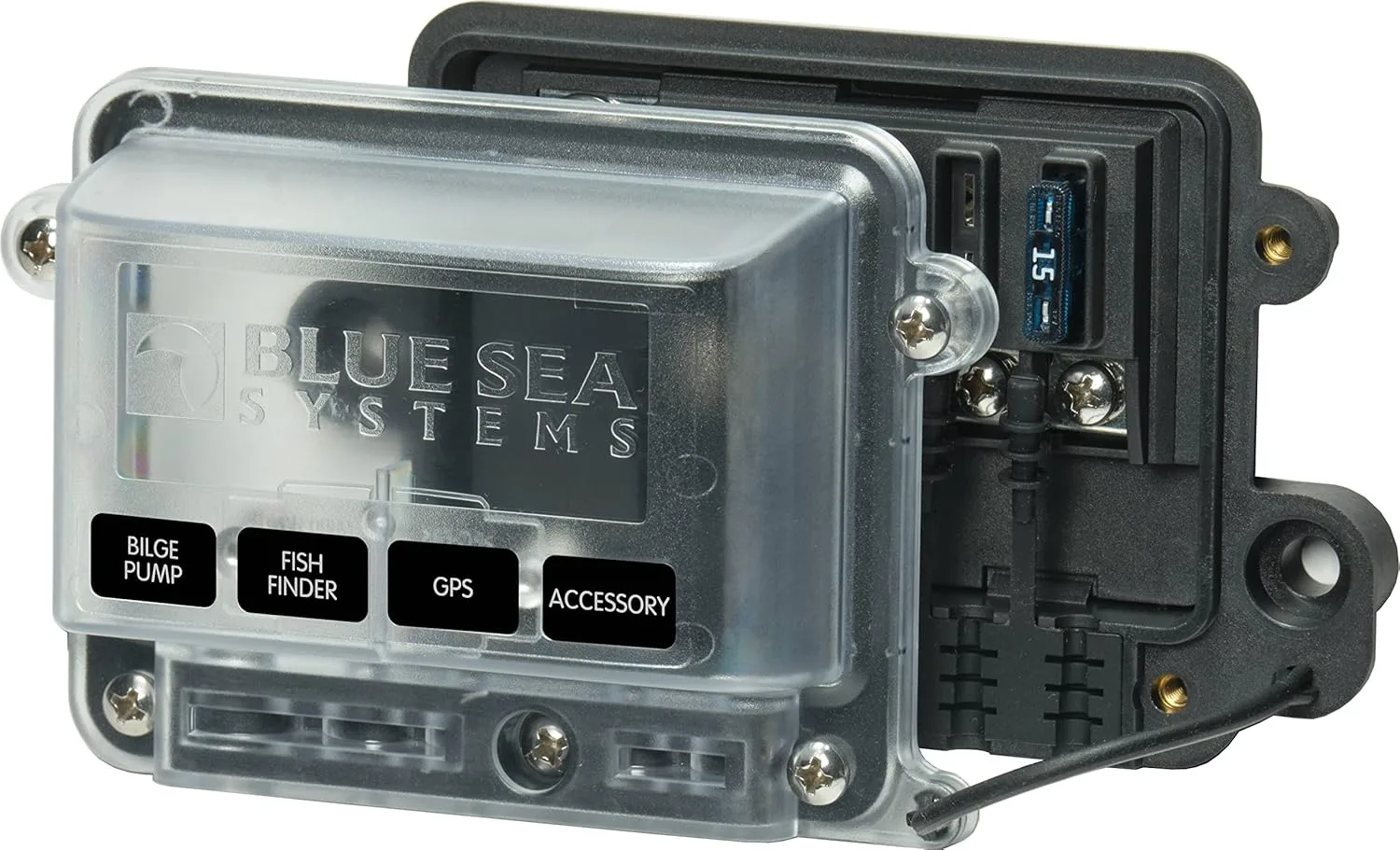

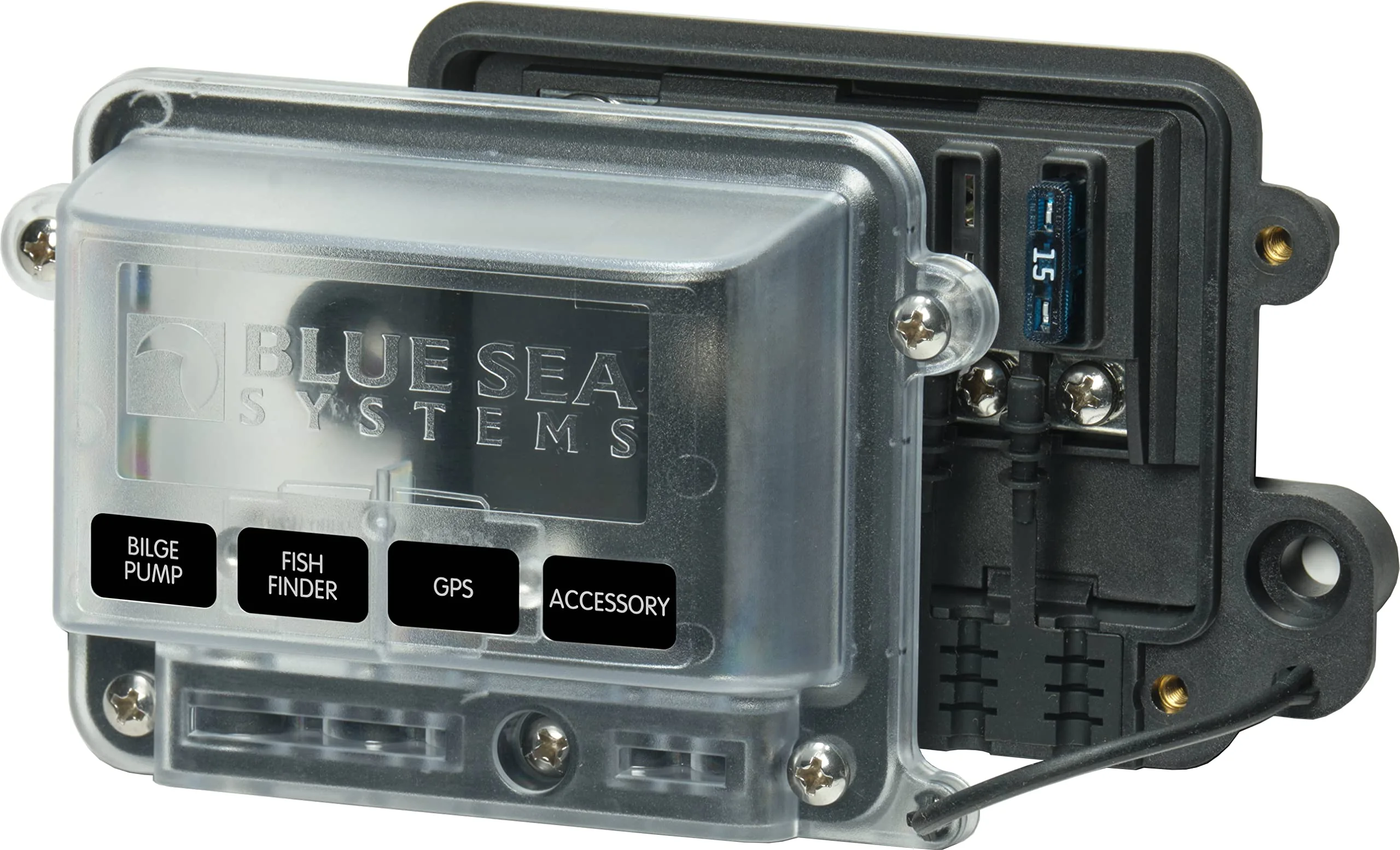

Blue Sea Systems 5056 ST-Blade Water-Resistant 4 Circuit Fuse Block

Provides water-resistant circuit protection for ATO/ATC fuses & circuit breakers in a compact footprint. The single side nesting design allows for wire entry from one side to maximize space. Water-resistant design with standard ring or fork type terminals allows for simple wiring with standard tools. Accepts a wide range of wire sizes. Includes 3 wire plugs to maintain water resistant rating if less than 4 loads are required. Accepts ATO and ATC fast-acting blade fuses and ATO/ATC-Style Low Profile Circuit Breakers. Nests with other ST-Blade Water-Resistant Fuse Blocks and Water-Resistant 100A Bus Bars to reduce wire. Insulating cover meets ABYC/USCG insulation requirements. Tin-plated copper busses and fuse clips. Includes four write-on circuit labels. Spare fuse and fastener storage in cover. Amperage: 80A per block / 25A per circuit. Maximum Voltage: 32V DC. Mounting Holes: Clearance for 1/4" (6mm) screws. Screw Terminal Type: #8-32 Screws with captive star lock washer. Wire Size: (1) 8 AWG to 4 AWG - Input / (5) 16 AWG to 10 AWG - Load. Fuse Type: ATO/ATC. Not ABYC compliant; not intended for marine applications when labeled otherwise.

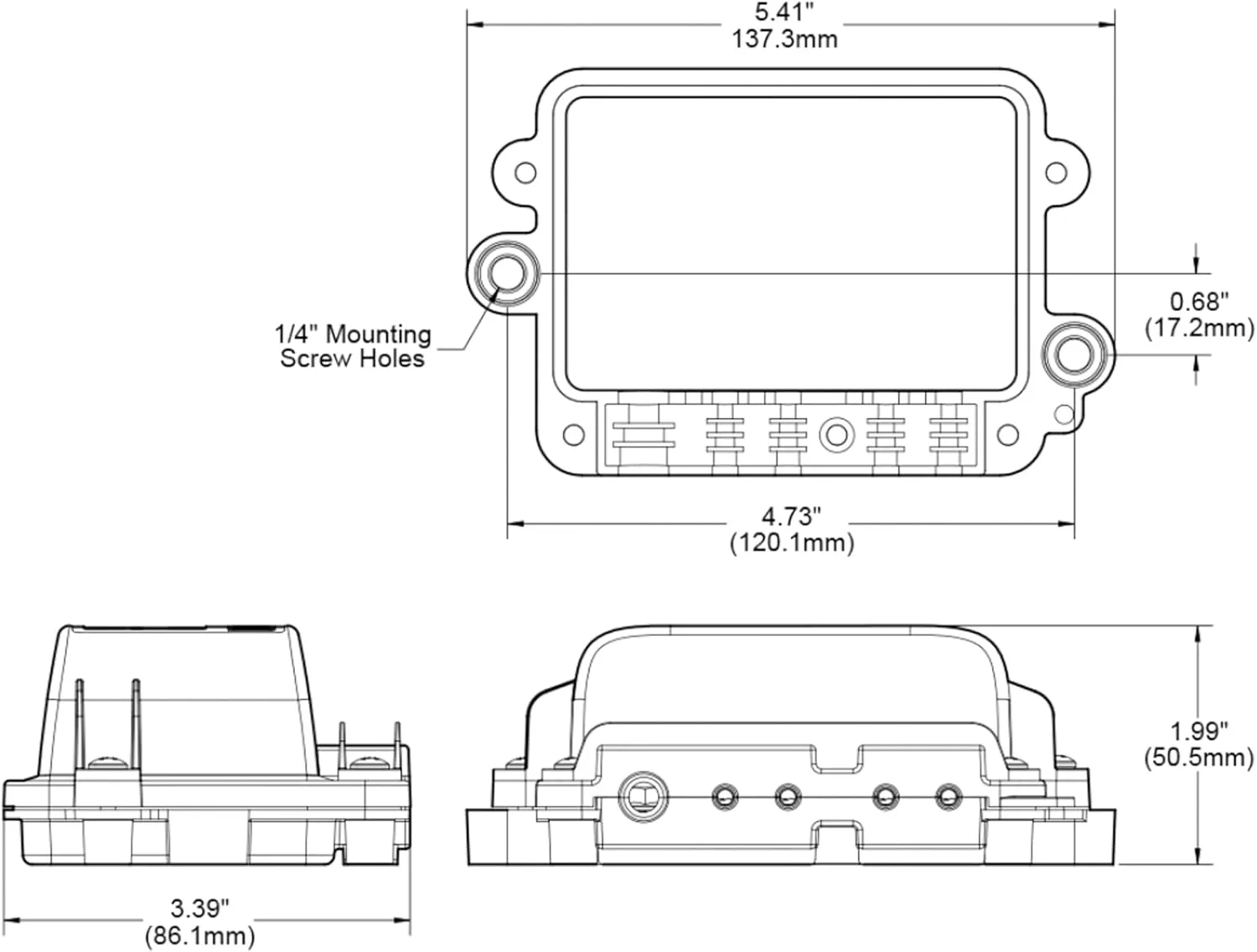

• Voltage Max. Operating: 32V DC, Amperage Max. Operating: 80A per block / 25A per circuit, Fuse Type ATO or ATC fuses and circuit breakers, Input Wire Size: (1) 8 AWG to 4 AWG, Load Wire Size: (4) 16 AWG to 10 AWG, Bus Material: Tin-Plated Copper C11000, Mounting Thru-hole: Accepts 1/4" (6mm) screws, Screw terminal: 4x 8-32 Screws with captive star lock washer, Stud terminal: 1 x 10-32
• Water-resistant design with standard ring or spade type terminals allows for simple wiring with standard tools
• Accepts a wide range of wire sizes, ATO and ATC fast-acting blade fuses, and ATO/ATC-Style Low Profile Circuit Breakers
• Includes 3 wire plugs to maintain water resistant rating if less than 4 loads are required and 4 write-on circuit labels
• Nests with other ST-Blade Water-Resistant Fuse Blocks and Water-Resistant 100A Bus Bars to reduce wire
• Fuses and circuit breakers sold separately. Storeage for spare fuse and fastener in cover
• Not ABYC compliant, not intended for marine applications, use PN 5056100 for marine use
