Blue Sea Systems 7047 187-Series Circuit Breaker, Panel Mount, 135A
Customize
187 - Series Thermal Circuit Breakers - Panel Mount. 135 Amp Circuit Breaker PN: 7047. Combines switching and circuit protection into a single device. All components meet SAE J1171 external ignition protection requirements. Clear, single lever operation. "Trip Free" design cannot be held "ON" during fault current condition. Waterproof. Recessed mounting holes for clean appearance. Self-trimming case eliminates the need for mounting panels or trim bezels. Round case permits easy installation with standard sized hole saw. Large clearance around terminal studs accept heavy gauge wire lugs. Robust 5/16" terminals provide high torque connections. Large lever with vertical/horizontal orientation provides indication of trip status. Ignition protected - safe for installation aboard gasoline powered boats. Voltage rating up to 48 VDC. Interrupt rating up to 5,000A @12V DC (see product documentation). Operating temperature range: -25°C to +82°C. Amperage: 135A.
- Recessed mounting holes for clean appearance
- IP-66 rated Waterproof
- Clear, single lever operation
- Combines switching and circuit protection into a single device
Materials & Construction
- Color:No Color
- Material:Plastic
- Outer Material:Plastic
Product Details
- Amperage:135a
- Circuit Breaker Type:Standard
- Current Rating:135 Amps
- Included Components:Blue Sea Systems 7047 187-Series Panel Mount 135A Circuit Breaker
- Mounting Type:Panel Mount
- Number Of Poles:1

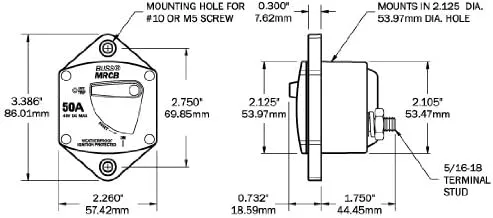

Sizing & Dimensions
- Height:2.17 inches
- Length:7.75 inches
- Product Dimensions:7.75 x 4.75 x 2.17 inches
- Size:One Size
- Weight:3.2 ounces
- Width:4.75 inches
Technical Specifications
- Item Package Dimensions L x W x H:7.4 x 4.6 x 2.5 inches
