Blue Sea Systems 7151 Marine Grade Short Stop Circuit Breaker - 10A
Customize

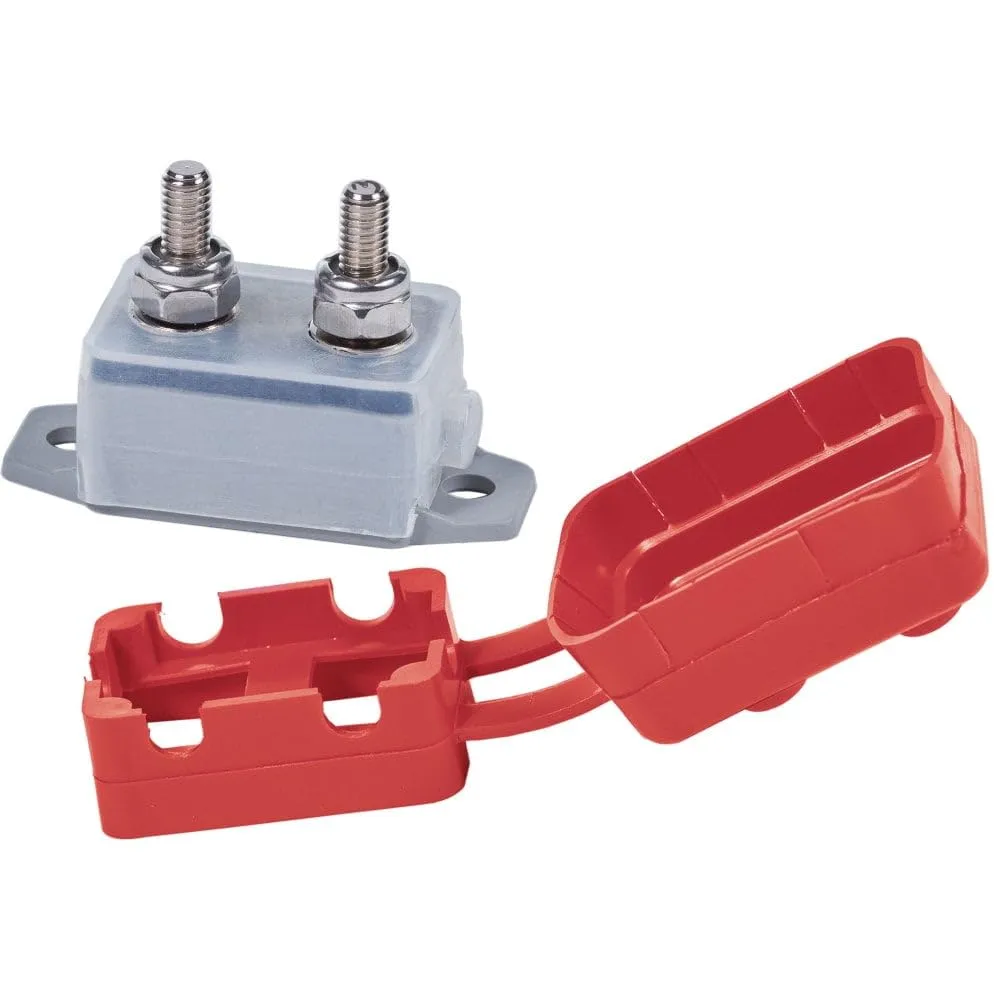

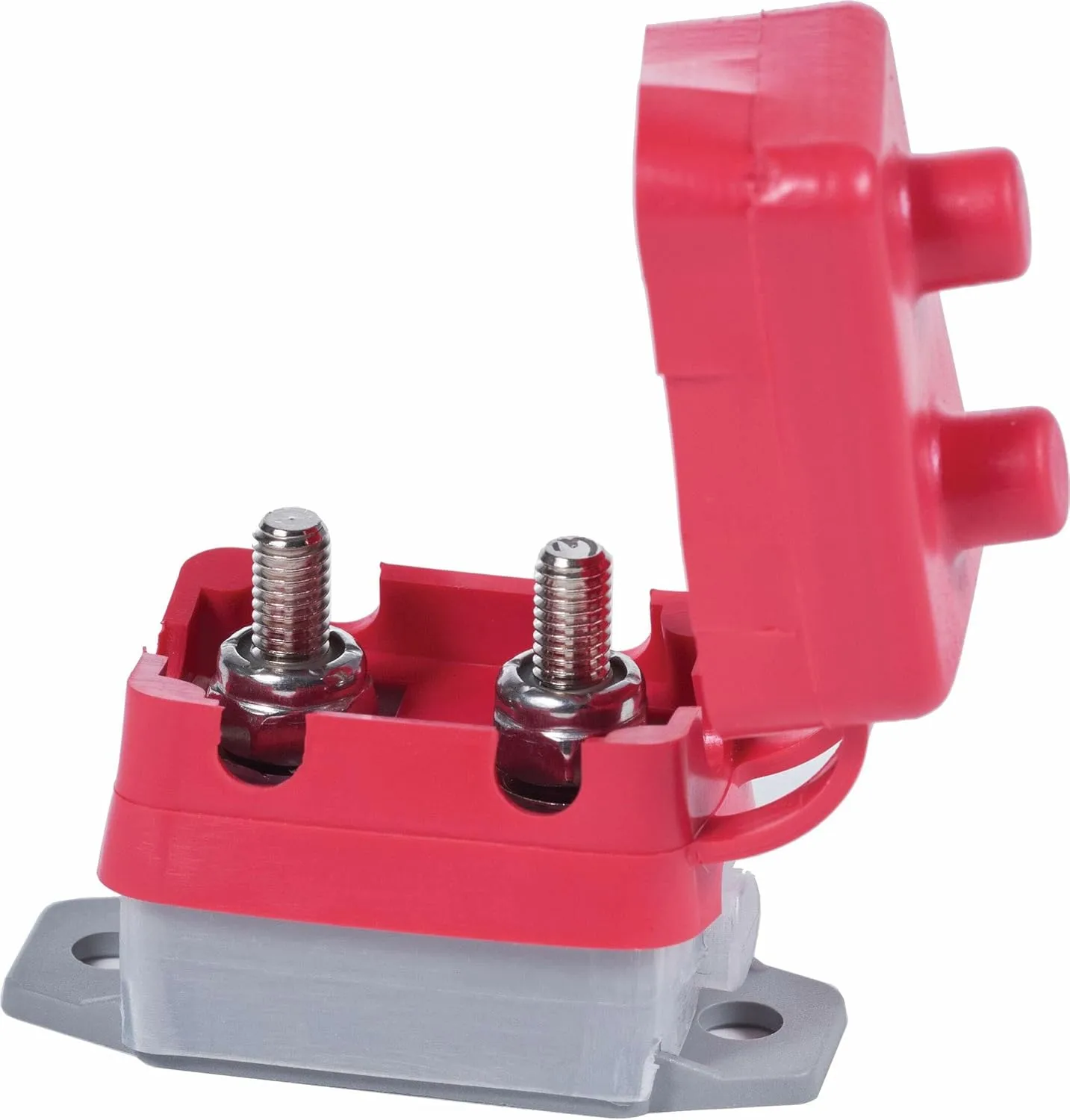

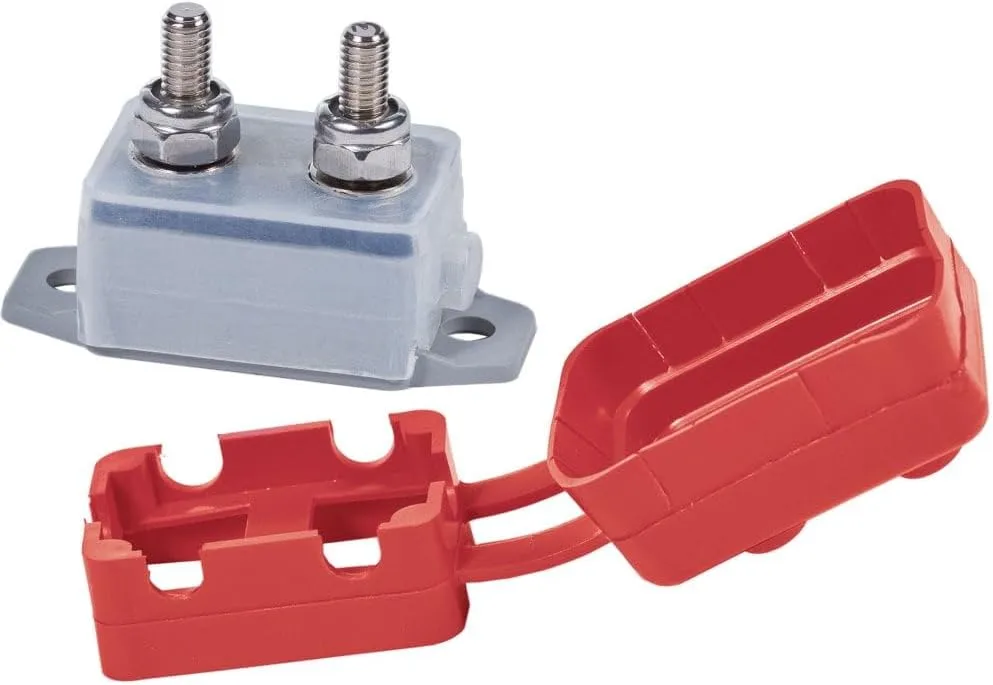

The Blue Sea Systems 7151-BSS Marine Grade Short Stop Circuit Breaker is constructed from corrosion-resistant materials to withstand harsh environments. The IP64 water resistant boot protects against dust and splashing water. Its push-to-reset operation only disconnects when tripped. Stainless steel lock nuts are provided for secure connections. Red insulating boot included. Amperage: 10A DC. Maximum Voltage: 28V DC. Circuit Breaker Type: Thermal Trip/Manual Reset. Interrupt Capacity: 2500A @ 28V DC. Minimum Operating Temperature: -10°C. Maximum Operating Temperature: 60°C. Terminal Stud: #10-32. 7151 Short Stop Circuit Breakers - 10A. Use a Circuit Breaker instead of a Fuse. Corrosion Resistant Material. IP 64 Water Resistant Boot. Push to Reset Only. Interrupt Capacity: 2,500A @ 28VDC. Red insulating boot included in retail package. Specifications: Amperage: 10A. Maximum Voltage: 28V DC. Interrupt Capacity: 2500A @ 28V DC. Minimum Operating Temperature: -10° C. Maximum Operating Temperature: 60° C. Screw Terminal Torque: 24 in-lb (2.71 Nm). Terminal Stud: #10-32".
- Corrosion resistant materials to withstand harsh environments
- IP64 water resistant boot protects against dust and splashing water
- Push-to-reset operation only disconnects when tripped
- Stainless steel lock nuts and red insulating boot included
- Amperage: 10A
- Manufacturer Part Number: 7151-BSS
Specifications:
| Product Details | |
| Amperage | 10a |
| Circuit Breaker Type | Thermal trip, manual reset |
| Model | 7151-BSS |
| Mounting Type | DIN Rail Mount |
| Number Of Poles | 1 |
| Voltage | 28 Volts |
| Sizing & Dimensions | |
| Height | 1.25 inches |
| Length | 1.25 inches |
| Product Dimensions | 1.25"D x 0.95"W x 1.25"H |
| Weight | 0.96 ounces |
| Width | 0.95 inches |
| Technical Specifications | |
| Interrupt Capacity | 2500A @ 28V DC |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Screw Terminal Torque | 24 in-lb (2.71 Nm) |
| Terminal Stud | #10-32 |
