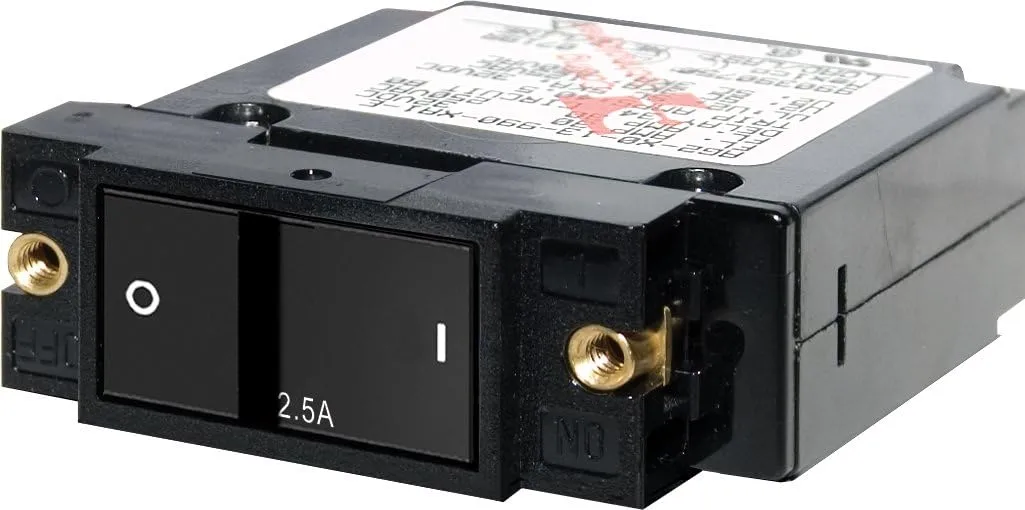

Blue Sea 7399 A-Series Flat Rocker Circuit Breaker - Single Pole - 2.5A

A-Series Flat Rocker Circuit Breaker - Single Pole - 2.5A. Rocker actuator is flush in the "ON" position, eliminating the risk of accidental switching. Color actuator indicates "OFF" position. "Trip Free" design cannot be held "ON" during fault current condition. Two different actuator styles available. Prevents accidental switching of 24 hour circuits. International ON/OFF symbols support vertical or horizontal mounting. Specifications include Amperage: 2.5A DC / 2.5A AC; Actuator Style: Flat Rocker; Poles: 1; Max Voltage: 250V AC / 32V DC; Circuit Breaker Type: Magnetic Hydraulic - Trip Free; Interrupt Capacity: 3000A @ 125V AC / 1500A @ 250V AC / 5000A @ 32V DC; Minimum Operating Temperature: -40°C; Maximum Operating Temperature: 85°C; Mounting Screw: #6-32 Stainless Steel; Mounting Screw Torque: 6 in-lb (0.68 Nm); Screw Terminal Torque: 14 in-lb (1.58 Nm); Switching Cycles: 10000; Terminal Screw: #10-32 Stainless Steel; Weight: 0.21 lb (0.1 kg). Included: circuit breaker. Manufacturer: BLUE SEA SYSTEMS. Model: A-Series. Part Number: 7399. UPC: 632085073992. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

• Rocker actuator is flush in the "ON" position, eliminating the risk of accidental switching
• Color actuator indicates "OFF" position
• "Trip Free" design cannot be held "ON" during fault current condition
• 2 different actuator styles available
• International ON/OFF symbols support vertical or horizontal mounting
