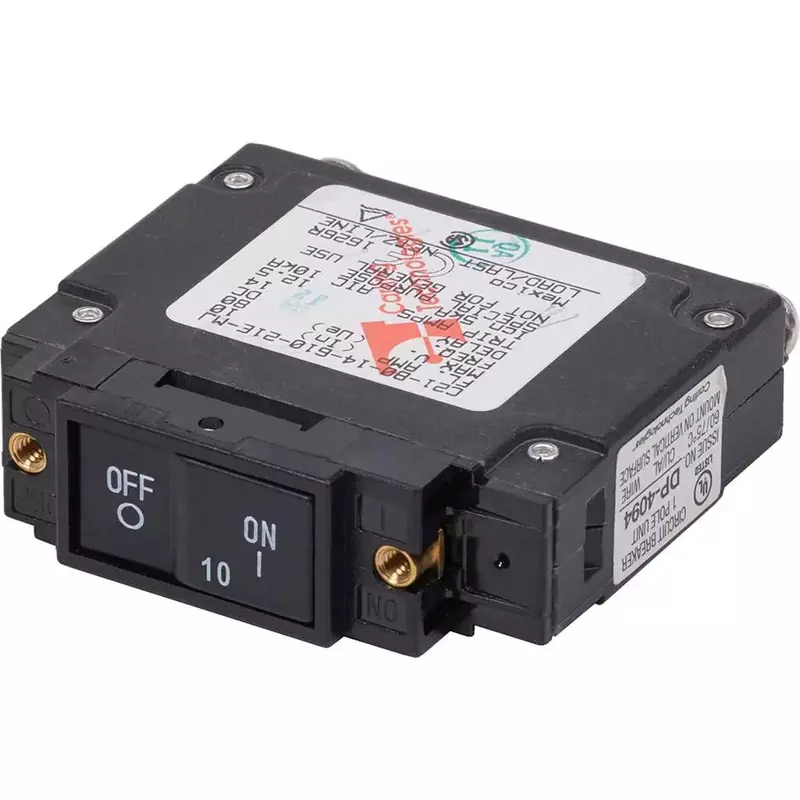

Blue Sea Systems 7441 Circuit Breaker C-Series Flat Rocker 10A DC UL489
Customize
7441 UL-489 Circuit Breaker - 10A Flat Rocker Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46). Specifications: Amperage: 10A DC Actuator Style: Flat Rocker Poles: 1 Maximum Voltage: 80V DC Circuit Breaker Type: Magnetic Hydraulic - Trip Free Terminal Type: #10-32 Screw Tin-Plated Brass Interrupt Capacity: 10000A, Amperage: 10a 10A DC Flat Rocker UL 489 Circuit Breaker.Interrupting Capacity:10,000A, Voltage Max. Operating: 80V DC, Temperature Operating: -40 degrees C to 85 degrees C.Terminal: #10-32 Tin-Plated Brass Screw, Terminal Torque: 15-20 in-lb.Mounting Screw: #6-32 SS, Mounting Screw Torque: 7-9 in-lb.Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46).
- 10A DC Flat Rocker UL 489 Circuit Breaker
- Interrupting Capacity:10,000A, Voltage Max. Operating: 80V DC, Temperature Operating: -40 degrees C to 85 degrees C
- Terminal: #10-32 Tin-Plated Brass Screw, Terminal Torque: 15-20 in-lb
- Mounting Screw: #6-32 SS, Mounting Screw Torque: 7-9 in-lb
- Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46)
Materials & Construction
- Color:Black
- Material:Plastic
Product Details
- Included Components:Circuit breaker
- Model Name:UL-489 Circuit Breakers
- Model Year:2019
- Number of Items:1
Sizing & Dimensions
- Height:0.94 inches
- Length:4.38 inches
- Size:10 Amp DC
- Weight:3.36 ounces
- Width:2.69 inches
Technical Specifications
- Amperage:10a
- Circuit Breaker Type:Magnetic HydraulicTrip free
- Current Rating:10 Amps
