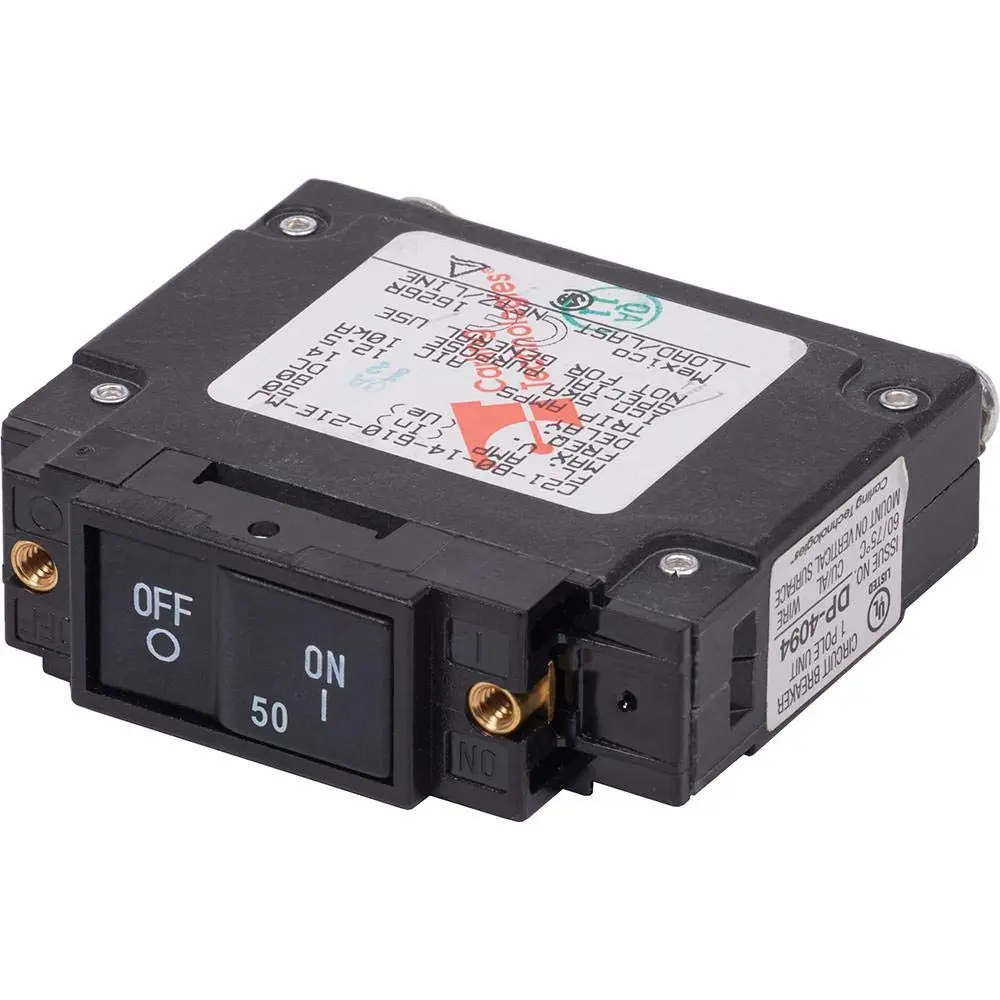

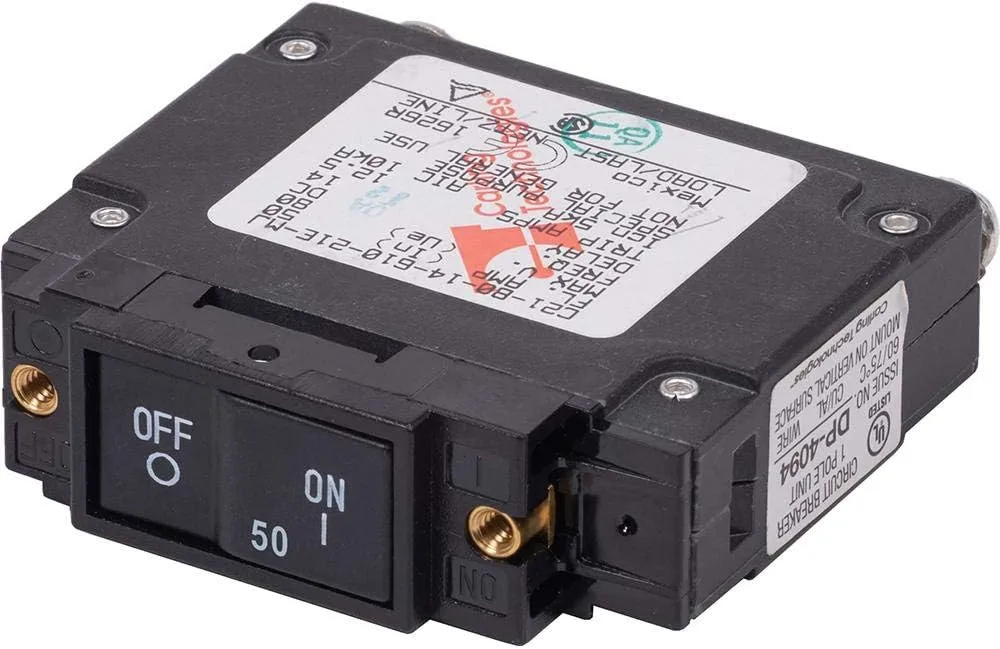

Blue Sea Systems 7445 Circuit Breaker C-Series Flat Rocker 50A DC UL489 Beige
Customize
7445 UL-489 Circuit Breaker - 50A Flat Rocker Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46). Specifications: Amperage: 50A DC Actuator Style: Flat Rocker Poles: 1 Maximum Voltage: 80V DC Circuit Breaker Type: Magnetic Hydraulic - Trip Free Terminal Type: #10-32 Screw Tin-Plated Brass Interrupt Capacity: 10000A, Amperage: 50a Additional product and marketing details: Blue Sea Systems C-Series 7445 50A DC flat rocker UL-489 circuit breaker in beige. Mounting screw: #6-32 stainless steel (torque 7-9 in-lb). Terminal torque: 15-20 in-lb. Temperature operating range -40°C to 85°C. Included components: circuit breaker. Warranty: Lifetime. Suitable for marine and CFR 46 applications.
- 50A DC Flat Rocker UL 489 Circuit Breaker
- Interrupting Capacity:10,000A, Voltage Max. Operating: 80V DC, Temperature Operating: -40 degrees C to 85 degrees C
- Terminal: #10-32 Tin-Plated Brass Screw, Terminal Torque: 15-20 in-lb
- Mounting Screw: #6-32 SS, Mounting Screw Torque: 7-9 in-lb
- Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46)
- Sport type: Outdoor Lifestyle
Specifications:
| Materials & Construction | |
| Color | Beige |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Circuit Breaker Type | Standard |
| Color | Beige |
| Current Rating | 50 Amps |
| Included Components | Circuit Breaker |
| Interrupting Capacity | 10,000A |
| Material | Plastic |
| Maximum Voltage | 80V DC |
| Model Name | UL-489 Circuit Breakers |
| Mounting Screw | #6-32 SS |
| Mounting Screw Torque | 7-9 in-lb. |
| Mounting Type | Screw Mount |
| Number Of Poles | 2 |
| Operating Temperature | -40 degrees C to 85 degrees C |
| Size | 50 Amp DC |
| Terminal | #10-32 Tin-Plated Brass Screw |
| Terminal Torque | 15-20 in-lb. |
| Warranty Description | Lifetime |
| Sizing & Dimensions | |
| Height | 2.2 inches |
| Length | 4.57 inches |
| Size | 50 Amp DC |
| Weight | 3.88 ounces |
| Width | 3.35 inches |
| Technical Specifications | |
| Interrupting Capacity | 10,000A |
| Maximum Voltage | 80V DC |
| Mounting Screw Torque | 7-9 in-lb. |
| Temperature Operating | -40 degrees C to 85 degrees C |
| Terminal Torque | 15-20 in-lb. |
