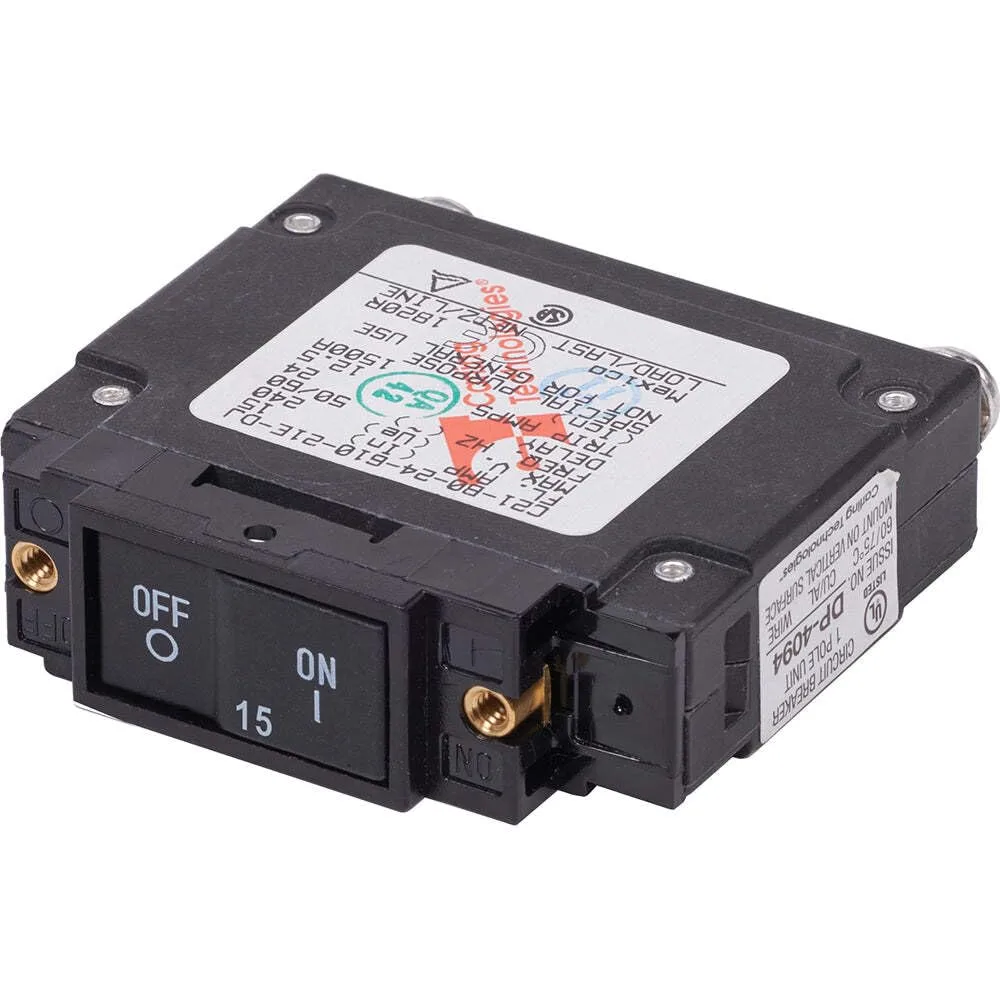

Blue Sea Systems 7456 Circuit Breaker C-Series Flat Rocker 15A AC UL489
BLUE SEA SYSTEMS 7456 UL-489 15A AC flat rocker circuit breaker for marine and industrial use — 5,000A interrupt capacity, #10-32 tin-plated brass terminal, screw mount, 240V max.
$63.99 $63.99
Customize
Available Quantity
3 Product Details
15A AC Flat Rocker UL 489 Circuit Breaker. Interrupting Capacity: 5,000A. Voltage Max. Operating: 240V AC. Temperature Operating: -40 degrees C to 85 degrees C. Terminal: #10-32 Tin-Plated Brass Screw, Terminal Torque: 15-20 in-lb. Mounting Screw: #6-32 SS, Mounting Screw Torque: 7-9 in-lb. Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46). Specifications from manufacturer and database: Amperage: 15A. Actuator Style: Flat Rocker. Poles: 1. Circuit Breaker Type: Magnetic Hydraulic - Trip Free. Terminal Type: #10-32 Screw Tin-Plated Brass. Interrupt Capacity: 5000A. Mounting: Screw mount. Lifetime warranty.
- Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46)
- Mounting Screw: #6-32 SS, Mounting Screw Torque: 7-9 in-lb
- Terminal: #10-32 Tin-Plated Brass Screw, Terminal Torque: 15-20 in-lb
- Interrupting Capacity: 5,000A, Voltage Max. Operating: 240V AC, Temperature Operating: -40 degrees C to 85 degrees C
- 15A AC Flat Rocker UL 489 Circuit Breaker
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Product Details | |
| Circuit Breaker Type | Standard |
| Color | Black |
| Current Rating | 15 Amps |
| Included Components | Circuit Breaker |
| Material | Plastic |
| Model Name | UL-489 Circuit Breakers |
| Model Year | 2019 |
| Mounting Type | Screw Mount |
| Number Of Poles | 1 |
| Size | 15 Amp AC |
| Voltage | 240 Volts |
| Warranty Description | Lifetime |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 5 inches |
| Product Dimensions | 5 x 3 x 2 inches |
| Size | 15 Amp AC |
| Weight | 3.88 ounces |
| Width | 3 inches |
| Technical Specifications | |
| Interrupting Capacity | 5,000A |
| Mounting Screw | #6-32 SS |
| Mounting Screw Torque | 7-9 in-lb |
| Temperature Operating | -40 degrees C to 85 degrees C |
| Terminal Torque | 15-20 in-lb |
| Terminal Type | #10-32 Tin-Plated Brass Screw |
