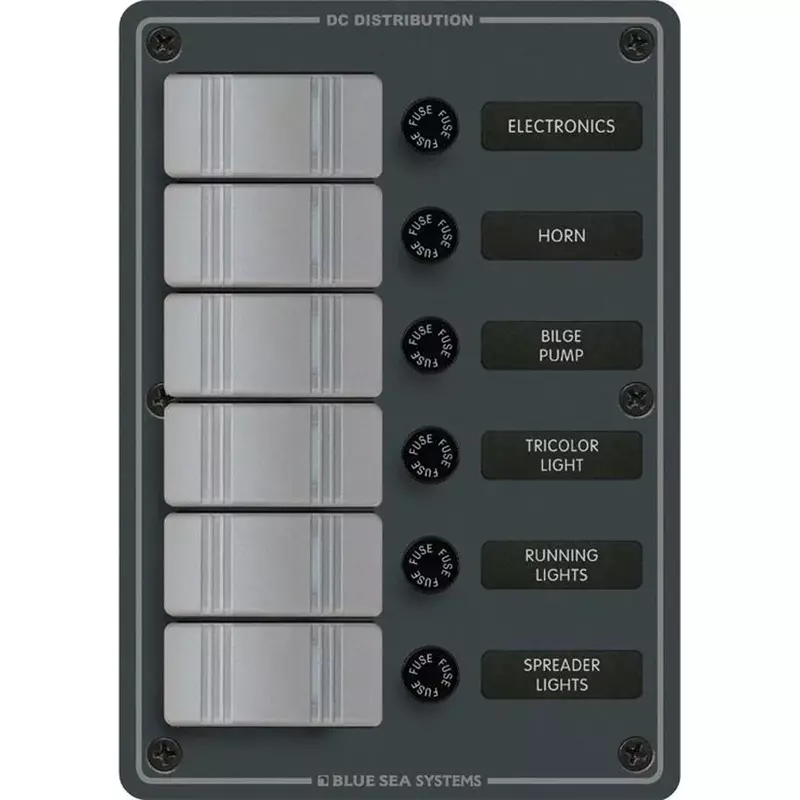

Blue Sea 8053 Slate Grey - 6 Position - Vertical
Customize
8053 Slate Grey - 6 Position - Vertical. Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions. Designed for flybridge and open cockpit applications. ON-OFF Contura Switches with ON indicating LEDs embedded in switches. Watertight mounting gasket included. Countersunk mounting holes throughout. Two-part polyurethane slate gray finish. Industry standard height and width. Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion. Completely wired and ready to install. Includes (6) 5021 Panel Mount AGC/MDL Fuse Holder; (1) 8030 Basic DC Panel Label Set - 30 Labels; (6) 8230 Contura Switch SPST Gray - OFF-ON. NOTE: Waterproof panel labels are not backlit. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Included components: Manual
- The Package Width Of The Package Is 14 Inches
- The Package Length Of The Product Is 15 Inches
- The Package Height Of The Product Is 13 Inches
- Country Of Origin : United States
Materials & Construction
- Color:Slate Grey
- Material:Stainless Steel
- Outer Material:Stainless Steel
Product Details
- Ac/dc:Dc
- Actuator Type:Mechanical Toggle Switch
- Circuit Type:versatile
- Connectivity Protocol:X-10
- Contact Type:Normally Open
- Control Method:Touch
- Current Rating:20 Amps
- Global Trade Identification Number:00632085080532
- International Protection Rating:IP54
- Max Breaker Quantity:6
- Model Name:8053
- Number of Items:1
- Number of Positions:6
- Operation Mode:ON-OFF
- Terminal:Physical
- Unit Count:1 Count
- Voltage:12/24v
- Waterproof:Resistant
Sizing & Dimensions
- Height:12 inches
- Length:4 inches
- Product Dimensions:4 x 7 x 12 inches
- Size:One Size
- Weight:5.60 ounces
- Width:7 inches
Technical Specifications
- Current Rating Detail:20 Amps
