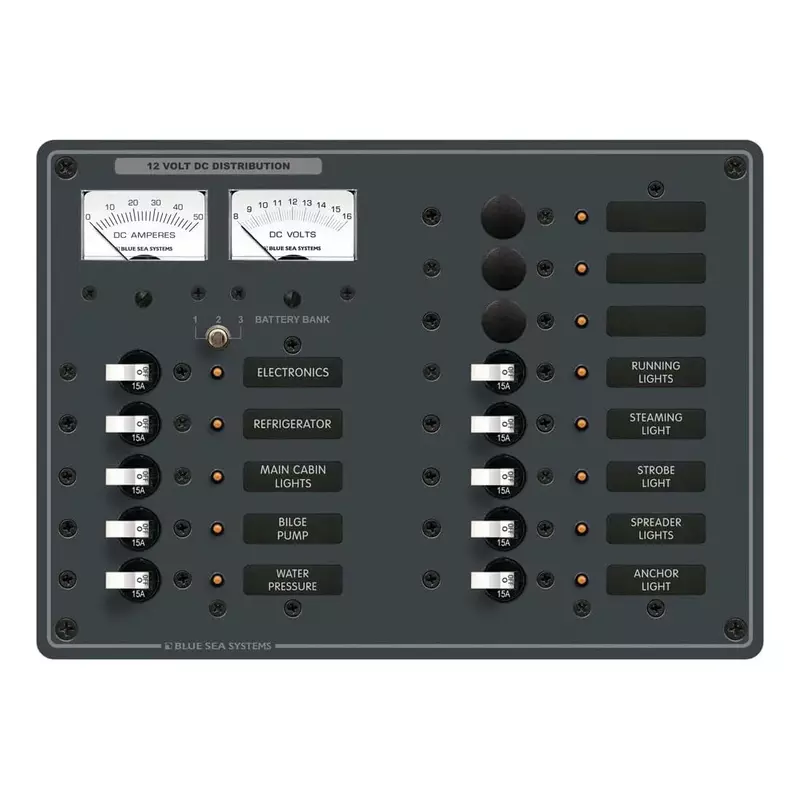

Blue Sea 8068 DC 13 Position Toggle Branch Circuit Breaker Panel - White Switches
Customize
8068 DC 13 Position Toggle Branch Circuit Breaker Panel - White Switches Features: All positive, negative and grounding buses installed, fully pre-wired Includes set of 30 common DC labels Label backlighting pre-installed All LEDs installed Detailed installation instructions and cutout template 8028, 8-16 Volt DC Micro Voltmeter 8041, 0-50 Amp DC Micro Ammeter 10 15A Single Pole Circuit Breakers Toggle Branch Circuit Breaker Panel Specifications: Positions: 13 Nominal Voltage: 12v DC Maximum Amperage: 50A Height: 7.5" Width: 10.5" Depth: 3" Weight: 4.2 lbs Included: (10) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A (1) 8030 Basic DC Panel Label Set - 30 Labels (1) 8028 DC Micro Voltmeter - 8 to 16v DC (Meter) (1) 8041 DC Micro Ammeter - 0 to 50A w/ Shunt (Meter) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. AC/DC: DC. Max Breaker Quantity: 13. Voltage: 12v.
- "ON" indicating LEDs installed in all circuit positions
- Panels with meters include toggle switch for mounting up to 3 battery banks
- All positive, negative and grounding buses installed, fully pre-wired
Specifications:
| Materials & Construction | |
| Color | White |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Ac/dc | Dc |
| Country of Origin | China |
| Item model number | 8068 |
| Number Of Circuits | 13 |
| Phase Type | Single Phase |
| Product Dimensions | 8 x 4 x 1 inches; 2.93 Pounds |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 8 inches |
| Product Dimensions | 8 x 4 x 1 inches |
| Size | 13 Position |
| Weight | 2.93 pounds |
| Width | 4 inches |
| Technical Specifications | |
| Max Breaker Quantity | 13 |
| Maximum Amperage | 50A |
| Voltage | 12v |
