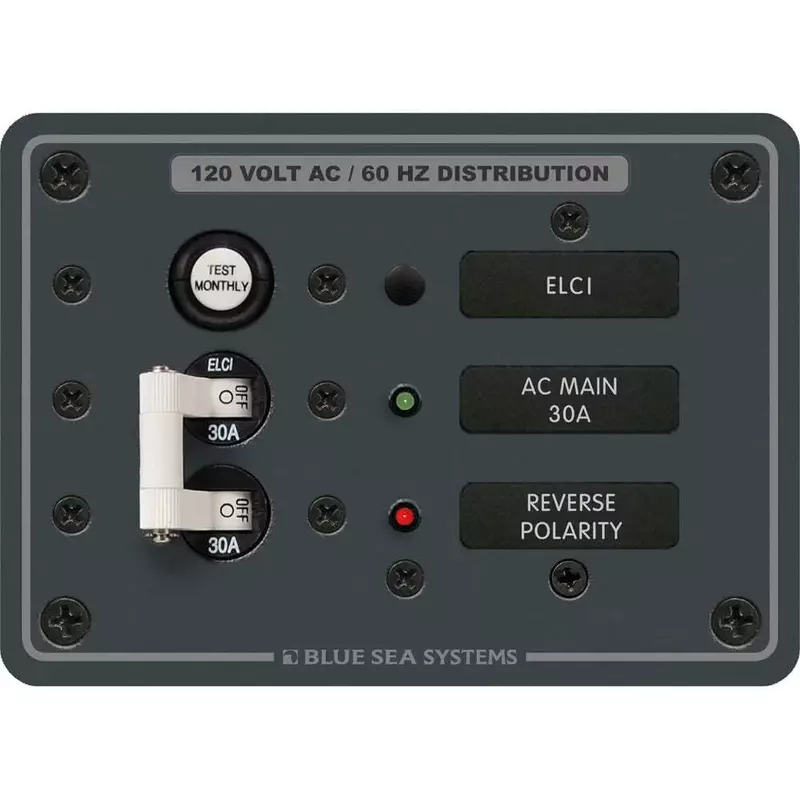

ELCI Main 30A Double Pole One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection Red " Reverse Polarity" LED All circuit label positions are backlit "ON" indicating LEDs Specifications Nominal Voltage 120V AC Leakage Trip Amps 30mA Height 5.25" (133.35mm) Width 3.75" (95.25mm) Depth 3.50" (88.9mm) Weight 2.25lb (1.02kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov ., AC/DC: AC , Voltage: 120v Blue Sea Systems - 8100-BSS Panel 120VAC ELCI Main 30A (10EA) Features and Specifications: Panel mount design; Circuit breaker type: Standard; Current rating: 30 Amps; Number of poles: 3; Provides 30 mA leakage-trip protection; Nominal Voltage: 120V AC.
| Product Details | |
| Ac/dc | Ac |
| Circuit Breaker Type | Standard |
| Current Rating | 30 Amps |
| Item model number | 10 |
| Mounting Type | Panel Mount |
| Number Of Poles | 3 |
| Voltage | 120v |
| Sizing & Dimensions | |
| Product Dimensions | 10 x 0.01 x 10 inches |
| Weight | 0.16 ounces |
| Technical Specifications | |
| Leakage Trip Amps | 30mA |
| Nominal Voltage | 120V AC |
