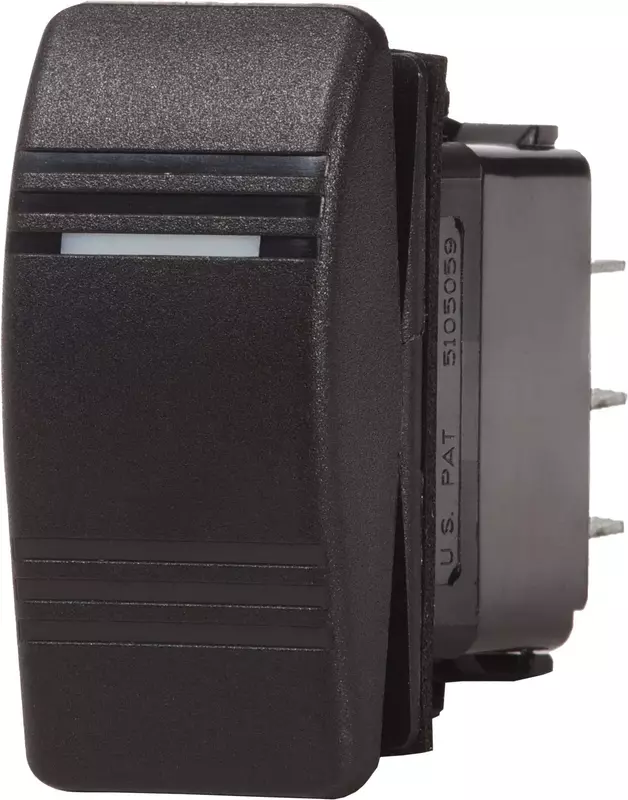

Blue Sea 8289 Water Resistant Contura III Switch - DPDT (ON)-OFF-ON - Black
Blue Sea Systems 8289 Contura water-resistant DPDT (ON)-OFF-ON switch, black. Mounts in Contura water-resistant panels; vibration, shock, thermoshock, moisture and salt spray resistant; ignition protected; ideal for marine use.
$34.99 $34.99
Customize
Available Quantity
4 Product Details
Water Resistant Contura Switch - DPDT (ON)-OFF-ON - Black. Features: Vibration, shock, thermoshock, moisture, and salt spray resistant. Specially manufactured for mounting in Blue Sea Systems' water-resistant panels. Ignition Protected - Safe for installation aboard gasoline-powered boats. Meets UL1500 and ISO8846 ignition protection requirements. Vibration, shock, thermoshock, moisture and salt spray resistant. Specially manufactured for mounting in Blue Sea Systems" water resistant panels All circuit label positions are backlit on standard panels - No kit required. Max. Operating Current: 20A @ 12V DC, 15A @ 24V DC. Position to Light LED: ON. Pole Throw: Double Pole Double Throw. Action ( ) = momentary: (ON)-OFF-ON. Number of LEDS: 1.
- Mounts in Blue Sea Systems Contura Water Resistant Panels and Contura Switch Mounting Panels
- Vibration, shock, thermoshock, moisture and salt spray resistant
- CE Marked, Meets UL 1500 and ISO 8846 external ignition protection requirements
- Max. Operating Current: 20A @ 12V DC, 15A @ 24V DC
- Position to Light LED: ON, Pole Throw: Double Pole Double Throw, Action ( ) = momentary: (ON)-OFF-ON, Number of LEDS: 1
Specifications:
| Materials & Construction | |
| Color | Black |
| Product Details | |
| Action | (On)/Off/on |
| Actuator Type | Hinge Lever |
| Number of Positions | 2 |
| Operation Mode | ON-OFF |
| Style | Dpdt, (On)-off-on |
| Throw/Pole | Dpdt |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 1 inches |
| Product Dimensions | 1 x 3 x 1 inches |
| Size | One Size |
| Weight | 1.6 ounces |
| Width | 3 inches |
| Technical Specifications | |
| Connectivity Protocol | X-10 |
| Current Rating | 20 Amps |
| International Protection Rating | IP44 |
| Lower Temperature Rating | 1 Degrees Celsius |
| Operating Voltage | 24 Volts |
| Terminal | Dpdt |
| Upper Temperature Rating | 1 Degrees Celsius |
| Warranty | Warranty |
