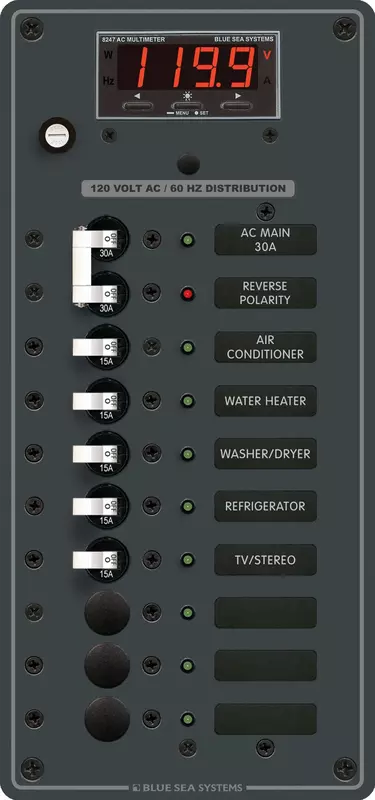

Blue Sea Systems 8406 AC Main + 8 Positions
Customize
Main + 8 Positions (1) 30A Double Pole Circuit Breaker (5) 15A Single Pole Circuit Breaker (1) 8247 AC Digital Multimeter w/ Alarm Red reverse polarity indicating LED All hot, neutral and safety ground buses installed, fully pre-wired All circuit label positions are backlit on standard panels - No kit required "ON" indicating LEDs installed in all circuit positions Maximum panel amperage - 50 Amperes MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance Two-part polyurethane slate gray finish Heavy 1/8" aluminum 5052 alloy Industry standard height and width Countersunk mounting holes throughout Detailed installation instructions and cutout template included Includes set of 30 common Large Format Labels Over 500 individual Labels available WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov . Red reverse polarity indicating LED All hot, neutral and safety ground buses installed, fully pre-wired Maximum panel amperage - 100 Amperes.
- Red reverse polarity indicating LED
- All hot, neutral and safety ground buses installed, fully pre-wired
- Maximum panel amperage - 100 Amperes
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| AC Adapter Current | 100 Amps |
| Color | Black |
| Global Trade Identification Number | 00632085084066 |
| Included Components | Blue Sea 8406 AC Main + 8 Positions |
| Model Name | Blue Sea 8406 AC Main + 8 Positions |
| Number of Items | 1 |
| Phase Type | Single Phase |
| Size | One Size |
| UPC | 632085084066 |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 5 inches |
| Length | 11 inches |
| Product Dimensions | 11 x 9 x 5 inches |
| Size | One Size |
| Weight | 3.33 pounds |
| Width | 9 inches |
| Technical Specifications | |
| AC Adapter Current | 100 Amps |
| Ac/dc | Ac |
| Max Breaker Quantity | 8 |
| Phase Type | Single Phase |
| Voltage | 120v |
