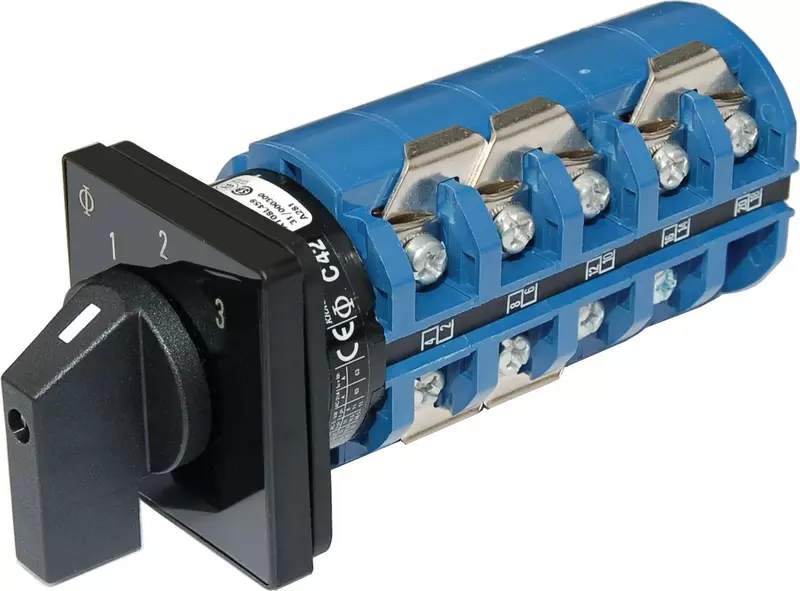

Blue Sea Systems 9077 AC Rotary Switch - OFF + 3 Positions 240V AC 65A
Customize
9077 Switch, AC 240VAC Amperes 65 Positions 3+OFF Poles 3 Switches 3 - 120/240 Volt AC sources Switches both lines (hot) and neutral Compact solution when circuit protection is provided elsewhere Allows connecting one of two different AC sources to one circuit Mounts in panels up to 0.16" (4.00mm) thick Heavy duty industrial rated switch Intuitive function - One hand operation UL listed 600 Volt AC max WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov ., Color: Black. Product Dimensions: 7 x 5 x 4 inches. Item Weight: 1 pounds. Operating Voltage: 240 Volts. Current Rating: 65 Amps. Actuator Type: Rotary. Circuit Type: 3-way. Contact Type: Normally Open. Connector Type: Crimp. Terminal: Screw. Contact Material: Metal. International Protection Rating: IP65. Number of Positions: 3. Control Method: Touch. Connectivity Protocol: X-10.
- Switches 2 - 120/240 Volt AC sources
- Compact solution when circuit protection is provided elsewhere
- Visible indication of blown condition
- AGC 25 per retail package
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Metal |
| Outer Material | Metal |
| Product Details | |
| Actuator Type | Rotary |
| Circuit Type | 3-way |
| Connectivity Protocol | X-10 |
| Connector Type | Crimp |
| Contact Material | Metal |
| Contact Type | Normally Open |
| Control Method | Touch |
| International Protection Rating | IP65 |
| Item model number | 9077 |
| Model | ROTARY SWITCH 240V OFF+3 3POLE |
| Number of Items | 1 |
| Number of Positions | 3 |
| Operation Mode | Off |
| Terminal | Screw |
| Unit Count | 1.0 Count |
| Wattage | 15600 watts |
| Sizing & Dimensions | |
| Height | 4 inches |
| Length | 7 inches |
| Product Dimensions | 7 x 5 x 4 inches |
| Weight | 1 pounds |
| Width | 5 inches |
| Technical Specifications | |
| Actuator Type | Rotary |
| Circuit Type | 3-way |
| Connectivity Protocol | X-10 |
| Connector Type | Crimp |
| Contact Material | Metal |
| Control Method | Touch |
| Current Rating | 65 Amps |
| Number of Positions | 3 |
| Operating Voltage | 240 Volts |
| Terminal | Screw |
