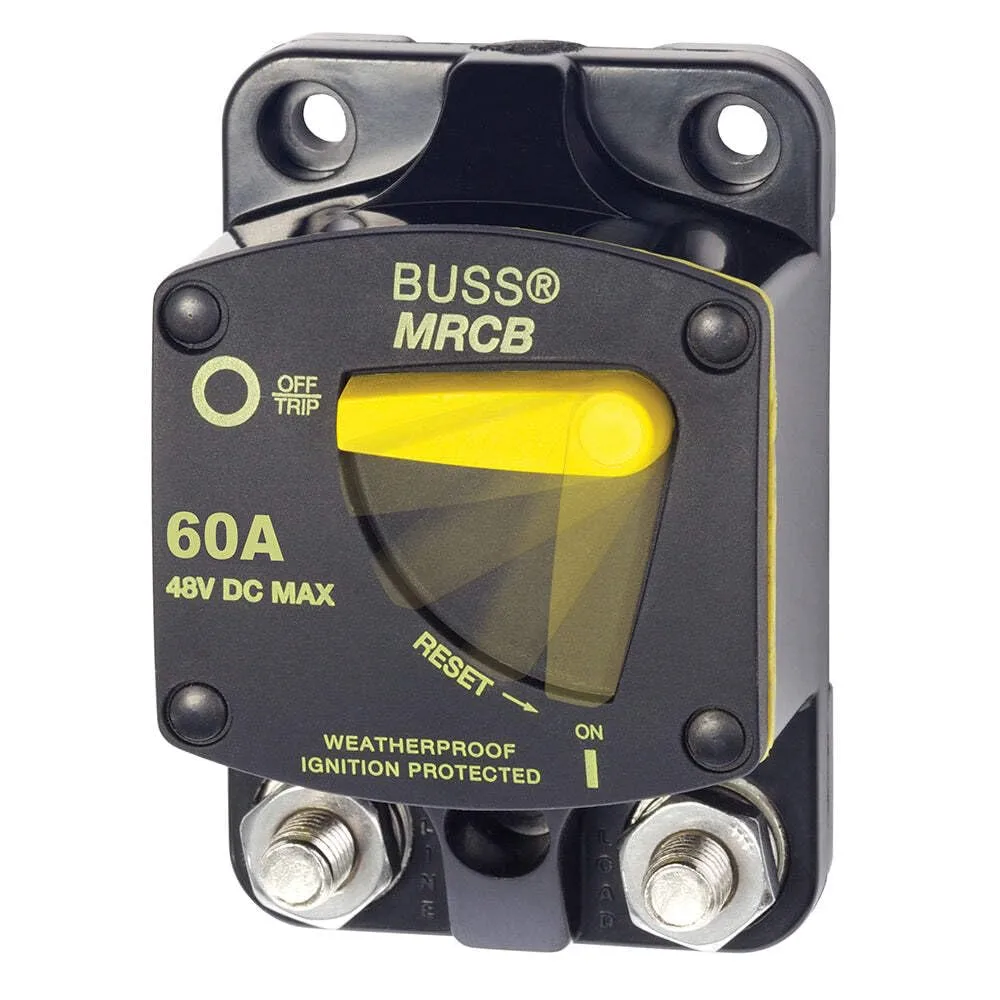

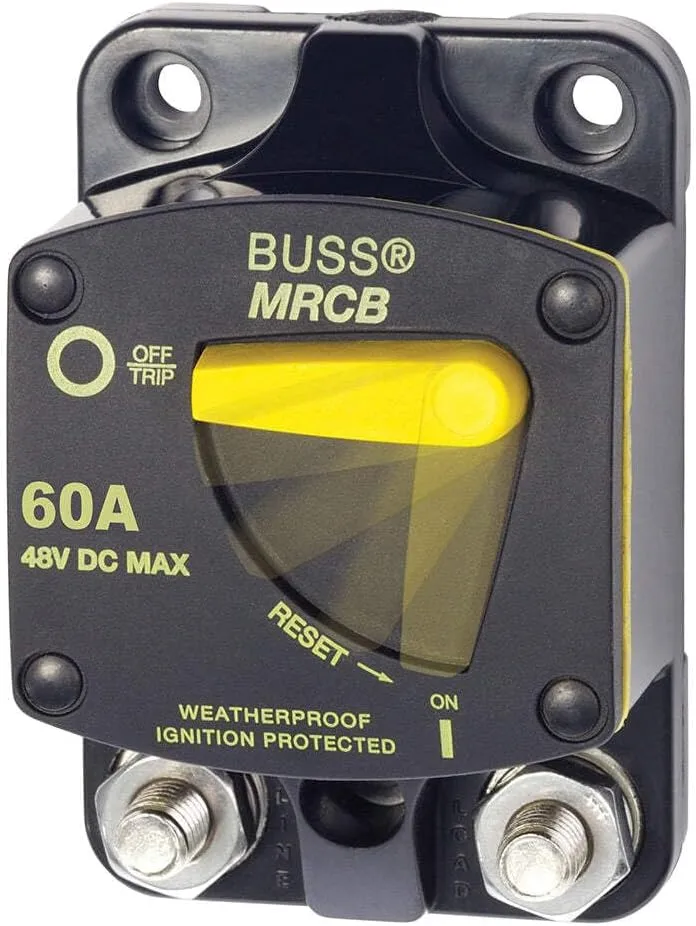

Blue Sea 7140 187 - Series Thermal Circuit Breaker - 60Amp

187 - Series Thermal Circuit Breakers - Surface Mount. 60 Amp Circuit Breaker PN: 7140. Features: Combines switching and circuit protection into a single device. All components meet SAE J1171 external ignition protection requirements. Clear, single lever operation; "Trip Free" design cannot be held "ON" during fault current condition. Waterproof. Recessed mounting holes for clean appearance. Large clearance around terminal studs accepts heavy gauge wire lugs. Robust 5/16 terminals provide high torque connections. Large lever with vertical/horizontal orientation provides indication of trip status. Ignition protected - safe for installation aboard gasoline powered boats. Specifications: Circuit Breaker Class: Type III - Switchable / Manual Reset - Trip Free. Type: Thermally Responsive Bi-Metal Blade. Case Material: Thermoset Polyester. Voltage Rating: 48 Volts DC Maximum. Interrupt Rating: 5,000 Amperes @12 Volts DC; 3,000 Amperes @24 Volts DC; 1,500 Amperes @42 Volts DC. Operating Temperature Range: -25°C to +82°C. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Amperage: 60a. Great Product.
