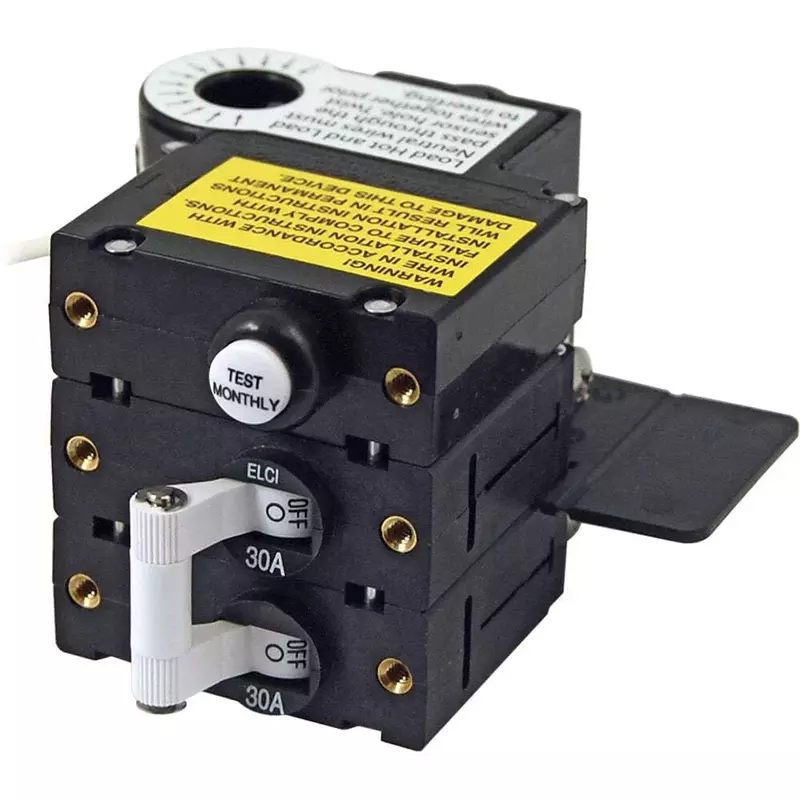

Blue Sea A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A
Customize
A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A. Features: Trips on short circuit, overload, or leakage to ground. Front panel mount—installed in a power distribution panel. Specifications: Amperage: 30A. Actuator Style: Toggle. Poles: 2. Ignition Protected: Yes. Max Voltage: 240VAC/120VAC per pole. Circuit Breaker Type: Magnetic Hydraulic - trip free. Interrupt Capacity: 5000A. Minimum Operating Temperature: -35 degrees C. Max Operating Temperature: 65 degrees C. Leakage Trip Amps: 30mA. Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection. Meets UL 1500 external ignition protection requirements. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Front panel mount-installed in a power distribution panel
- Trips on short circuit, overload, or leakage to ground
- Meets UL 1500 external ignition protection requirements
- Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Circuit Breaker Type | Standard |
| Color | Black |
| Current Rating | 32 Amps |
| Global Trade Identification Number | 00632085310615 |
| Included Components | Great Product |
| Item Dimensions Lx Wx H | 6 x 5 x 3.75 inches |
| Item Package Dimensions L x W x H | 6.18 x 5.08 x 3.74 inches |
| Material | Plastic |
| Model Name | 3106100 |
| Mounting Type | Panel Mount |
| Number Of Poles | 2 |
| Part Number | 3106100-BSS |
| Size | Standard |
| UPC | 632085310615 |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 3.75 inches |
| Length | 6 inches |
| Product Dimensions | 6 x 5 x 3.75 inches |
| Size | Standard |
| Weight | 0.79 pounds |
| Width | 5 inches |
| Technical Specifications | |
| Actuator Style | Toggle |
| Ignition Protected | Yes |
| Interrupt Capacity | 5000A |
| Leakage Trip Amps | 30mA |
| Max Operating Temperature | 65 degrees C |
| Max Voltage | 240VAC/120VAC per pole |
| Minimum Operating Temperature | -35 degrees C |
