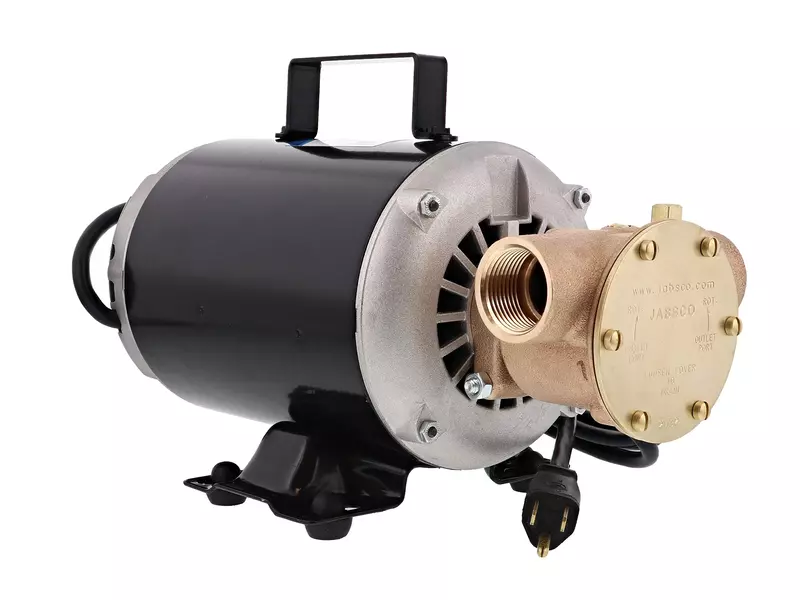

Jabsco 6050-0003 Marine Series Utility General Purpose Pump, 110-Volt, Nitrile Impeller, Open Drip Proof Moto Non-CE
Customize
The 6050 Series Pumps are the highest capacity self-priming portable utility pumps offered by Jabsco. The 6050-0003 is a versatile utility pump utilizing decades of impeller pump technology matched to a ½ HP electric motor to create a self-priming pump capable of pumping several different types of fluid as well as small suspended particles such as sand and silt. Typical applications include: Marine (bait tank circulation; washdown, utility dockside pump); Industrial (industrial filling systems; utility shop pump; transfer distilled water; recharge water softeners; ice water recirculation; hydro-static pressure testing; sump pumping); Food, Beverage & Dairy (circulate cooling water; defrost refrigeration coils; fill drums; wash down equipment and floors; utility pump); Home (fill and empty tubs, pools; empty basements and cesspools; water systems; water lawns and gardens; remove water from low areas; recharge water softeners); Plumbing (empty clogged drains; empty sumps, sinks and tubs; pump out water closets); Farm (fill water tanks; pump out silo pits (liquid manure); flush and clean animal pens); Contractors (remove water from excavations; supply water to mortar boxes; cement mixing; washdown equipment). Features include bronze pump head, nitrile impeller suitable for fresh and salt water and light oils, open drip proof motor with thermal overload protection, 8' power cord, 1" NPT internal ports, and replaceable wearplate. Performance: 23 GPM at 10 ft of head, ~22 GPM at 20 ft of head.
- 115/230 VAC, with 8 foot cord and plug (wired for 115VAC operation), 35-1/2 lbs. (approx.) (16.1 kg)
- Lip type shaft seal, 3/4 HP open drip proof (ODP) motor, overload protected, 1725 RPM, 60 Hz, single phase
- Recommended for liquid temperatures between 50° to 180°F (10° to 83°C), Replaceable wearplate
- Bronze impeller body, JABSCO Nitrile Impeller for fresh and salt water as well as diesel, light oils, and antifreeze transfer
- 23 GPM (87 LPM) at 10’ (3m) of head, 1" NPT internal ports
Specifications:
| Materials & Construction | |
| Color | Bronze |
| Impeller Material | Nitrile |
| Material | Plastic |
| Outer Material | Plastic |
| Pump Head Material | Bronze |
| Product Details | |
| Included Components | Pump |
| Item Package Quantity | 1 |
| Model Number | Jabsco 6050-0003 |
| Part Number | 6050-0003 |
| Style | Above Ground |
| Sizing & Dimensions | |
| Height | 12 inches |
| Length | 13 inches |
| Product Dimensions | 13 x 12 x 12 inches |
| Size | No Size |
| Weight | 8 pounds |
| Width | 12 inches |
| Technical Specifications | |
| Amperage Rating | 10 A |
| Frame Type | 56C |
| GPM @ 10 Feet Of Head | 23.0 |
| GPM @ 20 Feet Of Head | 22.0 |
| Maximum Flow Rate | 23.0 GPM |
| Maximum Lifting Height | 10 Feet |
| Phase | Single |
| Power Source | Corded Electric |
| Voltage | 115 Volts |
| Warranty | Manufacturer |
