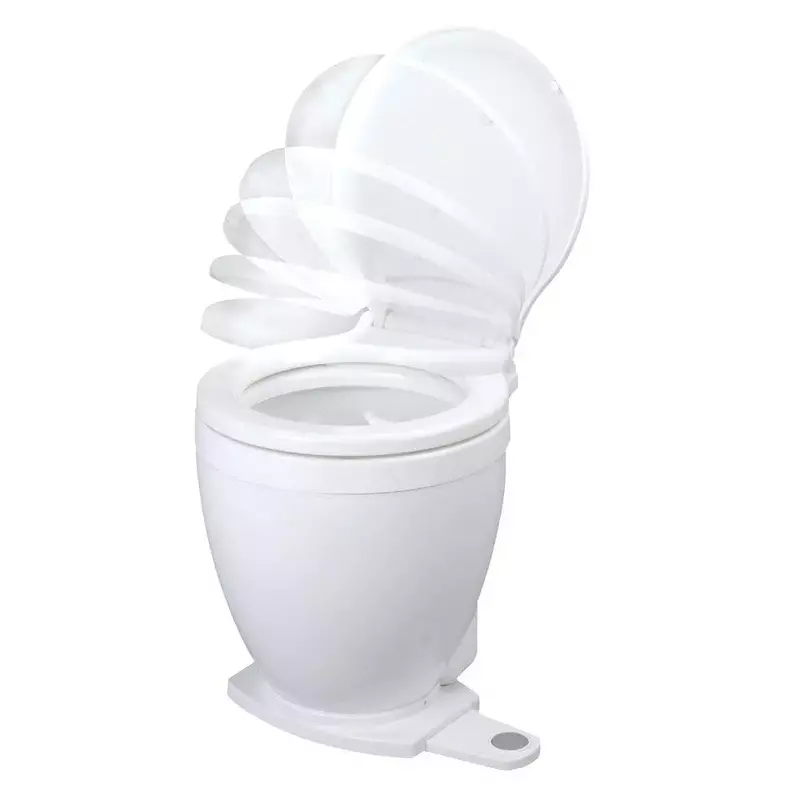

Jabsco Lite Flush Compact Marine Electric Toilet with Foot Control 12 Volts
Customize
The JABSCO Lite Flush Electric 12V toilet with footswitch is a compact marine electric toilet engineered for easy retro-fit into existing manual toilet footprints. It combines low power and water consumption with an integral rinse and waste pump system and a simple foot-operated switch: press once to fill the bowl, press again to flush. The unit shares footprint, fixing points and hose attachments with Jabsco manual toilets for straightforward installation. Key features include lightweight construction with a ceramic inner and plastic outer, quiet and efficient flush pump technology, a self-priming rinse pump, an internally mounted macerating waste pump, low water usage (1.2 litres / 1.3 US Quarts per flush), low power consumption, an integrated rinse pump for compactness, and a slow-close seat and lid. NOTE: Designed to flush standard grade toilet tissue and waste only — not for wet wipes, baby wipes, or sanitary products. WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
- Internally mounted, high speed, non-clogging, centrifugal, waste macerating pump driven by powerful 240 watt, 12 volt dc, permanent magnet motor with ball bearings and robust ceramic seal, discharges up to 5ft (1.5m) above the base of the toilet.
- Raw Water Rinse pump inlet - ¾" (19mm) hose tails. Flush pump discharge - 1½" (38mm) hose tail.
- Jabsco, self-priming rinse pump up to 3m (10ft), dry running, diaphragm water pump driven by 12 volt dc, permanent magnet, ball bearing motor.
- Integral one touch 'Press and Release' switch pad mounted on floor, sealed for life.
Specifications:
| Materials & Construction | |
| Color | One |
| Material | Blend |
| Product Details | |
| Included Components | Jabsco 58500-0012, Lite Flush Compact Marine Electric Toilet with Foot Control |
| Number of Items | 1 |
| Operation Method | Electric |
| Part Number | 58500-0012 |
| Size | 12 Volt |
| Sport Type | Boating |
| Style | 12 Volts |
| Type | Toilet |
| Volts | 12v |
| Sizing & Dimensions | |
| Height | 16 inches |
| Item Dimensions Lx Wx H | 20 x 20 x 16 inches |
| Item Package Dimensions L x W x H | 25 x 25 x 25 inches |
| Length | 20 inches |
| Weight | 31.2 pounds |
| Width | 20 inches |
| Technical Specifications | |
| Included Components | Jabsco 58500-0012, Lite Flush Compact Marine Electric Toilet with Foot Control |
| Style | 12 Volts |
