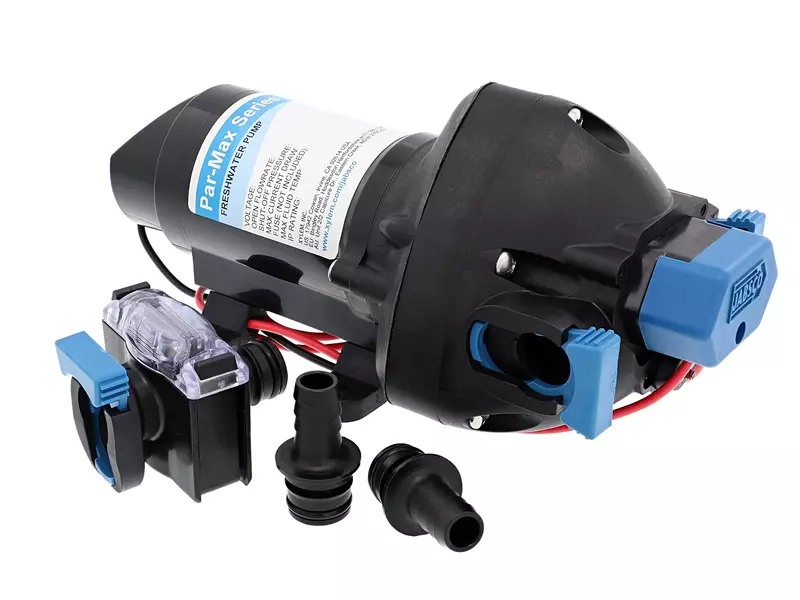

Jabsco Par-Max 3 Water Pressure Pump - 24V - 3 GPM - 40 PSI
Customize
Par-Max 3 Water Pressure Pump - 24V - 3 GPM - 40 PSI. HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance. Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion. Features: Co-molded diaphragm technology for long life and durability; HD models feature heavy duty motors and cast aluminum lower housings which allow for long life, even at high pressures; efficient and quiet operation; integrated, sealed pressure switch for on-demand operation; self-priming allows for installation versatility; can run dry without damage; quick connect ports for ease of installation, servicing, and maintenance; vibration dampening mounting feet; equipped with integrated bypass module to reduce cycling and provide smoother flow. Certifications: CE, ISO8846, RCM. Ingress Protection: IPX6.
- Great Product
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Included Components | Great Product |
| Max Psi | 40 |
| Maximum Flow Rate | 3 Gallons Per Minute |
| Model Number | 31395-4024-3A |
| Power Source | Corded Electric |
| Style | Diaphragm |
| Voltage | 24 Volts (DC) |
| Warranty | Warranty |
| Sizing & Dimensions | |
| Height | 5.51 inches |
| Length | 15.43 inches |
| Product Dimensions | 15.43 x 6.22 x 5.51 inches |
| Size | One Size |
| Weight | 4.873 pounds |
| Width | 6.22 inches |
| Technical Specifications | |
| Certifications | CE, ISO8846, RCM |
| Dry self-priming capability | 7ft min (2.13m/min) |
| Fluid temperature range | 32°F – 140°F (0°C – 60°C) |
| Gallons Per Minute | 3 Gpm |
| Ingress Protection | IPX6 |
| Max inlet pressure | 30 PSI (2.1 Bar) |
| Max Psi | 40 |
| Volts | 24v |
