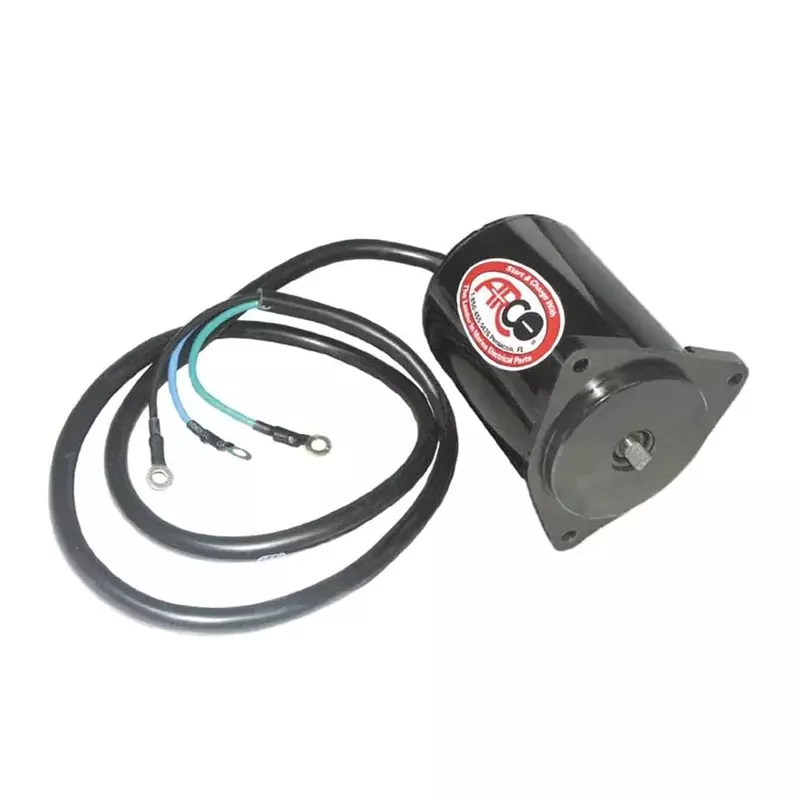

Original Equipment Quality Replacement Tilt Trim Motor for early Yamaha models (fits 70, 90, 115, 150–200 HP). Replacement tilt/trim motor features 3-wire connection, 3-bolt mount, ring terminal ends, 4-mm thick shaft blade with 68.3-mm mounting collar and includes O-ring. Motor shafts are induction case hardened at bearing surfaces for superior wear resistance and epoxy powder coated for insulation protection. Tilt trim motors are dynamically tested to ensure out-of-the-box performance. ARCO recommends cleaning all connections to avoid increased resistance. Warranty: 12 months for leisure use, 90 days for commercial/racing applications (register within 30 days for an additional year of warranty on rotating electric ARCO products). Replaces Yamaha OEM numbers including 6E5-43880-01, 6E5-43880-02, 6H1-43880-00, 688-43880-10, 688-43880-11 and Sierra numbers 18-6259 and 18-6821. For returns or issues contact manufacturer directly.
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Product Details | |
| Included Components | Great Product |
| Model Name | 6267 |
| Number of Items | 1 |
| Part Number | 6267 |
| Size | Standard |
| Style | ARCO Marine 6267 Original Equipment Quality Replacement Yamaha Tilt Trim Motor - 6267 |
| Sizing & Dimensions | |
| Height | 4 inches |
| Item Dimensions Lx Wx H | 10 x 5 x 4 inches |
| Length | 10 inches |
| Product Dimensions | 10 x 5 x 4 inches |
| Weight | 6 pounds |
| Width | 5 inches |
| Technical Specifications | |
| EU Spare Part Availability Duration | 5 Years |
| Fuel Type | Gasoline |
| Maximum Horsepower | 200 Horsepower |
| Mounting Type | Transom Mount |
| Operation Mode | Electric |
| Warranty Description | Warranty |
