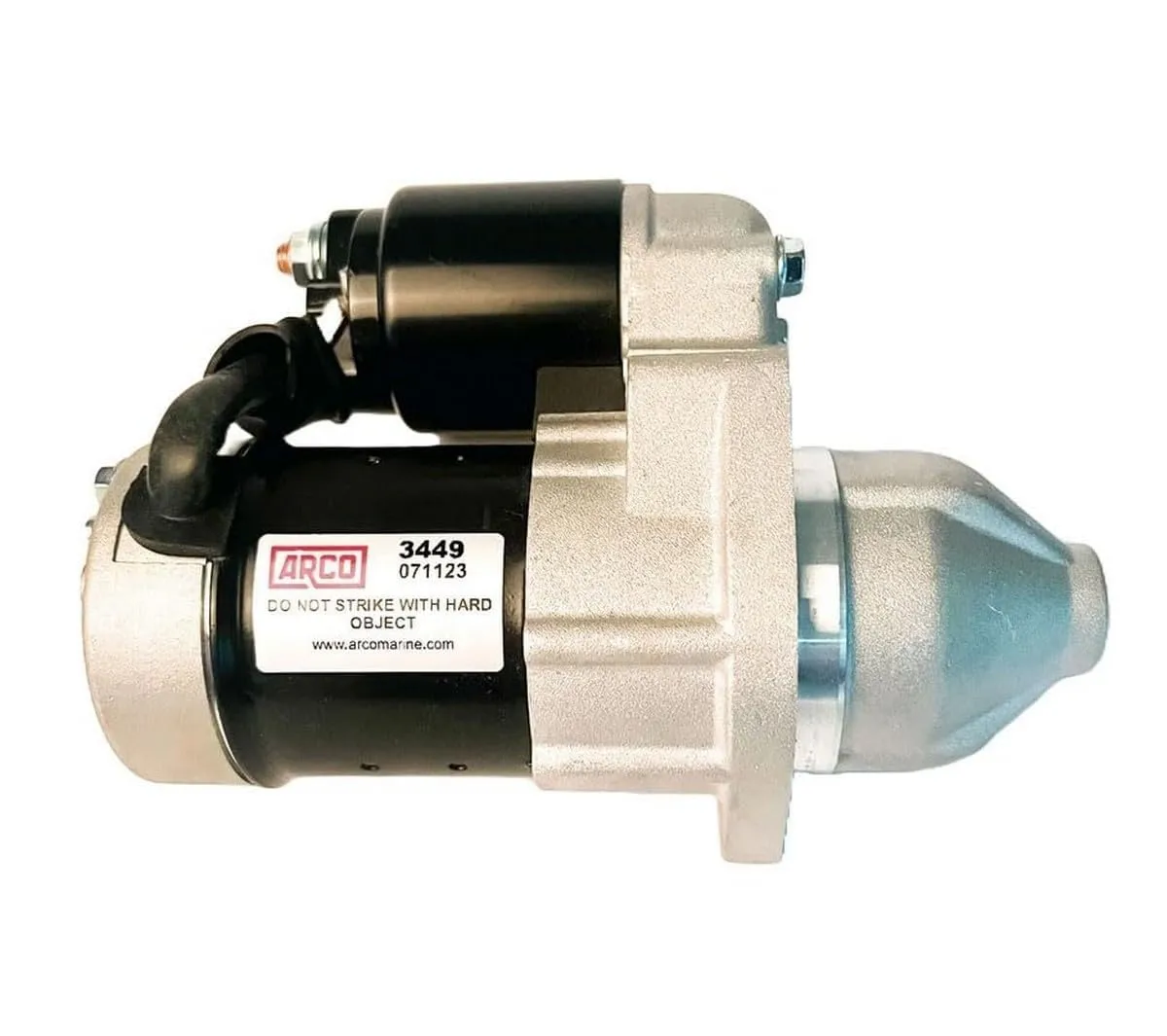

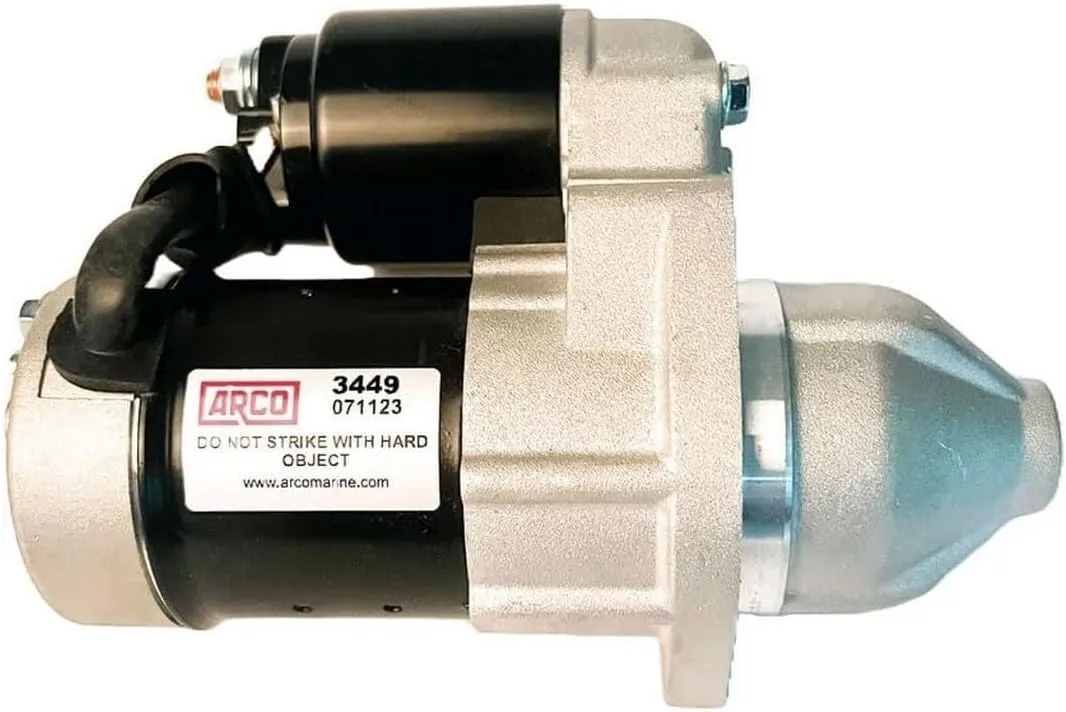

ARCO Marine Original Equipment Quality Replacement Suzuki & OMC Outboard Starter - 2005-2018 Models
Customize
Original Equipment Quality Replacement Suzuki & OMC Outboard Starter - 2005-2018 Models. Replacement outboard starter that will fit 9.9HP-20HP, 40HP-60HP 2005-2018. ARCO advises using a fully charged battery - A weak battery can damage the starter and starter solenoid. And to also clean all connections - A corroded connection creates resistance, lowering the amperage required for an efficient starting circuit. Features: Dynamically tested and packaged for out-of-the-box performance. Nickel-coated and/or epoxy-painted to reduce corrosion. Sealed to minimize water intrusion. Designed for long life and optimum performance. Armatures are tested to withstand 50 times operating voltages (12 volts). Fits Johnson Evinrude outboard engines: Replaces part number 5036244. Fits Suzuki outboard engines: 9.9HP-20HP, 40HP-60HP (replaces part numbers: 31100-94J22, 31100-94J21, 31100-94J20, 31100-94J10). Warranty Information: When properly installed, all ARCO products are warrantied against defects in materials and workmanship for a period of 12 months for leisure use and 90 days for commercial or racing applications. Add an extra year of warranty to your rotating electric ARCO product (Tilt/Trim Motors, Alternators, Outboard Starters, and Inboard Starters) when you register your product within 30 days of purchase at arcomarine.com/product-registration. Package and shipping notes: Packaged dimensions ~10 x 7 x 5 inches, package weight ~7 pounds. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
- Model name: 3449
- Item weight: 7 pounds
- Dimensions: 6 x 1E+1 x 4 inches
- Material: Metal
- Voltage: 12 volts direct current
- Phase type: Single Phase
- Product type: Motor starter
- Item type keyword: Outboard starter motor
- Fits Suzuki outboard engines: 9.9HP-20HP, 40HP-60HP (replaces part numbers: 31100-94J22, 31100-94J21, 31100-94J20, 31100-94J10)
- Fits Johnson Evinrude outboard engines: Replaces part number 5036244
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Included Components | Great Product |
| Model Name | 3449 |
| Number of Items | 1 |
| Phase Type | Single Phase |
| Size | Standard |
| Style | ARCO Marine 3449 Outboard Starter for Suzuki/OMC 9.9HP-20HP, 40-50HP, 60HP (2005-2018) |
| Voltage | 12 Volts (DC) |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 4.75 inches |
| Length | 10.25 inches |
| Product Dimensions | 10.25 x 6.75 x 4.75 inches |
| Size | Standard |
| Weight | 6.6 pounds |
| Width | 6.75 inches |
| Technical Specifications | |
| Warranty | Warranty |
