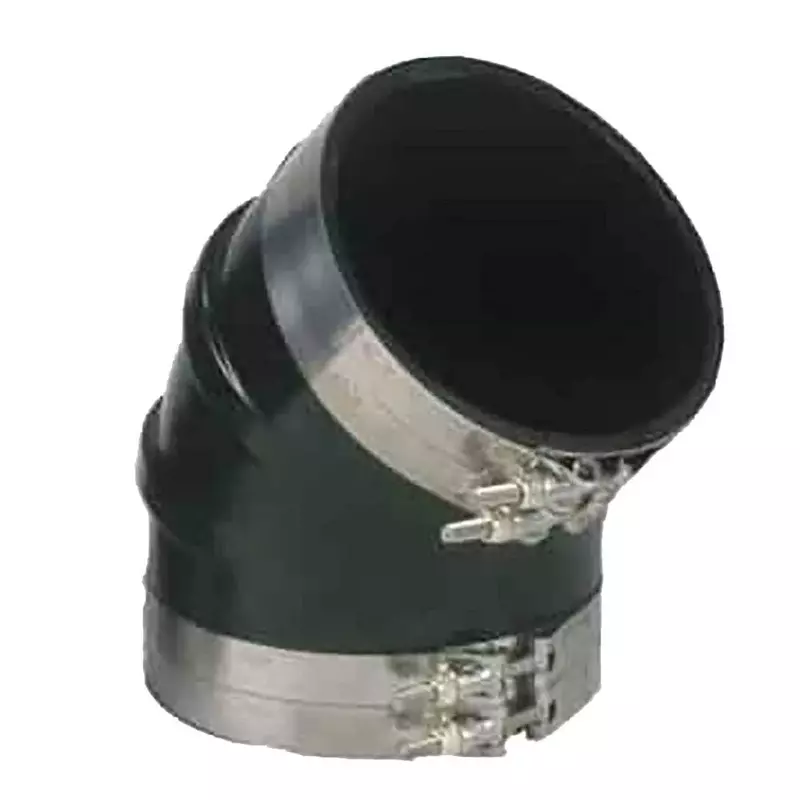

3" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt Clamps Trident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside. Features: Four stainless steel clamps are included This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards) Black high-temp EDPM rubber Construction: Color: Black Reinforcement: Reinforcing ribs on 6” I.D. and above Temperature Range: up to 250°F (121°C) Specifications: Inner Diameter: (inch) 3” / (mm) 76.2 Outer Diamter: (inch) 3.5" / (mm) 88.9 A: (inch) 1.5” / (mm) 38.1 B: (inch) 1.5” / (mm) 38.1 C: (inch) 5.5” / (mm) 139.7 W: (inch) 0.25” / (mm) 6.35 Elbow Degree: 45 degrees Weight: (Lb/Ea) 0.6 / (Kg/Ea) 0.27, ID Diameter (inches): 3"
Specifications:
| Materials & Construction |
| Material | Plastic |
| Product Details |
| Global Trade Identification Number | 00704917000442 |
| Item model number | TRL-345-S/S |
| Sizing & Dimensions |
| Height | 0.98 inches |
| Length | 0.98 inches |
| Product Dimensions | 0.98 x 0.98 x 0.98 inches |
| Size | 3 inches |
| Weight | 0.01 ounces |
| Width | 0.98 inches |
