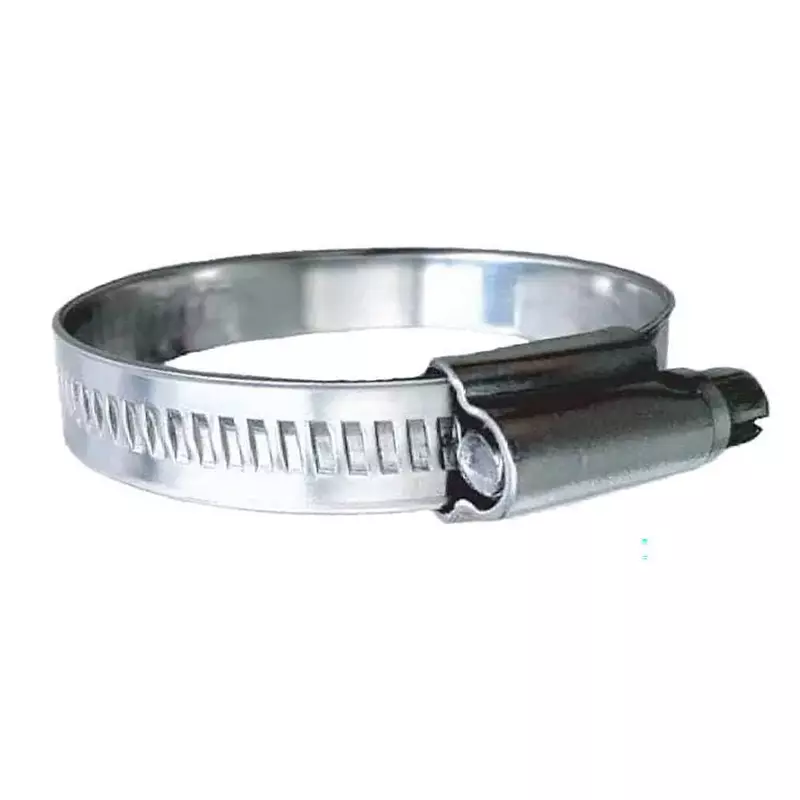

Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 15/32" Band - (1-1/2" - 2") Clamping Range - 10-Pack
Customize
316 SS Non-Perforated Worm Gear Hose Clamp - 15/32" Band - (1-1/2" - 2") Clamping Range - 10-Pack - SAE Size 24. Premium Marine Grade, all AISI 316 (high tensile strength) Stainless Steel “HD NON-PERF” Worm Gear Hose Clamp. The 11.7 mm (0.46") wide band is Non-Perforated and smooth on the inside with rolled edges to eliminate hose damage with increased clamping force. The high strength, compact, one piece 16 mm (0.63") wide housing provides one of the highest clamping force ratings of any worm gear style clamp. Features: 7 mm screw head for long service life and safety for most general-purpose hose applications and connections. Recommendations: measure hose O.D. before selecting clamp size for proper fit; double clamp on each hose end for critical applications; consider #720 Series wide band 316 SS T-Bolt Clamps for larger I.D. hoses (exhaust hoses, etc.). Construction: Band & Housing: 316 Stainless Steel 11.7 mm wide band – 0.9 mm thick; Screw Drive: 316 Stainless Steel 7.0 mm screw head. SAE Size: 24. Hose Inner Diameter (inch): 1-5/16" - 1-3/8". Clamping Range (inch): 1-1/2" - 2" / (mm) 38-50. Recommended Torque (in-lbs): 35-45.
- Great Product
Specifications:
| Materials & Construction | |
| Color | Multicolor |
| Material | Plastic |
| Product Details | |
| Included Components | Great Product |
| Model Name | 710-1381 |
| Number of Items | 1 |
| Part Number | 710-1381 |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 3 inches |
| Item Dimensions Lx Wx H | 3 x 3 x 3 inches |
| Item dimensions L x W x H | 3 x 3 x 3 inches |
| Item Package Dimensions L x W x H | 3 x 3 x 3 inches |
| Length | 3 inches |
| Product Dimensions | 3 x 3 x 3 inches |
| Weight | 9.6 ounces |
| Width | 3 inches |
