Dometic EnviroComfort ECD10K-HV AC Retrofit Kit - 10,000 BTU - 115V
Customize

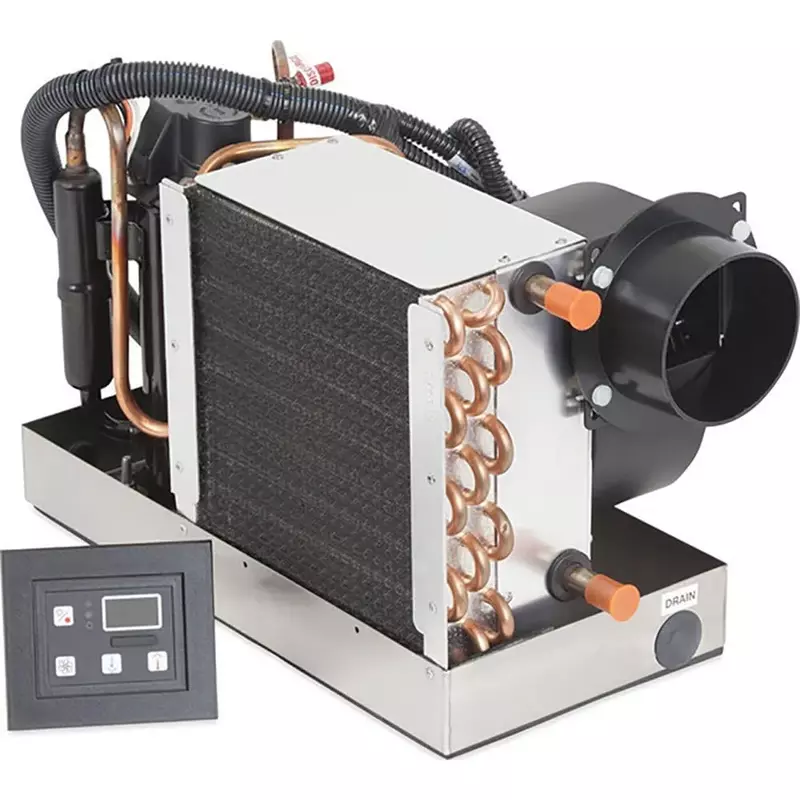

EnviroComfort ECD10K-HV AC Retrofit Kit - 10,000 BTU - 115V The Dometic Marine Air 10,000 BTU EnviroComfort Air Conditioning Retrofit Kit provides reverse-cycle cooling and heating capability so you stay comfortable onboard year-round. This 10,000 BTU unit replaces an older self-contained air conditioner of comparable capacity in the 8,000 to 11,000 BTU range. All units have high-velocity blowers with internal motors for a more compact installation footprint. The blower can be rotated to a horizontal or vertical position for greater installation flexibility. Units are built on an easy-to-plumb stainless-steel drain pan, and the pre-installed return-air filter is removable for cleaning. ECD kits are ideal for replacing an existing air conditioning system or for a new air conditioning installation. The Retrofit Kit includes the ECD self-contained air conditioning unit and digital control with bezel and is intended to replace an older self-contained air conditioner of comparable capacity. Legacy Part Number - 207500310 Features: High-velocity, rotatable blower for horizontal or vertical installation Environmentally friendly R-410A refrigerant Easy to use Dometic Passport I/O digital control and display (P/N 9600005997) Plastic remote electrical box for convenience in mounting Stainless-steel drain pan Pre-installed return-air filter, easily removable and cleanable Small, compact, space-saving design Specifications: Input voltage - 115 V Starting amps - 42 A Fuse Max. / Min. - 25 A/12 A Input frequency 50/60 Hz Refrigerant type - R410A Colling capacity - 10,000 BTU Min. supply duct size - 6" Seawater inlet connection - .625" Dimensions - Height 13.25" x Width 20" x Depth 9.63" In the Box: Self-contained AC unit Digital control w/bezel and 15' cable Instruction manual *Sold as an Individual WARNING: This product can expose you to chemicals including ARSENIC which is known to the State of California to cause cancer or other reproductive harm. For more information go to P65Warnings.ca.gov . This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
- STAINLESS-STEEL DRAIN PAN: The ECD air conditioning kit is built on a high-quality stainless-steel drain pan that is durable and resistant to rust and corrosion.
- CONVENIENT ELECTRICAL BOX: The electrical box can be mounted remotely for added convenience during installation.
- USER-FRIENDLY DISPLAY: The kit includes a compact digital control and display unit that is easy to use and features large buttons and a bright green LED display.
- VERSATILE BLOWER: The ECD air conditioning kit comes with a blower that can be rotated to a horizontal or vertical position, making it easier to connect to the duct and giving you more flexibility in installation.
- ENVIRONMENTALLY FRIENDLY: The Dometic ECD air conditioning kit uses R410A refrigerant, which is more environmentally friendly than traditional refrigerants like R22.
Specifications:
| Materials & Construction | |
| Color | White |
| Material | Not specified |
| Outer Material | Stainless-steel drain pan |
| Product Details | |
| Capacity (Btu) | 10,000 Btu |
| Maximum Air Flow | 235 Cfm |
| Noise Level | 1 dB |
| Refrigerant Type | R410a |
| Sea Water Flow Rate | 4.2 Gpm |
| Seasonal Energy Efficiency Ratio (SEER) | 34.13 |
| Voltage - Input Range (Volts) | 115v |
| Wattage | 120 |
| Sizing & Dimensions | |
| Height | 18 inches |
| Length | 29 inches |
| Product Dimensions | 29"D x 18"W x 18"H |
| Size | 29 x 18 x 18 inches |
| Weight | 69 pounds |
| Width | 18 inches |
| Technical Specifications | |
| Cooling Power | 10000 British Thermal Units |
| Special Features | Led Display |
