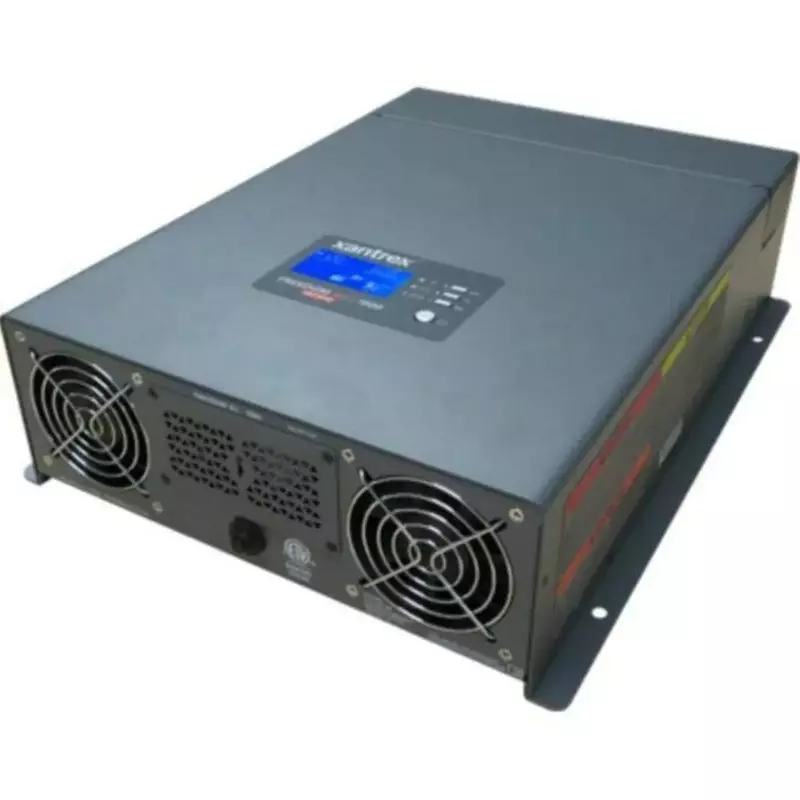

Xantrex Freedom XC 2000 True Sine Wave Inverter/Charger - 12VDC - 120VAC - 2000W/80A
Customize
Freedom XC 2000 True Sine Wave Inverter/Charger - 12VDC - 120VAC - 2000W/80A True sine wave 120 Vac inverter/charger with built-in transfer switch. Designed for recreational and commercial applications. The Freedom XC inverter/charger offers premium performance in a lightweight compact package. It cranks out full output in invert or charge mode from -4°F - 104°F for operation in all climate temperatures. The extended surge rating of the Freedom XC makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze. Inverter Features: Extended Surge Rating: Surges to 2X continuous power for 2 seconds for motor loads True Sine Wave AC Power: For operation of sensitive and motor loads Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis Programmable AC Under-Voltage (85-110VAC) Shutdown: Feature ideal to operate under weak shore power or generator input Built-in 30A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power (shore or generator). The unit also automatically switches from invert mode to charge mode Built-In Charger Features: Power Factor Corrected Multi-Stage Charging: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V Battery Equalization: Maximizes flooded battery life Dead Battery Charging Down to 0 Vdc Power Share: Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov . This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns., Waveform: True Sine Wave , Inverter Output Voltage: 120v , Inverter Input Voltage: 12v , Inverter Surge Rating: 4000w , Outlet Qty: Optional , GFCI: Optional , DC Connection Type: Hardwire , AC Connection Type: Hardwire , Inverter Cont. Output Wattage: 2000w
- Includes single receptacle which can be hardwired or plugged directly into an optional 20A GFCI receptacle (sold separately)
- Built-in 30A AC transfer relay; Automatically switched from invert mode to charge mode on its own
- True sine wave power is compatible with more sensitive electronics and appliances
- 2x the continuous power rating for motor loads
- Dead battery charging as low as 0 VDC
Specifications:
| Product Details | |
| Battery Capacity | 100 Amp Hours |
| Is Discontinued By Manufacturer | No |
| Item model number | 817-2080 |
| Power Source | Battery Powered |
| Recommended Uses For Product | Vehicle |
| Sizing & Dimensions | |
| Height | 8.5 inches |
| Length | 19.5 inches |
| Product Dimensions | 19.5 x 15.4 x 8.5 inches |
| Weight | 16.3 pounds |
| Width | 15.4 inches |
| Technical Specifications | |
| Ac Connection Type | Hardwire |
| Dc Connection Type | Hardwire |
| Gfci | Optional |
| Inverter Cont. Output Wattage | 2000w |
| Inverter Input Voltage | 12v |
| Inverter Output Voltage | 120v |
| Inverter Surge Rating | 4000w |
| Outlet Qty | Optional |
| Wattage | 2000 watts |
| Waveform | True Sine Wave |
