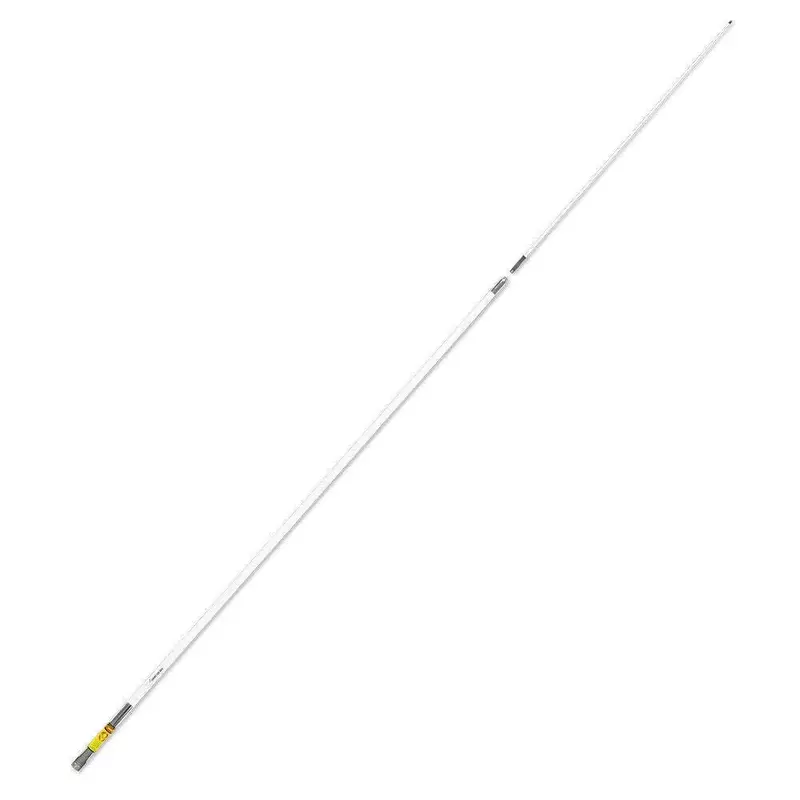

Shakespeare 399-1M 9'6" Classic VHF Antenna
Customize
Style 399-1M VHF 6dB Collinear Phased 5/8-wave with two coaxial chokes to suppress cable radiation. The Style 399-1M is the same as the 399-1, but it has a special sleeve for mast mounting. A professional quality antenna in a compact package. This extra-duty antenna combines strength and performance for use where you really need the efficiency of a large antenna, but don't have room for one. Brass and copper elements. Chrome-plated brass ferrule with standard 1"-14 thread. Aluminum sleeve for mast mounting. Suggested mount: 1-1/4" U-bolts are supplied. The 399-1M can be strapped to a larger mast using steel banding (not supplied). Two sections: Base 75"; Tip 39". UPS shippable. This professional quality antenna combines strength and performance for use where you really need the efficiency of a large antenna, but don’t have room for one. Collinear phased 5/8-wave with two coaxial chokes to suppress cable radiation.
- Brass and copper elements, 2 sections
- Chrome-plated brass ferrule with standard 1in-14 thread
- Includes 15ft RG-58 cable and a PL-259 connector
- Suggested mount: Style 409-R or 410-R Mounting Kit for deck or side mounting (each sold separately)
Specifications:
| Materials & Construction | |
| Color | White |
| Construction | Fiberglass |
| Ferrule Type | Chrome Plated |
| Material | Fiberglass |
| Product Details | |
| Antenna | Radio |
| Included Components | Shakespeare 399-1M 9'6" Classic VHF Antenna |
| Model Name | 399-1M |
| Number of Channels | 1 |
| UPC | 712259392422 719441100032 |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 114 inches |
| Product Dimensions | 114 x 1 x 1 inches |
| Size | One Size |
| Weight | 7 pounds |
| Width | 1 inches |
| Technical Specifications | |
| Antenna Band | Vhf |
| Number of Channels | 1 |
