Shakespeare 5206-N White 8' Marine Antenna
Customize

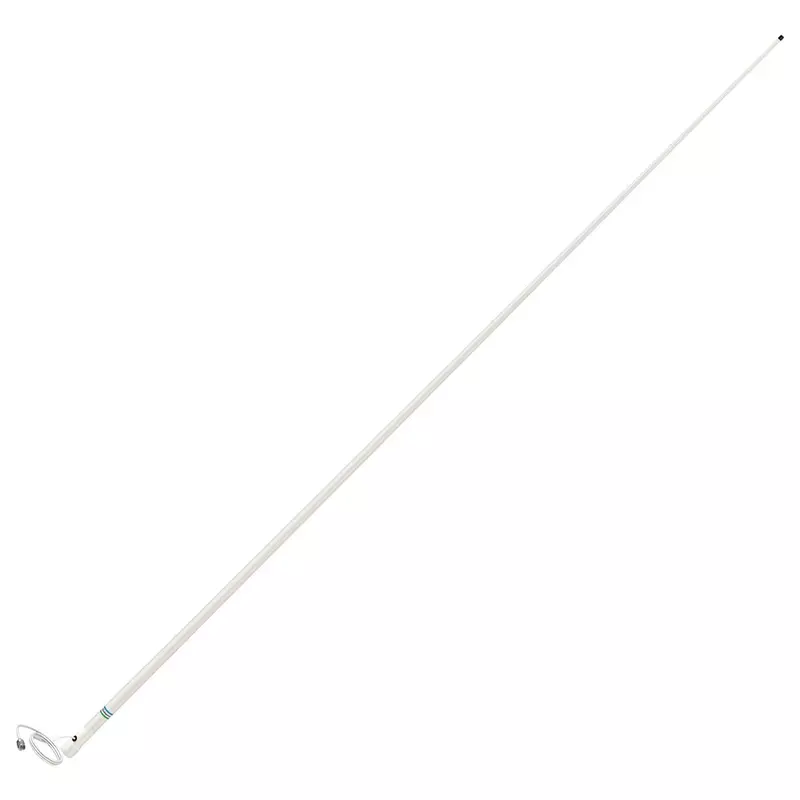

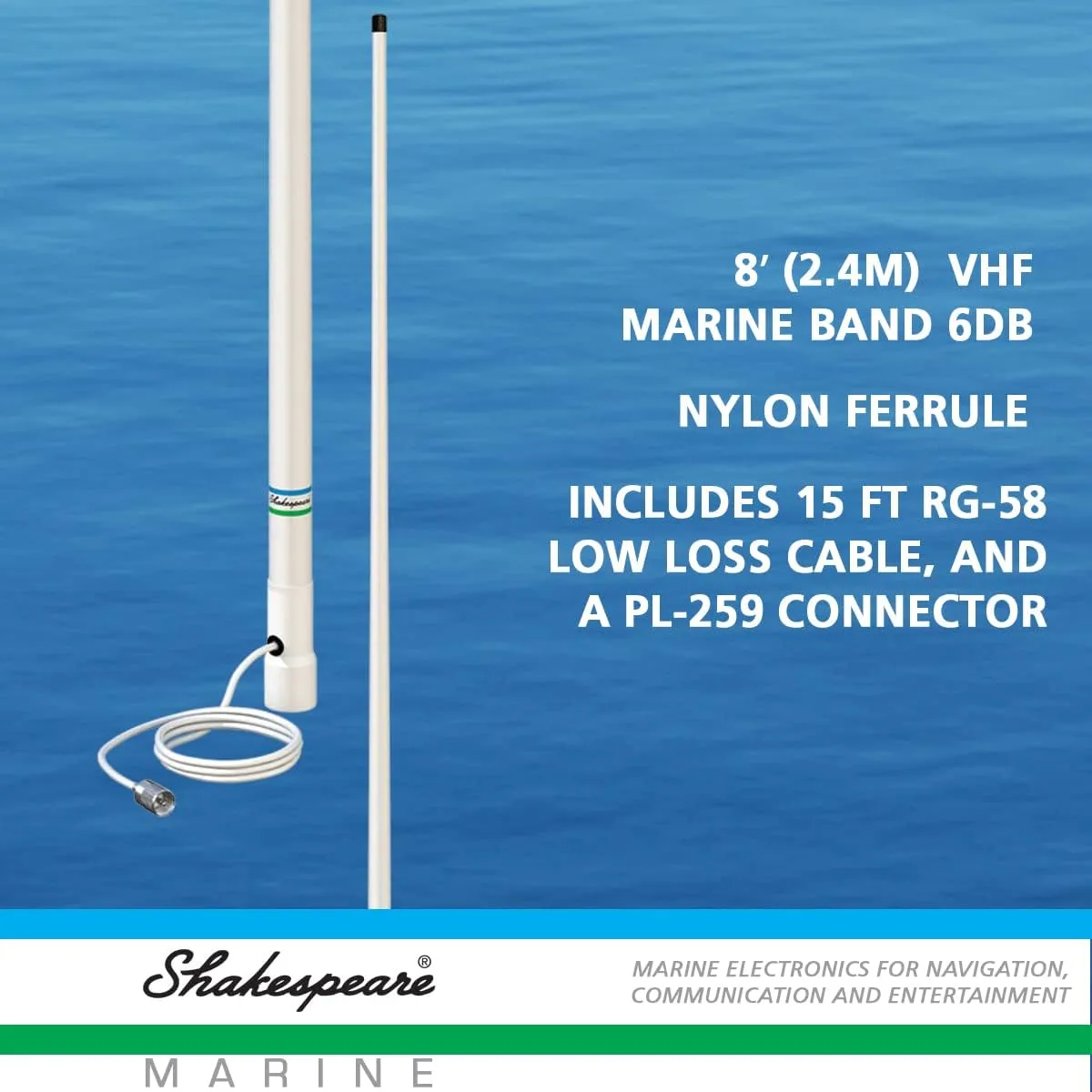

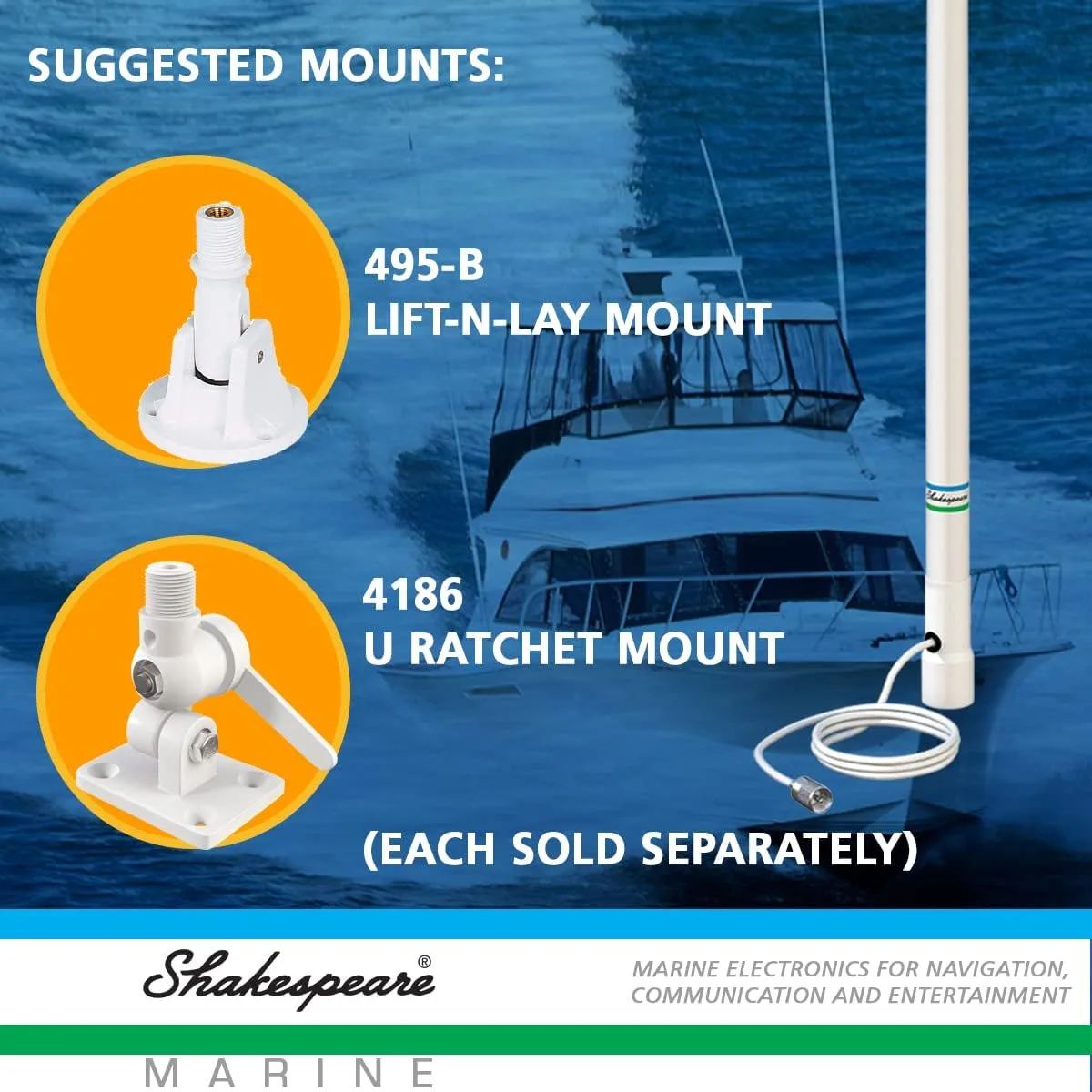

Shakespeare Style 5206-N VHF Marine - Reduced Length Version. 8' LENGTH 6dB END-FED WITH MATCHING STUB. Same as the Style 5206-C, but the 5206-N has a nylon ferrule. An economical and lightweight, self-supporting antenna for good communications where range is not the predominant factor. Quality copper cable elements for good range and efficiency. Nylon ferrule with standard 1"-14 thread. Includes 15' RG-58 cable and a PL-259 connector. Suggested mount: Shakespeare Style 495 Lift-n-Lay Mount or Style 4186 Ratchet Mount. Twin to: Shakespeare Styles 5205 and 5207 CB Marine antennas. One section. Shakespeare Limited Warranty: 2 years. Technical Specifications from ProductDatabase details include: Antenna Band: VHF; Bandwidth: 3 MHz; SWR: 1.5:1 @156.8 MHz; Impedance: 50 Ohms; Gain: 6 dB; Max Input (Watts): 50; Termination: RG-58; Polarization: Vertical; Radiation pattern: Omni-directional. Rainforest marketplace data confirms Product Dimensions and weight for shipping: 99 x 2 x 2 inches; Item Weight: 3 pounds. Country of Origin: China.
- GREAT PRODUCT
Specifications:
| Materials & Construction | |
| Color | White |
| Construction | Fiberglass |
| Ferrule Type | Nylon |
| Material | Fiberglass |
| Product Details | |
| Antenna | Radio |
| Antenna Band | Vhf |
| Global Trade Identification Number | 00719441100186 |
| Number of Channels | 1 |
| Number of Items | 1 |
| UPC | 744288652611 195776832877 031112509617 719441100186 |
| Sizing & Dimensions | |
| Height | 2 inches |

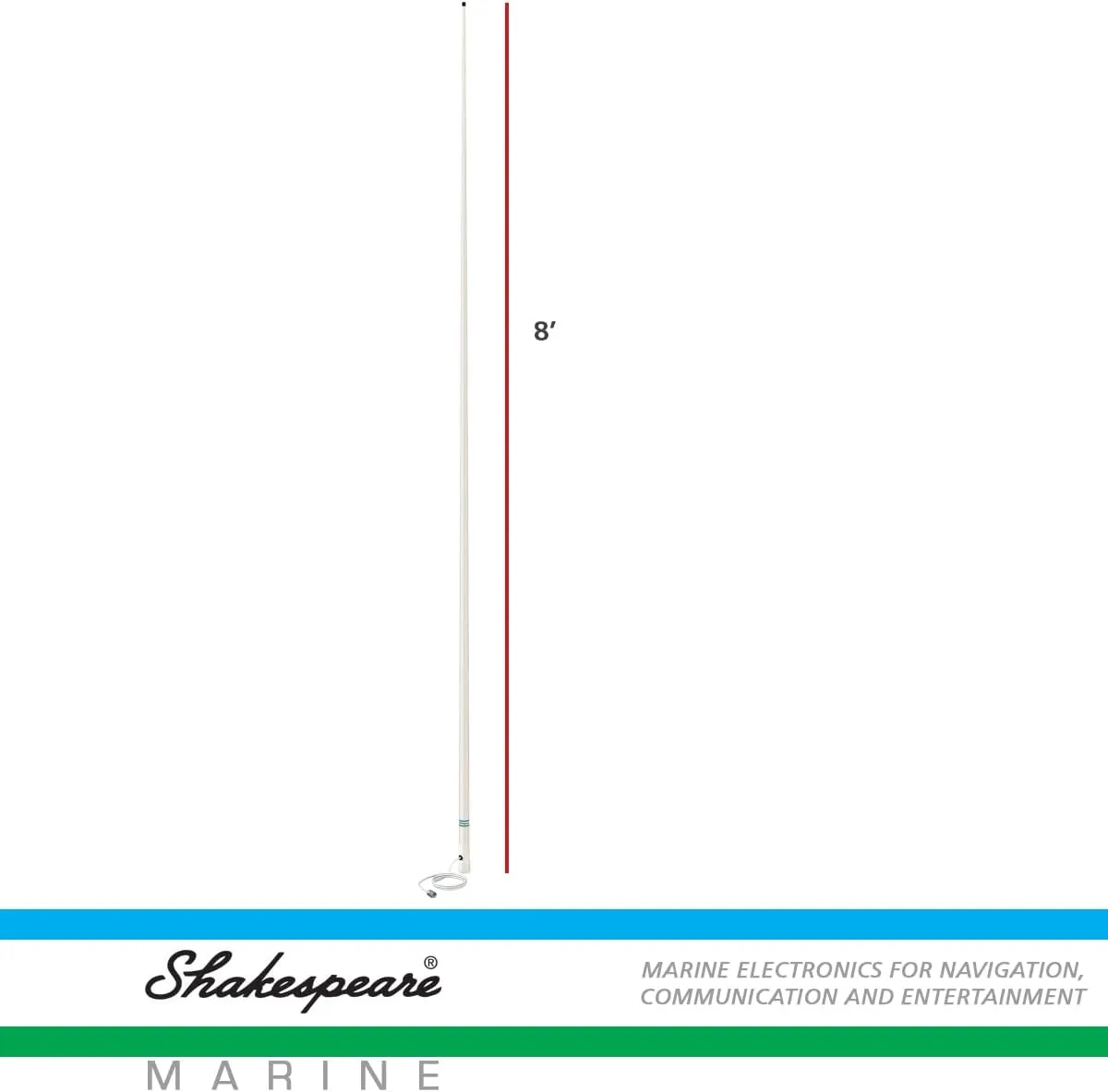

| Length | 99 inches |
| Product Dimensions | 99 x 2 x 2 inches |
| Size | 8 ft |
| Weight | 3 pounds |
| Width | 2 inches |
| Technical Specifications | |
| Global Trade Identification Number | 00719441100186 |
| Number of Channels | 1 |
