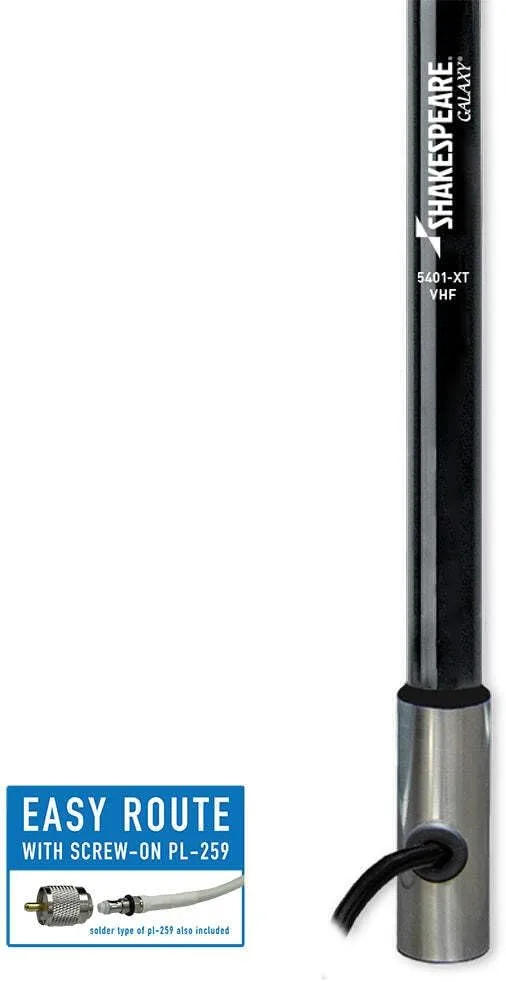

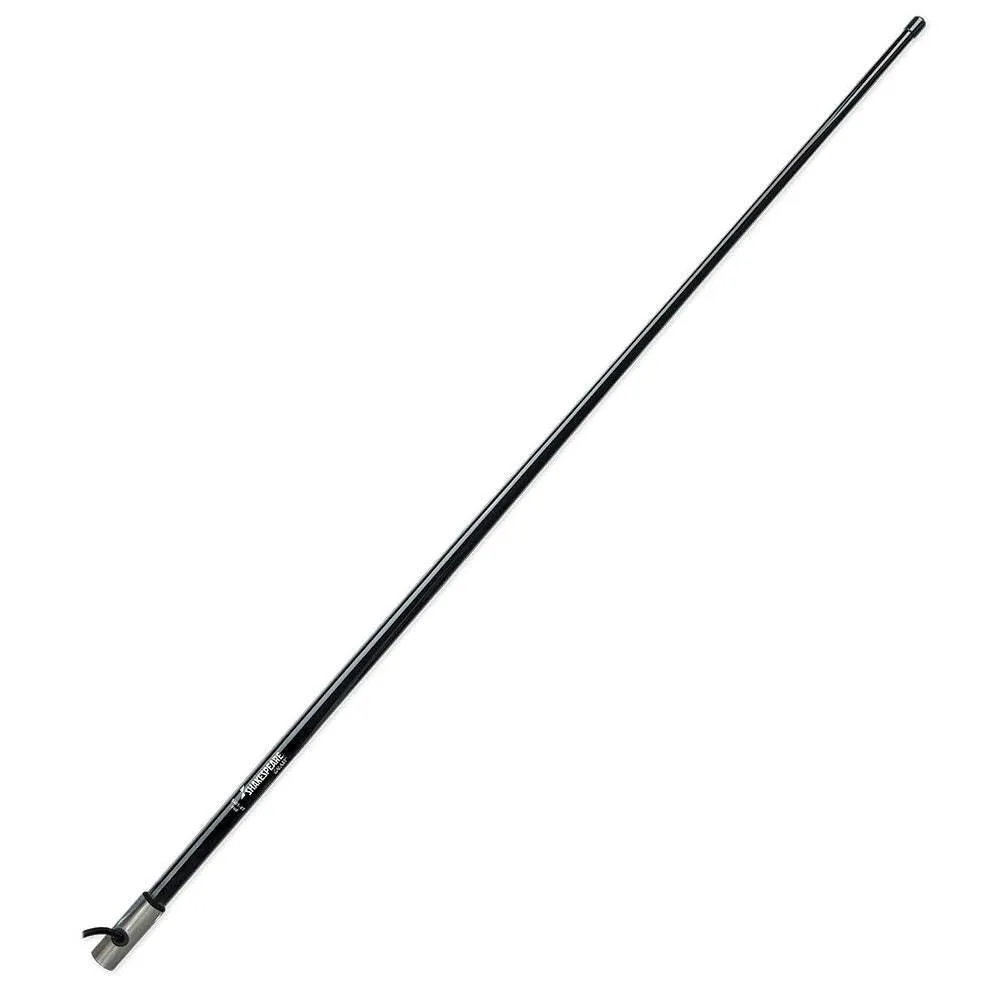

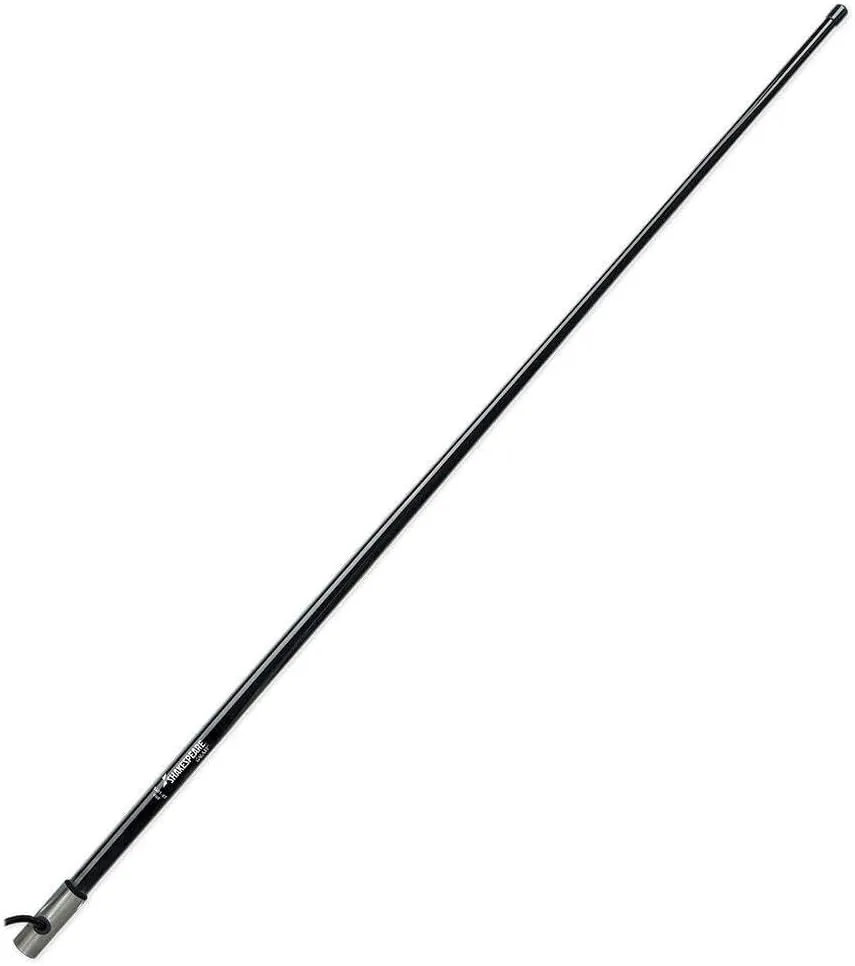

Shakespeare 5401-XT Galaxy 4' Antenna - 3dB Gain
Customize
5401-XT Galaxy 4' Antenna - 3dB Gain This antenna is the same as the Style 5400-XT, but in an exclusive black Galaxy finish. It's an outstanding, 4' antenna of heavy-duty construction for general purpose communications. Its at home on T-tops, hard-tops and other positions aloft, where its small size can deliver maximum range. Features: Center-fed 1/2 wave coaxial sleeve Brass and copper elements for maximum range Stainless steel ferrule with standard 1"-14 thread Includes 20' RG-8/X cable and a PL-259 connector Suggested mount: Shakespeare Style 4187 Ratchet Mount One section Shakespeare Limited Warranty: 5 years Includes FME Cables Technical Specifications: Frequency: VHF Marine Band Bandwidth: 5 MHz within 2.0:1 VSWR SWR: Nominally 1.5:1 at 156.8 MHz Gain: 3 dB Max Input (Watts): 50 watts Height (feet): 4, Antenna Band: VHF , Color: Black , Construction: Fiberglass , Ferrule Type: Stainless Steel , Length (Inches): 48"
- Center-fed 1/2 wave coaxial
- Brass and copper elements to maximum range
- Stainless steel ferrule with standard 1 inch to 14 thread
- Includes 20 feet cable and a connector
- Suggested mount shakespeare style 4187
Materials & Construction
- Color:Black
- Construction:Fiberglass
Product Details
- Antenna:Radio
- Antenna Band:Vhf
- Country of Origin:China
- Ferrule Type:Stainless Steel
- Impedance:5E+1 Ohm
- Item model number:5401-XT
- Maximum Range:20 Feet, 15 Feet
- Model:Shakespeare 5401-XT Galaxy Black 4' Marine Antenna
- Number of Channels:1
- Number of Items:1
Sizing & Dimensions
- Height:55 inches
- Length:2.99 inches
- Product Dimensions:2.99 x 2.99 x 55 inches
- Size:48 inches
- Weight:0.141 ounces
- Width:2.99 inches
Technical Specifications
- Bandwidth:5 MHz within 2.0:1 VSWR
- Gain:3 dB
