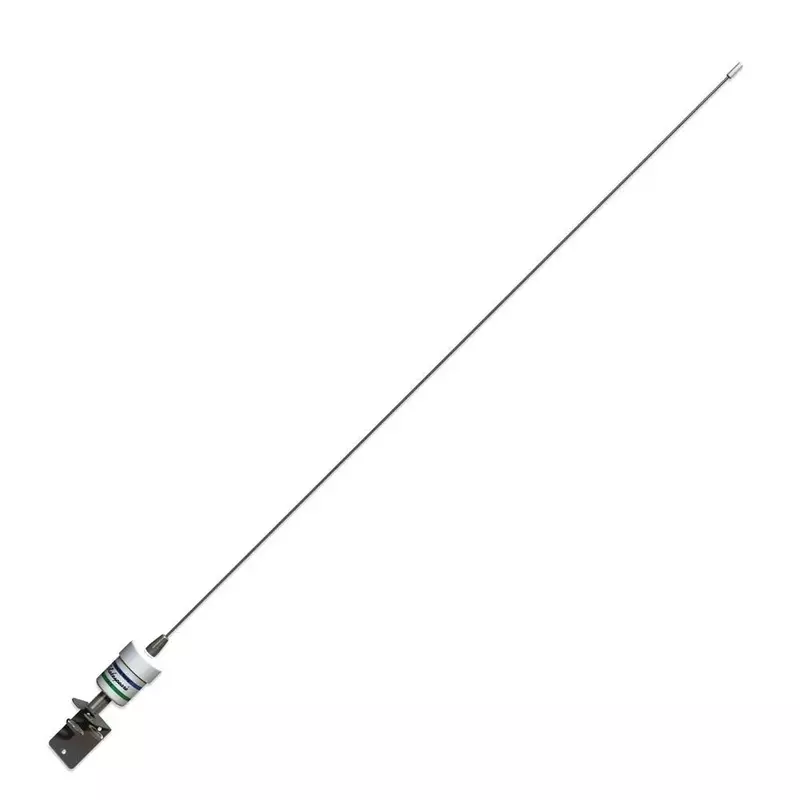

Shakespeare AIS 5215-AIS 36" Squatty Body Antenna f/Sailboats
Customize
Shakespeare Squatty Body Style 5215-AIS 3' (0.9m) VHF Marine Band 3dB End-fed 1/2-wave stainless steel whip Sailboat owners will love this version of their longtime favorite, our Style 5215. Its the same light weight, low-profile, stainless steel antenna, specially designed for masthead mounting and built with extra bandwidth for all popular AIS transceivers. Sealed, tin-plated copper wire coil Designed specifically for AIS transceivers SO-239 connector Stainless steel L-shaped bracket supplied for mounting One section For AIS applications Best applications include: Sailboats Shakespeare 5215-AIS Squatty Body Specifications Band:VHF Marine Band Antenna Gain:3dB Max. Input Power:50 watts SWR:nominally 1.5:1 at 162 MHz Bandwidth:7 MHz within 2.0:1 VSWR Ferrule:L-bracket and retaining nut, SO-239 connector Polarity:Vertical Impedance:50 Ohms DC Ground:No DC Ground - The antenna will read open on continuity test. Shakespeare Limited Warranty:2 years, Antenna Band: AIS , Length (Inches): 36"
- Manufactured in United States
- Sailboat antenna SS low profile 3dB
- Shakespeare 5215-AIS 3' vhf ais
Specifications:
| Materials & Construction | |
| Color | Multi |
| Material | Stainless Steel |
| Product Details | |
| Antenna | AIS |
| Global Trade Identification Number | 00719441100810 |
| Maximum Range | 3 Feet |
| Number of Items | 1 |
| UPC | 066511717929 719441100810 587973411120 |
| Sizing & Dimensions | |
| Length | 36 inches |
| Package Weight | 2.0000 |
| Size | 36" |
| Technical Specifications | |
| Antenna Gain | 3dB |
| Band | VHF Marine Band |
| Bandwidth | 7 MHz within 2.0:1 VSWR |
| DC Ground | No DC Ground - The antenna will read open on continuity test. |
| Ferrule | L-bracket and retaining nut, SO-239 connector |
| Impedance | 50 Ohms |
| Max. Input Power | 50 watts |
| Polarity | Vertical |
| Shakespeare Limited Warranty | 2 years |
| SWR | nominally 1.5:1 at 162 MHz |
