Shakespeare ART-3 Antenna/Radio Tester
Customize

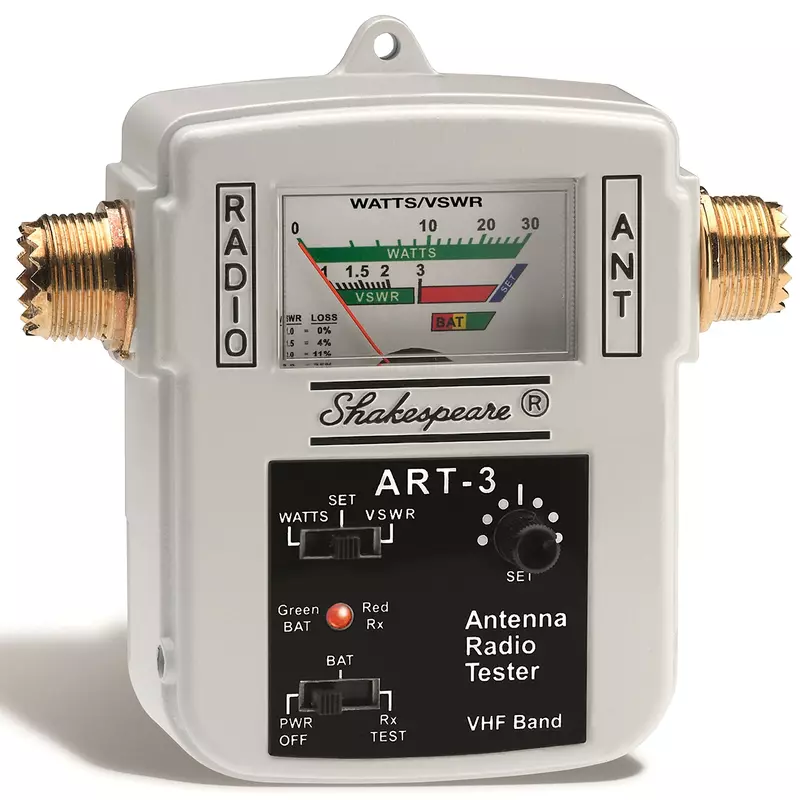

Shakespeare ART-3 Antenna Radio Tester No need to call for a radio check when you have this compact, easy to use unit on-board. Unlike other meters in its class, the ART-3 tests receiver function as well as output power and VSWR (antenna efficiency). It is powered by an internal battery or can be connected to ship's 12 VDC with the supplied power cable. Battery level can be checked at the flip of a switch. The ART-3 provides: Frequency Range: 155-158 MHz; RF Power Scale: 0 to 30 watts; Impedance: 50 ohms; Accuracy: 10%; Connectors: SO-239; Signal Generator: 3 KHz Deviation; Tone: 1000 Hz; RF Level: -115 dBM (approx.). Die-cast aluminum construction. Style 4079 one-meter cable available (sold separately) to connect the ART-2 or ART-3 to your VHF Radio. Ideal compact tester for marine VHF radios and general antenna diagnostics.
- ART-3 tests receiver function as well as output power and VSWR (antenna efficiency)
- Frequency Range: 155-158 MHz
- Signal Generator: 3 KHz Deviation
- Die-cast aluminum construction
- Style 4079 one-meter cable available (sold separately) to connect the ART-2 or ART-3 to your VHF Radio, or for the Style CS-2 Switch
Specifications:
| Materials & Construction | |
| Color | White |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Included Components | Great Product |
| Model Name | ART-3 |
| Number of Items | 1 |
| Size | No Size |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 8 inches |
| Product Dimensions | 8 x 5 x 1 inches |
| Size | No Size |
| Weight | 7.2 ounces |
| Width | 5 inches |
| Technical Specifications | |
| Item Package Dimensions L x W x H | 5.04 x 4.96 x 1.34 inches |
